• Page 1: Product Description

  HUAWEI B310s-22 LTE CPE V200R001 Product Description Issue Date 2015-03-20 HUAWEI TECHNOLOGIES CO., LTD.

• Page 2
  Notice The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided «AS IS»…

• Page 3: About This Document

  The document is an invitation to offer but not an offer. It is intended to describe the general features and functions of products. The features and functions of certain products vary with requirements of customers. History Issue Date Details 2015-03-20 Initial official release. Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 4: Table Of Contents

  5 System Structure ……………………. 14 5.1 System Architecture Diagram ……………………….. 14 5.2 Functional Modules …………………………14 6 Packing List ……………………..15 A Acronyms and Abbreviations ………………..16 Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 5: Product Overview

  Product Description 1 Product Overview Product Overview The HUAWEI B310s-22 LTE CPE (B310s-22 for short) is a wireless gateway that integrates LTE and high-speed Ethernet uplink access, which provides users with flexible and diversified data access and voice services. The frequency bands of the product are as follows.

• Page 6

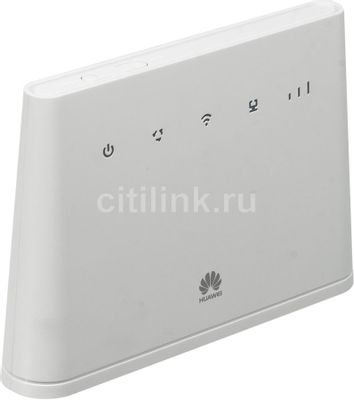

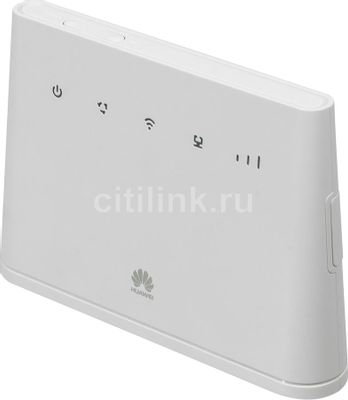

  HUAWEI B310s-22 LTE CPE Product Description 1 Product Overview Figure 1-1 B310s-22 appearance Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 7: Features

  HUAWEI B310s-22 LTE CPE Product Description 2 Features Features The B310s-22 mainly supports the following features: Access to LTE/DC-HSPA+/HSPA+/HSPA/WCDMA/EDGE/GPRS/GSM wireless  networks Access to Gigabit Ethernet networks  High-speed data access:  LTE FDD: DL 150 Mbps, UL 50 Mbps −…

• Page 8: Technical Specifications

  HUAWEI B310s-22 LTE CPE Product Description 3 Technical Specifications Technical Specifications 3.1 Hardware Specifications Table 3-1 Technical specifications of the B310s-22 main unit Item Description Technical Mobile Network:  standard LTE/DC-HSPA+/HSPA+/HSPA/WCDMA/EDGE/ GPRS/GSM Gigabit Ethernet: IEEE 802.3/802.3u  IEEE 802.3/802.3u WLAN IEEE 802.11b/g/n…

• Page 9
  16 dBm(+3 dB/-3 dB)@11 Mbps 802.11g 17 dBm(+3 dB/-3 dB)@6 Mbps  17 dBm(+3 dB/-3 dB)@54 Mbps  802.11n 17 dBm(+3 dB/-3 dB)@MCS0  17 dBm(+3 dB/-3 dB)@MCS7  Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 10: Antenna Specifications

  Table 3-2 LTE/UMTS/GSM primary antenna specifications Item Description Frequency 703 MHz — 960 MHz  1710 MHz — 2690 MHz  Input 50 Ω impedance Standing wave < 3 ratio Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 11
  2.400 GHz — 2.4835 GHz Input 50 Ω impedance Standing wave < 2 ratio Efficiency ≥ -3 dB H side gain ≥ 1 dBi (horizontal level) Polarization Linear polarization Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 12: Software Specifications

   NAT, NAPT (compliant with RFC2663, RFC3022  and RFC3027) CONE NAT  Fragment message identification for normal NAT   ICMP DNS Relay IPv6/IPv4 dual stack Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 13
  Supports limit of access users (Access from  up to 32 users) Huawei HiLink View service provider’s name, the roaming status and signal strength. View the data traffic usage and SMS. Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
• Page 14
  IE 10.0 and above (Windows  Firefox 24.0 and above  Safari 6.0 and above (MAC)  Opera 12.0 and above  Chrome 27.0 and above  Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 15: Services And Applications

  4.1 Data Services The B310s-22 can access the Internet through mobile networks, and Ethernet networks. By connecting to the B310s-22 using Wi-Fi or a network cable, users can get access to high-speed Internet services and establish a local area network (LAN).

• Page 16: Accessing The Internet Through An Ethernet Network

  Figure 4-2 Accessing the Internet through an Ethernet network 4.2 Voice Services The B310s-22 provides one telephone port that can be connected to telephones for calling. Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 17: Sms

  You can manage messages through the Web page, such as inbox, outbox, draft. 4.4 Security Service The B310s-22 supports various security features, such as the firewall, user authentication, and PIN protection, protect users against security threats from the Internet when users are using network services.

• Page 18: System Structure

  Web management: You can configure, modify and query the configuration information of  the B310s-22. Routing and NAT: High-speed routing capability. With the built-in NAT, the B310s-22,  together with wireless broadband packet-based network devices, can provide flexible broadband access solutions and networking schemes.

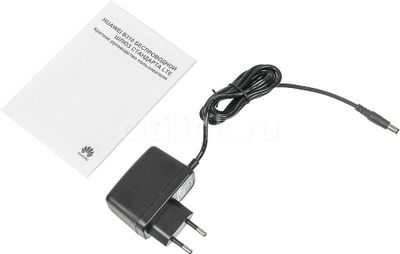

• Page 19: Packing List

  Standard Quick Start Standard Ethernet cable Standard Warranty card Optional Phone cable Optional HUAWEI B310s-22 wireless gateway also provide external antenna as optional for you to choose. Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 20: A Acronyms And Abbreviations

  HSPA High Speed Packet Access HSPA+ High Speed Packet Access Plus HSDPA High Speed Downlink Packet Access HSUPA High Speed Uplink Packet Access High Throughput Internet Protocol Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.

• Page 21
  Universal Mobile Telecommunications System Uplink VoIP Voice over Internet Protocol Wide Area Network WLAN Wireless Local Area Network WCDMA Wideband Code Division Multiple Access Wi-Fi Wireless Fidelity Issue 01 (2015-03-20) Huawei Proprietary and Confidential Copyright © Huawei Technologies Co., Ltd.
