True Wireless Earbuds with Active Noise Cancellation

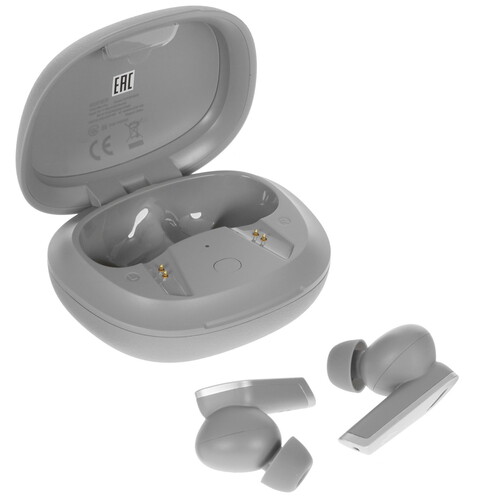

EN 1. Product Description and Accessories

Button

Accessories:

Ear tips x 3 pairs, Storage bag x 1, Charging cable x 1

Note:

•

There are different size of ear tips attached in the package, please select the

suitable ones to wear.

•

Images are for illustrative purposes only and may differ from the actual

product.

2. Power on/o

The earbuds will power on

●

when the case is opened.

Green light is steady lit once

3. Charge

Charge the earbuds

●

•

Place the earbuds in the case and close the case for charging.

Charge the charging case

●

•

Connect the included charging cable to the case for charging.

•

Indicator steady lit = charging

Indicator off = fully charged

Battery level indicator on the charging case

●

•

Open/close the case to show the case’s battery level;

if indicator flashes three times: full battery level

if indicator flashes twice: medium battery level

if indicator flashes once: low battery level

Warning: The rechargeable batteries that provide power for this product must

be disposed properly for recycling. Do not dispose of batteries in fire to prevent

an explosion.

4. User guide

Bluetooth connection

●

•

Place the earbuds in the case, and press

and hold the button on the case for

around 3 seconds to enter Bluetooth pairing.

•

Set mobile phone to search for and

connect to «EDIFIER TWS NB2 Pro».

Interconnection of the left and right earbuds/clear pairing

●

records

Place the earbuds in the case, and double click the button on the case (the white

light flashing rapidly) to clear pairing records and enter the TWS pairing of the left

and right earbuds. When successful, the earbuds will automatically enter Bluetooth

pairing state, and the white and green lights will flash rapidly.

Functional operation

●

Accept/end a call:

double click

Noise reduction mode switch:

double click

Sound effect mode switch:

Note:

•

Noise reduction mode switch: noise reduction mode(effective when both

earbuds are used), ambient sound mode, and normal mode.

•

Sound effect mode switch: standard mode, spatial audio mode, and game mode.

In-ear detection function

●

•

Music control: Music will be played/paused when one earbud is inserted or

removed.

•

Noise reduction control: In noise reduction mode, the noise reduction will be

enabled when both earbuds are inserted, and will be disabled when one earbud

is removed.

•

You can also set or close the in-ear detection function via the EDIFIER CONNECT

APP.

5. FAQs

When charging the charging case, the indicator is o .

•

Please ensure the charging case is correctly connected with power source.

No sound

•

Check if the earbuds are operating.

•

Check if the earbuds volume are at an appropriate level.

•

Check if the earbuds are correctly connected with mobile phone.

•

Check if the earbuds are operating within a normal working range.

The call quality of the earbuds are not good.

•

Check if mobile phone is in an area with strong signal.

•

Please ensure the earbuds are within effective distance (10m) and no

obstacle between the earbuds and mobile phone.

When playing music, cannot control pause/play/next track via the earbuds.

•

Please ensure the paired device support AVRCP (Audio/Video Remote

Control Profile) profile.

The tapping function is too sensitive or not sensitive.

•

Please ensure you are tapping in the effective tap zone with a moderate

intensity or at an appropriate angle. You can also adjust to a desired tapping

sensitivity via the EDIFIER CONNECT APP.

After one earbud alone is connected to another mobile phone, there is no

sound from the other earbud when used again.

•

When one earbud alone is connected to another mobile phone, the

interconnection between the left and right earbuds may have been

disconnected. To restore the two earbuds mode, double click the pairing

button on the case to resume interconnection between the left and right

earbuds. Then try again.

There is a delay problem when playing game.

•

Please triple click the left earbud to switch to game mode and then start

playing game.

In-ear detection function is not sensitive or too sensitive.

•

To ensure every wearing of the earbuds by user can be recognized, the

recognition of in-ear detection have been slightly raised. If not used, please

place the earbuds back into the case for charging and storage; it is better

not to place the earbuds alone in the pocket or on the desk for long periods

of time, so as to avoid interference with the in-ear detection function or

missing of the earbuds. You can also set the automatic in-ear detection

function to other functions or close it via the EDIFIER CONNECT APP.

6. Maintenance

•

If it is not used for long periods of time, please charge the product with

lithium battery every three months.

•

Keep the product away from humid places to avoid affecting internal circuit.

Do not use the product during intense exercise or with much sweat to

prevent sweat from dropping into the product to make damage.

•

Do not put the product in places exposed to sun or with high temperature.

High temperature will shorten service life of electronic components, damage

battery and make plastic components deformed.

•

Do not put the product in cold places to avoid damaging internal circuit

board.

•

Do not dismantle the product. Non-professional personnel may damage the

product.

•

Do not drop, strongly vibrate, strike the product with hard object to avoid

damaging internal circuit.

•

Do not use drastic chemicals or cleaner to clean the product.

•

Do not use sharp objects to scratch product surface to avoid damaging shell

and affecting facade.

Model: EDF200026

Edif ier International Limited

P.O. Box 6264

General Post Off ice

Hong Kong

www.edif ier.com

2021 Edif ier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information

contained herein may be subject to change from time to time without

prior notice.

Products of EDIFIER will be customized for different applications. Pictures

and illustrations shown on this manual may be slightly different from

actual product. If any difference is found, the actual product prevails.

TWS NB2 Pro

www.edifier.com

triple click

The earbuds will power o

●

when the case is closed.

Input: 5V

60mA (earbuds)

5V

•

Battery level indicator (next to the

charging port)

EDIFIER TWS NB2 Pro

•

Bluetooth pairing: the white

and green lights flash rapidly.

•

After pairing is successful, the

green light will flash slowly.

Tap zone

Tap zone

1A (charging case)

Accept/end a call:

double click

Pause/play:

double click

Next track:

triple click

The Edifier TWS NB2 Pro earbuds come with hybrid active noise canceling technology, three-dimensional audio technology, app support, Bluetooth 5.0 and a working range of 10 meters, support for the SBC audio codec, the IPX4 sweat and dust-proof certification, and much more. Learn how to use these earbuds using this manual!

What’s Inside

Edifier TWS NB2 Pro | How To Pair?

How to Pair The Earbuds?

To iOS and Android phones

Step 1: Open the lid of the charging case. After that, a green light turns on for one second on the case, and the earbuds will turn on automatically.

Step 2: Press and hold the button on the inside of the charging case for about 3 seconds. When a white and green light starts flashing quickly, the earbuds enter pairing mode and will be ready to pair with any device.

Step 3: Turn on Bluetooth on the desired device.

Step 4: Go to the device’s Bluetooth settings.

Step 5: Select “EDIFIER TWS NB2 Pro“. If a password is needed, type “0000”. After that, a green light will start flashing slowly, and the pairing will be done.

To PC (Windows)

Step 1: Turn on Bluetooth on the desired device.

Step 2: Go to the settings.

Step 3: Go to “Bluetooth and other devices”.

Step 4: Click on “Add device”.

Step 5: Open the lid of the charging case. After that, a green light turns on for one second on the case, and the earbuds will turn on automatically.

Step 6: Press and hold the button on the inside of the charging case for about 3 seconds. When a white and green light starts flashing quickly, the earbuds enter pairing mode and will be ready to pair with any device.

Step 7: Select “EDIFIER TWS NB2 Pro“. If a password is needed, type “0000”. After that, a green light will start flashing slowly, and the pairing will be done.

Pairing The Earbuds To Each Other

If the earbuds don’t pair with each other automatically after the charging case is open, then follow the following instructions:

Step 1: Place the earbuds into the charging case and keep its lid open.

Step 2: Press the button on the inside of the charging case two times. A white light will start flashing quickly.

When a white and green light starts flashing quickly, the process will be done.

How to Wear?

Step 1: Take both earbuds out of the charging case.

Step 2: Identify the left and right earbuds.

Step 3: Choose the ear tips that best suit your ears.

Step 4: Insert the headphones into the inner canal of the ears.

Step 5: Rotate for the best possible comfort and best fit, and make sure that the microphone is pointing to the mouth.

How to Turn On and Off?

Turn on: Open the lid of the charging case. After that, a green light turns on for one second on the case, and the earbuds will turn on automatically.

Turn off: Place the earbuds into the charging case and close its lid. After that, the earbuds will turn on automatically.

How to Control? / How to Operate? – Instructions

• Play or pause a song: Press the multifunction touch sensor on the right earbud two times.
• Play the next song: Press the multifunction touch sensor on the right earbud three times.
• Answer an incoming call: Press the multifunction touch sensor on any of the earbuds two times.
• End a current call: Press the multifunction touch sensor on any of the earbuds two times.
• Activate and change the ANC mode: Press the multifunction touch sensor on any of the earbuds two times.
• Activate or deactivate the sound effect mode: Press the multifunction touch sensor on the left earbud three times.

How to Activate The Mono Mode?

To activate or deactivate the mono mode in these earbuds, all you have to do is to pair the earbuds to the device and take out one of the earbuds from the charging case. It will start working by itself.

How to Charge The Earbuds?

Earbuds

To charge the earbuds, all you have to do is to place them into the charging case and close the lid. The earbuds will start charging automatically.

Charging case

To charge the charging case, all you have to do is to connect the case to a USB charger or charging port with the included USB-A to C cable. It will start charging automatically.

How to Reset The Earbuds?

Step 1: Delete all pairing information related to the “EDIFIER TWS NB2 Pro” earbuds on the connected device.

Step 2: Place the earbuds into the charging case and keep its lid open.

Step 3: Press the button on the inside of the charging case two times. A white light will start flashing quickly.

When a white and green light starts flashing quickly, the process will be done.

What Do The Lights Mean?

Earbuds

• A white and green light will start flashing quickly: The earbuds will be ready to pair with any device.
• A green light flashing slowly: The earbuds are now connected to the device.
• A white light flashing quickly while resetting: The earbuds are resetting.

Charging case

• A green light turns on for one second: The earbuds turn on.
• A light is on while charging: The case is charging.
• Said light turns off while charging: The case is fully charged.
• A light is on while on the case: The earbuds are charging.
• Said light turns off while on the case: The earbuds are fully charged.
• The light flashes one time when the lid is open/closed: The case has a low battery level.
• The light flashes two times when the lid is open/closed: The case has a medium battery level.
• The light flashes three times when the lid is open/closed: The case has a full battery level.

A Guide To Edifier TWS NB2 Pro APP

The Edifier TWS NB2 Pro can be used with an application, called Edifier Connect. This application is available for iOS and Android devices.

• First page: On the first page, not only is the battery percentage that the earbuds have but there is also the ability to turn ANC and ambient sound mode on or off. Likewise, there are also the settings, where there is information about the earbuds, as well as some options for use and user manuals.
• Second page: On the second page, you will find information about the different products launched by Edifier, as well as blogs, news, and support in case of problems with the devices.
• Third page: On the third page, you will find general information about the application, as well as the devices with which it is compatible, FAQs, and more.

Some Common Problems & Troubleshooting

Left / Right / One side of the earbuds has stopped working

If this happens, it may be because it is low on battery or it did not connect correctly with the device. To fix this, you can do the following:

1. Try charging the earbud that is not working or both, placing them in the charging case.

See also

2. Try factory resetting the earbuds.

3. Check if the earbuds are operating within a normal working range

If that doesn’t work, the earbud is probably faulty, and I can go for a refund or replacement of it.

Left / Right / One side of the earbuds has a low volume

If this happens, it may be because the earbuds are dirty or the volume is set low. To fix this, you can do the following:

1. Try cleaning the earbud using a cotton swab or carefully clean the mesh with a pin.

2. Try factory resetting the earbuds.

The microphone is not working

If this happens, it can be because the microphone is muted, or the earbuds are badly positioned. To fix this, you can do the following:

If the microphone is muted, check the device microphone volume. If that doesn’t work, that means that there might be a defect in the earbud, so try replacing them or get a refund.

The earbuds are not connecting to Windows/laptop/PC

If the earbuds are earbuds not connecting, it can be because the Bluetooth on the computer has a pairing problem. To fix this, you can do the following:

1. Try disabling Bluetooth from nearby devices >>> then activate the pairing mode of the earbuds, pair and connect earbuds from Settings >>> Bluetooth & other devices >>> Add a new device >>>> select Bluetooth.

2. Try uninstalling and reinstalling the Bluetooth driver, or updating the Bluetooth driver. All can be done in Manage >>> Device Manager, reset earbuds (if available), and then repeat the step.

3. Try resetting the earbuds.

FAQs

Are the Edifier TWS NB2 Pro waterproof?

No, the Edifier TWS NB2 Pro are not waterproof (IPX6 and up). They have a rating of IPX4, which means they’re splash and sweat-resistant.

Do the Edifier TWS NB2 Pro have a microphone?

Yes, the earbuds come with integrated microphones.

Do the Edifier TWS NB2 Pro have a low latency/gaming mode?

Yes. These earbuds have a low latency/gaming mode.

Can the Edifier TWS NB2 Pro connect to PCs and Laptops?

Yes, these earbuds can connect to PCs, laptops, and even tablets.

Are the Edifier TWS NB2 Pro noise-canceling?

Yes. These earbuds come with noise-cancellation technology.

How to know when the Edifier TWS NB2 Pro are fully charged?

When the earbuds are charging, an orange light is on the case. When fully charged, said light turns off.

We hope you now know how to operate the earphone from the above Edifier TWS NB2 Pro manual. Want to know anything about the earphones? Do not hesitate to ask in the comments section.

EN

1. Product Description and Accessories

2. Power on/o

3. Charge

4. User guide

5. FAQs

6. Maintenance

Input: 5V 60mA (earbuds)

5V 1A (charging case)

Note:

•

There are different size of ear tips attached in the package, please select the suitable ones to wear.

•

Images are for illustrative purposes only and may differ from the actual product.

Warning: The rechargeable batteries that provide power for this product must

be disposed properly for recycling. Do not dispose of batteries in fire to prevent

an explosion.

• If it is not used for long periods of time, please charge the product with

lithium battery every three months.

• Keep the product away from humid places to avoid affecting internal circuit.

Do not use the product during intense exercise or with much sweat to

prevent sweat from dropping into the product to make damage.

• Do not put the product in places exposed to sun or with high temperature.

High temperature will shorten service life of electronic components, damage

battery and make plastic components deformed.

• Do not put the product in cold places to avoid damaging internal circuit

board.

• Do not dismantle the product. Non-professional personnel may damage the

product.

• Do not drop, strongly vibrate, strike the product with hard object to avoid

damaging internal circuit.

• Do not use drastic chemicals or cleaner to clean the product.

• Do not use sharp objects to scratch product surface to avoid damaging shell

and affecting facade.

When charging the charging case, the indicator is o.

• Please ensure the charging case is correctly connected with power source.

No sound

• Check if the earbuds are operating.

• Check if the earbuds volume are at an appropriate level.

• Check if the earbuds are correctly connected with mobile phone.

• Check if the earbuds are operating within a normal working range.

The call quality of the earbuds are not good.

• Check if mobile phone is in an area with strong signal.

• Please ensure the earbuds are within effective distance (10m) and no

obstacle between the earbuds and mobile phone.

When playing music, cannot control pause/play/next track via the earbuds.

• Please ensure the paired device support AVRCP (Audio/Video Remote

Control Profile) profile.

The tapping function is too sensitive or not sensitive.

• Please ensure you are tapping in the effective tap zone with a moderate

intensity or at an appropriate angle. You can also adjust to a desired tapping

sensitivity via the EDIFIER CONNECT APP.

After one earbud alone is connected to another mobile phone, there is no

sound from the other earbud when used again.

• When one earbud alone is connected to another mobile phone, the

interconnection between the left and right earbuds may have been

disconnected. To restore the two earbuds mode, double click the pairing

button on the case to resume interconnection between the left and right

earbuds. Then try again.

There is a delay problem when playing game.

• Please triple click the left earbud to switch to game mode and then start

playing game.

In-ear detection function is not sensitive or too sensitive.

• To ensure every wearing of the earbuds by user can be recognized, the

recognition of in-ear detection have been slightly raised. If not used, please

place the earbuds back into the case for charging and storage; it is better

not to place the earbuds alone in the pocket or on the desk for long periods

of time, so as to avoid interference with the in-ear detection function or

missing of the earbuds. You can also set the automatic in-ear detection

function to other functions or close it via the EDIFIER CONNECT APP.

True Wireless Earbuds with Active Noise Cancellation

www.edifier.com

● The earbuds will power on

when the case is opened.

● The earbuds will power o

when the case is closed.

Green light is steady lit once

● Bluetooth connection

•

Place the earbuds in the case, and press

and hold the button on the case for

around 3 seconds to enter Bluetooth pairing.

•

Set mobile phone to search for and

connect to «EDIFIER TWS NB2 Pro».

•

Bluetooth pairing: the white

and green lights flash rapidly.

•

After pairing is successful, the

green light will flash slowly.

Tap zoneButton Accessories: Ear tips x 3 pairs, Storage bag x 1, Charging cable x 1

● Interconnection of the left and right earbuds/clear pairing

records

Place the earbuds in the case, and double click the button on the case (the white

light flashing rapidly) to clear pairing records and enter the TWS pairing of the left

and right earbuds. When successful, the earbuds will automatically enter Bluetooth

pairing state, and the white and green lights will flash rapidly.

● Functional operation

Note:

•

Noise reduction mode switch: noise reduction mode(effective when both

earbuds are used), ambient sound mode, and normal mode.

•

Sound effect mode switch: standard mode, spatial audio mode, and game mode.

Accept/end a call:

double click

Noise reduction mode switch:

double click

Sound effect mode switch:

triple click

Accept/end a call:

double click

Pause/play:

double click

Next track:

triple click

Tap zone

● In-ear detection function

•

Music control: Music will be played/paused when one earbud is inserted or

removed.

•

Noise reduction control: In noise reduction mode, the noise reduction will be

enabled when both earbuds are inserted, and will be disabled when one earbud

is removed.

•

You can also set or close the in-ear detection function via the EDIFIER CONNECT

APP.

● Charge the earbuds

•

Place the earbuds in the case and close the case for charging.

● Charge the charging case

•

Connect the included charging cable to the case for charging.

•

Indicator steady lit = charging

Indicator off = fully charged

● Battery level indicator on the charging case

•

Open/close the case to show the case’s battery level;

if indicator flashes three times: full battery level

if indicator flashes twice: medium battery level

if indicator flashes once: low battery level

EDIFIER TWS NB2 Pro

• Battery level indicator (next to the

charging port)

Model: EDF200026

Edif ier International Limited

P.O. Box 6264

General Post Off ice

Hong Kong

www.edif ier.com

2021 Edif ier

International Limited. All rights reserved.Printed in ChinaNOTICE:For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice. Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.

Наушники TWS Edifier TWS NB2 PRO серый

2.0, внутриканальные, 20 Гц — 20000 Гц, 24Ω, Bluetooth, 5.0
подробнее

Код товара: 5020483
