ANNE PRO 2 is a 60% size bluetooth RGB mechanical keyboard, it’s smart and save the space of the desk. Although it only have 61 keys, it can used like a stand 104 keys keyboard by key combination.

Connect

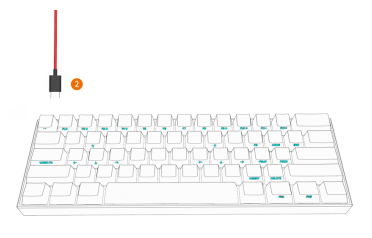

Connect over USB Cable

Connect Steps:

1. Turn off the Bluetooth switch on the back of the keyboard

2. Connect your computer with a USB cable


Connect over Bluetooth

1. Turn on the Bluetooth switch on the back of the keyboard
2. Operate steps on computer.

Basic Function

F1~ F12

ANNE PRO 2 provide F1 ~ F12

F1 = FN1 + 1
F2 = FN1 + 2
F3 = FN1 + 3
F4 = FN1 + 4
F5 = FN1 + 5
F6 = FN1 + 6
F7 = FN1 + 7
F8 = FN1 + 8
F9 = FN1 + 9
F10 = FN1 + 0
F11 = FN1 + —
F12 = FN1 + +

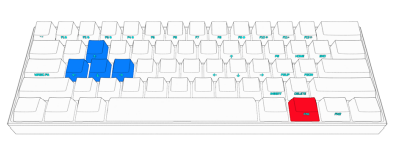

Direction Keys

ANNE PRO 2 provide two groups of direction keys

FN1 + W = ↑
FN1 + A = ←
FN1 + S = ↓
FN1 + D = →

FN1 + I = ↑
FN1 + J = ←
FN1 + K = ↓
FN1 + L = →

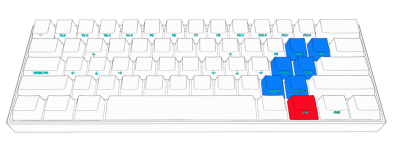

Other Keys

FN1 + O = SCROLL LOCK
FN1 + P = PAUSE BREAK
FN1 + | = PRINT SCREEN
FN1 +: ; = PAGE UP
FN1 + ‘ » = PAGE DOWN
FN1 +. > = INSERT
FN1 + /? = DELETE
FN1 + [ { = HOME
FN1 + ] } = END

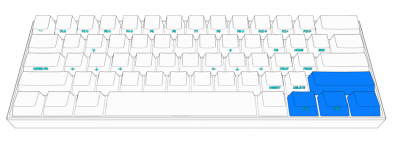

TAP Layout

For default, ANNE PRO 2 turn the Tap Layout on, and set Right Shift for ↑, FN1 for ←, FN2 for ↓ and Righ Control for →. So for example, when click Right Shift alone, the function will be ↑.

You can completely customize your TAP Layout, or turn it off. Setup guide, please refer to Layout Setting

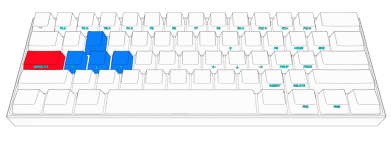

Magic Fn

Magic Fn can been the copy of FN1 or FN2. By default, Magic Fn is off. To enable it, please refer to the guide of Obinslab Starter.

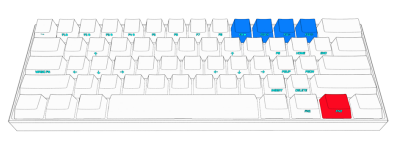

Light Control

ANNE PRO 2 presets a variety of lighting effects.

To custom your own light effect/effect group, please refer to the guid of Obinslab Starter.

FN2 + 9 = Switch Light
FN2 + 0 = Trun Backlight On/Off
FN2 + — = Reduce Backlight Brightness
FN2 + + = Increase Backlight Brightness

Setup bluetooth

Before starting the next steps below, please confirm that the Bluetooth switch is at position On.

Detail about turn on the Bluetooth switch.

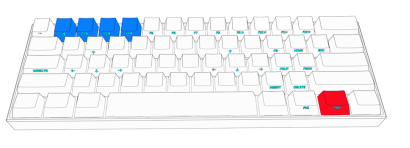

Turn on Bluetooth broadcast

Connect ANNE PRO 2 to a new host (Computer, Mobile, Pad etc), need Bluetooth pairing. To do this, need turn on Bluetooth broadcast first.

FN2 + 1 (5 Seconds) = Turn on Bluetooth broadcast on position 1
FN2 + 2 (5 Seconds) = Turn on Bluetooth broadcast on position 2
FN2 + 3 (5 Seconds) = Turn on Bluetooth broadcast on position 3
FN2 + 4 (5 Seconds) = Turn on Bluetooth broadcast on position 4

Switch Host

Connect or switch ANNE PRO 2 to a paired host

FN2 + 1 = Switch to host saved on position 1
FN2 + 2 = Switch to host saved on position 2
FN2 + 3 = Switch to host saved on position 3
FN2 + 4 = Switch to host saved on position 4

Bluetooth pairing with Windows 8/10

Check if your computer supports BLE

If your computer does not support BLE, please purchase an adapter that supports BLE4.0.

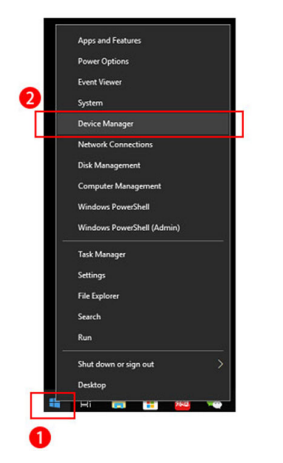

1. Right click on the windows icon
2. Select Device Manager
3. If a MicroSoft Bluetooth Enumerator device is present, it means that the Bluetooth module supports BLE devices. If not, you need to purchase an adapter that supports BLE 4.0

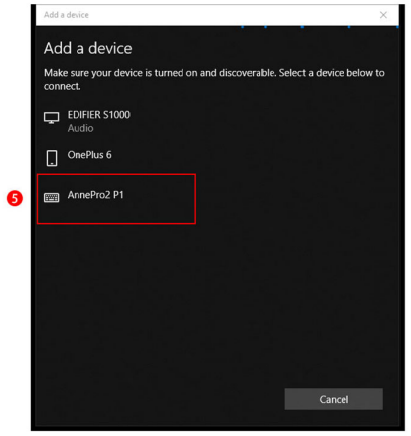

Pair with keyboard

1. Right click on the windows icon, select menu Setting
2. Select menu Bluetooth & other devices
3. Open the Bluethooth switch
4. Click Add Bluetooth or other device
5. Click Bluetooth
6. Select AnnePro2 to pair, wait 5-10s to complete binding

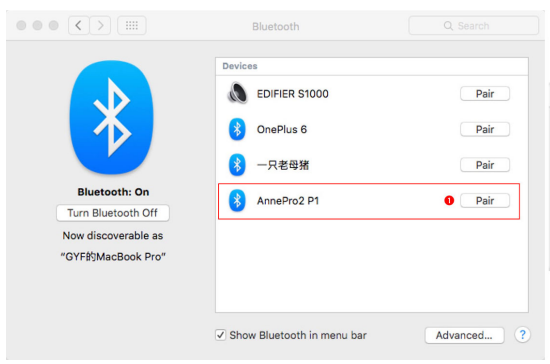

Bluetooth pairing with Mac OS X

1. Open Bluetooth setting window, click Pair button to pair with AnnePro2
2. Click Pair on pairing request window

Technical Parameters

ObinsLab Starter

Obinslab Starter is a PC tool for ANNE PRO 2

Getting Started

Supported Platforms

System	32bit	64bit
Windows 7
Windows 8
Windows 10
Mac OS X	—

Installation

1. Download the installation package: http://www.obins.net/occ/
2. Install

Windows

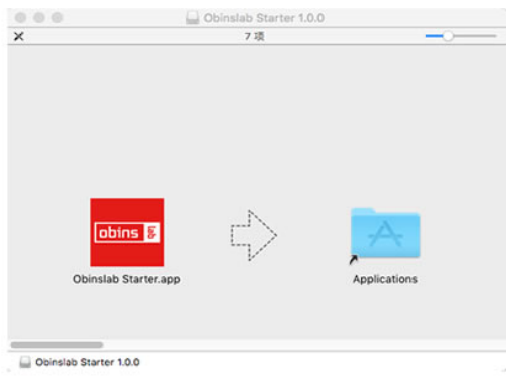

Mac OS X

Start Up

The function of macro record need a special authorization, and some anti-virus software may block it, please choose trust it.

Tips: Please always download Obinslab Starter from http://www.obins.net/obinslab-starter, we can not guarantee the security of software downloaded from other channels.

Windows
Click the shortcut on the desktop

Mac OS X

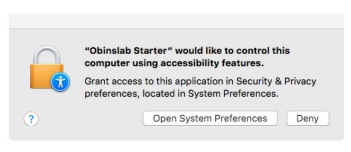

The first time launch Obinslab Starter, you will see the alert below, please authorize Obinslab Starter by clicking Open System Preferences in the alert, then selecting the checkbox for Obinslab Starter in the Privacy pane.

Quick Guide

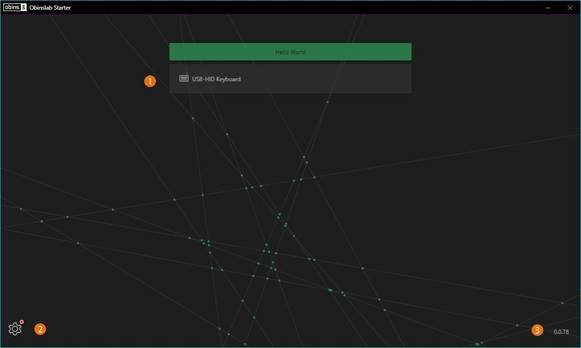

Device List

1. Device List
   Devices connected over USB cable.
   Click Hello World to refresh device list(This usually does not need).
2. Setting
   Switch Language
   Switch Theme
   Software update
3. Software Version
   The current version of Obinslab Starter

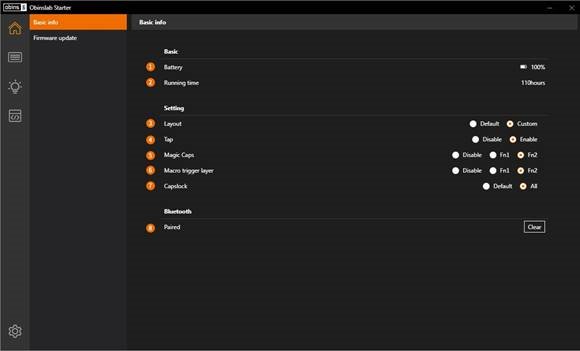

Keyboard Setting

Information and general setting for the keyboard

1. Battery: Battery indicator
2. Running Time: Keyboard running time statistics
3. Layout
   Default: Default keyboard layout
   User: User customized keyboard layout
4. Tap
   Disable: Turn off keyboard TAP layout.
   Enable: Turn on keyboard TAP layout.
5. Magic Fn
   Disable: Turn off Magic Fn
   Fn1: Set Magic Fn to a copy of Fn1
   Fn2: Set Magic Fn to a copy of Fn2
6. Macro
   Disable: Turn off Macro.
   Fn1: Set Fn1 to the hold key for trigger a Macro
   Fn2: Set Fn2 to the hold key for trigger a Macro
7. CapsLock Led
   Disable: Set CapsLock Led to default. If CapsLock on, led of CapsLock key will on.
   All: If CapsLock on, led of all keycaps will on.
8. Reset Bluetooth: Clear Bluetooth bound info saved on keyboard.

Layout Setting

1. Layout
   Current: Layout read from keyboard. Qwerty, Mac, Dvorak: Preset layout.
   • Click on icon + to add a new layout
   • Right click on Current to Copy
   • Right click on preset layout to Copy/Recover(set to default)
   • Right click on user layout(added/copied) to Copy/Delete/Rename
   • Double click on user layout to Rename(Enter for save, Esc for cancel)
2. Key code table
   Here list HID Key Code and ANNE PRO 2 special function keys
3. TOP
   The default layout, tap to trigger
4. FN1
   Hold Fn1 to trigger
5. FN2
   Hold Fn2 to trigger
6. TAP
   Usually set key code on modifier key to extend it.
   To use TAP, don’t forget to enable TAP option at keyboard setting page
7. Download
   Download the selected layout to keyboard.
   If layout is seated to «Default», download a layout will rewrite it to «User» automatically

ANNE PRO 2 have four layers, they are TOP, FN1, FN2, TAP.

There are two ways to update keycode:

• Drag the selected keycap, and drop on another keycap
• Select a keycap, choose new from **Key code table

Light Setting

1. Light Group
   • Click on icon + to add light group
   • Right click on custom light group item to Delete /Rename / Copy
   • Right click on the Default light group to Copy / Recover(set to default)
2. Light List
   • Click on icon + to add light effect(Limited to max 16)
   • Click on light effect to Rename / Copy / Delete
   • Right click on blank space to Paste the light effect copied
   • Drag the light effect to sort
3. Color Palette
   • Pick color on the color wheel
   • Pick color from Default/Custom color block
   • Right click on custom color block to save the current color
4. Setting Static Light
   Setting static single or static multiple light effect:
   • Select single/multiple keycap, and then pick a color on Color Palette
   • Click on blank space to clear selected keycaps
5. Dynamic Light Effect
   • None: Static light effect, RGB backlights on every keycap can be defined
   • Breath/Breath grad/Rainbow/Breath single: Work together on Dynamic Light Color Table
6. Dynamic Light Color Table
   Setting color for Dynamic Light Effect
7. Preview
   Preview the selected light effect on keyboard
8. Download All
   Download the light effects listed in the selected light group to keyboard

Macro Setting

1. Macro Group
   • Click on icon + to add macro group
   • Right click on macro group to Remane/Copy/Delete
   • Double click on macro group to Rename
2. Macro Key
   Indicate the macro trigger position
   • Click on a blank keycap to Paste/Add macro(Limited to max 16)
   • Click on macro keycap to select a macro
   • Right click on macro keycap to Delete/Copy/Paste
   • Drag on the macro keycap and drop on a blank keycap to update macro trigger position
3. Rec Macro
   Record a macro, the keycode typed in will show at Macro code
4. Macro Code
   Show the macro code of selected
   • Insert time block
   • Move up/down the macro code block
   • Double click on time block to edit time(Enter for save, Esc for cancel)
   • Delete macro code block
5. Download
   Download the macros listed in the selected macro group to the keyboard

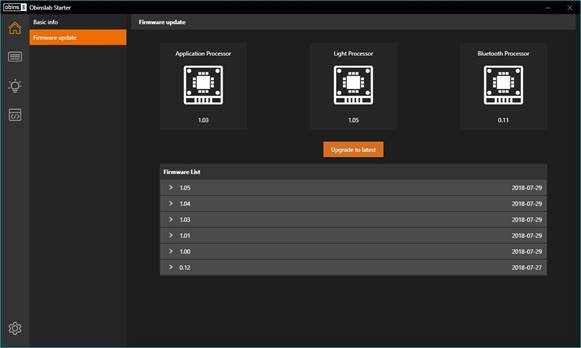

Firmware Upgrade

ANNE PRO 2

In this page, you will get a list of firmware.

For a better experience, we recommend upgrading to the latest.

• Upgrade to latest
  It’s quite simple, just click the «Upgrade to Latest» button, what’t all.
• Abnormal recovery
  If an accident(e.g. power failure, reboot, computer crash, and other unpredictable situations) occurs during the firmware upgrade, the keyboard can’t be used.
  In this situation, you can use the abnormal recovery mode to recover the keyboard.

1. Turn off the Bluetooth switch on the back of the keyboard

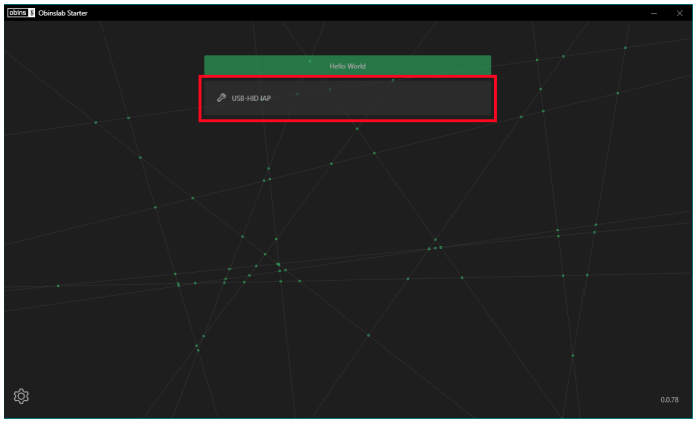

2. Hold on Esc, plug in the USB cable. Release Esc key while «USB-HID IAP» show up on the screen
3. Select «USB-HID IAP» item to upgrade firmware again

• Experimental Features

The features come with its share of annoyances and curiosities.

1. Use text edit software to open user-preference.json change isDev to true
   {«theme»:»dark», «locale»:»en», «isDev»:true}
   The path of user-preference.json,
   on Windows is: %appdata%Obinslab Starterstorage
   on Mac OS X is: /Users/your-user-name/Library/Application Support/Obinslab Starter/storage
2. Open/restart Obinslab Starter

ANNE PRO

Coming soon
