Summary of Contents for Braun Oral-B 3710

®

powered

by

WITH

WIRELESS

WIRELESS

3738_FCC_1_D30_NA_S1.indd 13738_FCC_1_D30_NA_S1.indd 1 25.04.2007 14:00:52 Uhr25.04.2007 14:00:52 Uhr

English 4

Español 13

Français 22

Internet:

www.oralb.com

www.braun.com

Braun GmbH

Frankfurter Straße 145

61476 Kronberg/Germany

D 30.546.4 X

D 30.546.4

D 30.526.4 X

D 30.516.4

Type 3731

Modelo 3731

Modèle 3731

3738_FCC_1

GB/E/F

Printed in Germany

Impreso en Alemania

Imprimé en Allemagne

3738_FCC_1_D30_NA_S2.indd 13738_FCC_1_D30_NA_S2.indd 1 25.04.2007 14:01:34 Uhr25.04.2007 14:01:34 Uhr

Oral-B

Oral-

B

a

j

b

c

d

e

g

f

h

i

k

l

m

Oral-B

3

4

2

1

3738_FCC_1_D30_NA_S3.indd 13738_FCC_1_D30_NA_S3.indd 1 25.04.2007 14:02:24 Uhr25.04.2007 14:02:24 Uhr

4

IMPORTANT SAFEGUARDS

Oral-B Triumph with SmartGuide has been carefully designed to offer you and your family

a new and unique brushing experience that is both safe and effective. However, when using

electrical products, basic safety precautions should always be followed.

Read all instructions before using.

DANGER

In order to reduce the risk of electrocution:

1. Do not place or store the charger where it can fall or be pulled into a tub or sink.

2. Do not place the charger in water or other liquid.

3. Do not reach for a charger that has fallen into water. Unplug immediately.

WARNING

To reduce the risk of burns, electrocution, fire or injury:

1. Close supervision is necessary when this product is used by or near children or invalids.

2. Use this product only for its intended use as described in this manual. Do not use

attachments not recommended by the manufacturer.

3. Keep cord away from heated surfaces.

4. Never drop the appliance or insert any object into any opening of the appliance.

5. Never operate this product if it has been dropped or damaged, if it is not working

properly, or if the SmartPlug is damaged or has been dropped into water. If any of these

occur, please contact a service center and return the product for examination and repair.

6. This appliance is provided with a SmartPlug with integrated Safety Extra Low Voltage

power supply. Do not exchange or manipulate any part of it.

SAVE THESE INSTRUCTIONS

3738_FCC_1_D30_NA.indd 43738_FCC_1_D30_NA.indd 4 25.04.2007 14:07:10 Uhr25.04.2007 14:07:10 Uhr

5

English

You have chosen the smartest toothbrush

in the world – with Oral-B SmartGuide.

Oral-B Triumph with SmartGuide is the first

toothbrush with a wireless display, designed to

go beyond ordinary clean to improve your oral

health. With its many state-of-the-art features

powered by Braun technology and inspired by

the dental experts at Oral-B, you can feel

confident that you are brushing at your best.

New Oral-B Triumph now with SmartGuide

uses an interactive wireless display to help

you optimize your brushing experience. Its

innovative brushing technology delivers ultimate

plaque removal and its advanced Oral-B

FlossAction brushhead features MicroPulse

bristles to gently penetrate between teeth.

It provides such a thorough clean that you won’t

believe how great you feel about your teeth.

Oral-B Triumph with SmartGuide is brought to

you by Oral-B, the brand more dentists use

themselves worldwide.

Important

• To avoid electromagnetic interference and/or

compatibility conflicts, deactivate the radio

transmission of your toothbrush before

carrying or using it in restricted surroundings

such as aircrafts or specially marked areas

in hospitals (see «Deactivating the radio

transmission»).

• Persons with pacemakers should always keep

the toothbrush more than six inches (15 centi-

meters) from the pacemaker when turned on.

If at any time you suspect interference is

taking place, deactivate the radio transmission

of your toothbrush before using it (see

«Deactivating the radio transmission»).

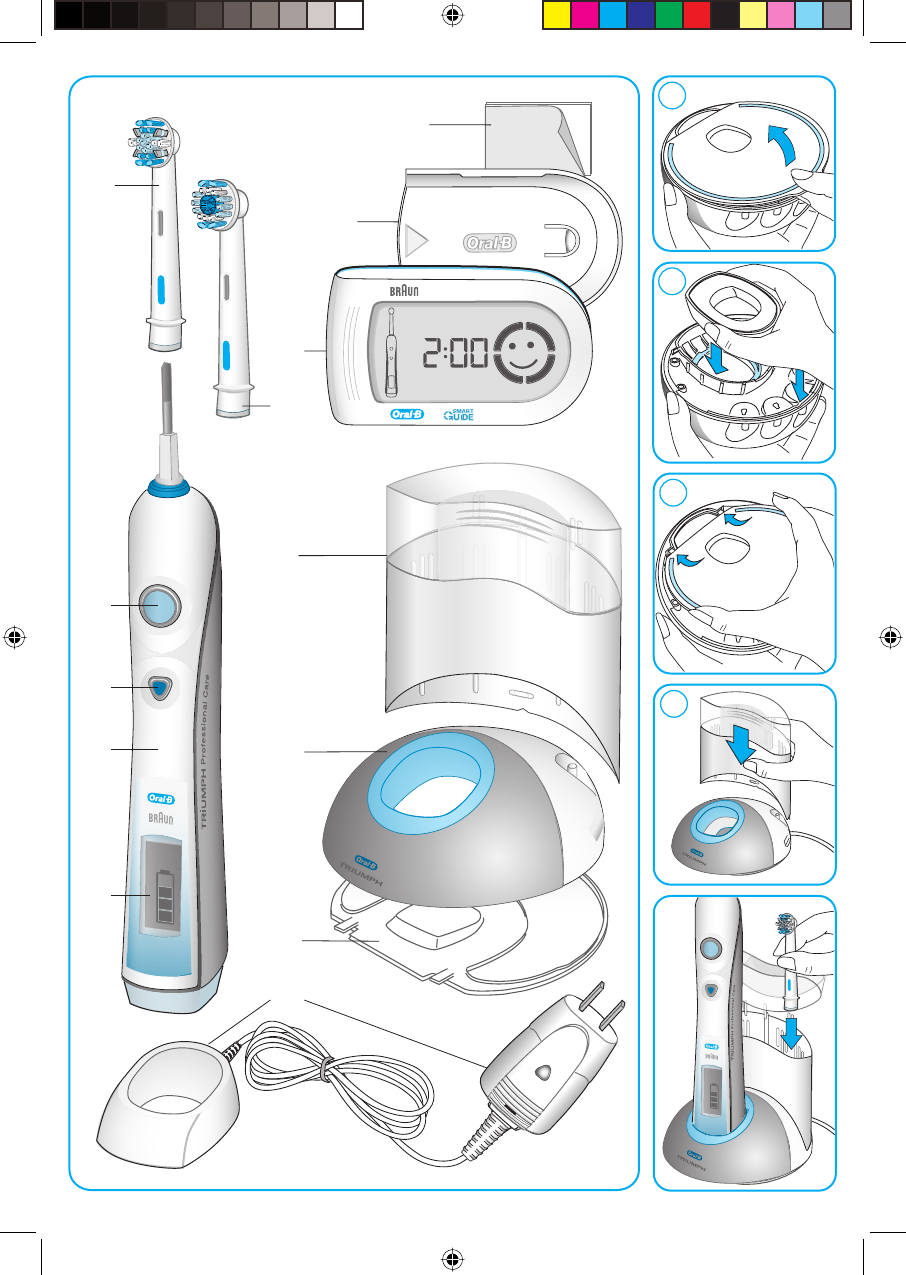

Description

a Oral-B FlossAction brushhead

b On/off button

c Mode button

d Handle

e Handle display

f SmartPlug charger (includes charging ring

and SmartPlug)

g Base plate

h Base station

i Protective cover

j Oral-B ProWhite brushhead (not with all

models)

k SmartGuide display unit

l Wall mount

m Adhesive tape

First use

Before brushing for the first time, charge your

toothbrush. Plug the SmartPlug into an electrical

outlet and place the handle (d) on the charging

ring (see «Connecting and charging»).

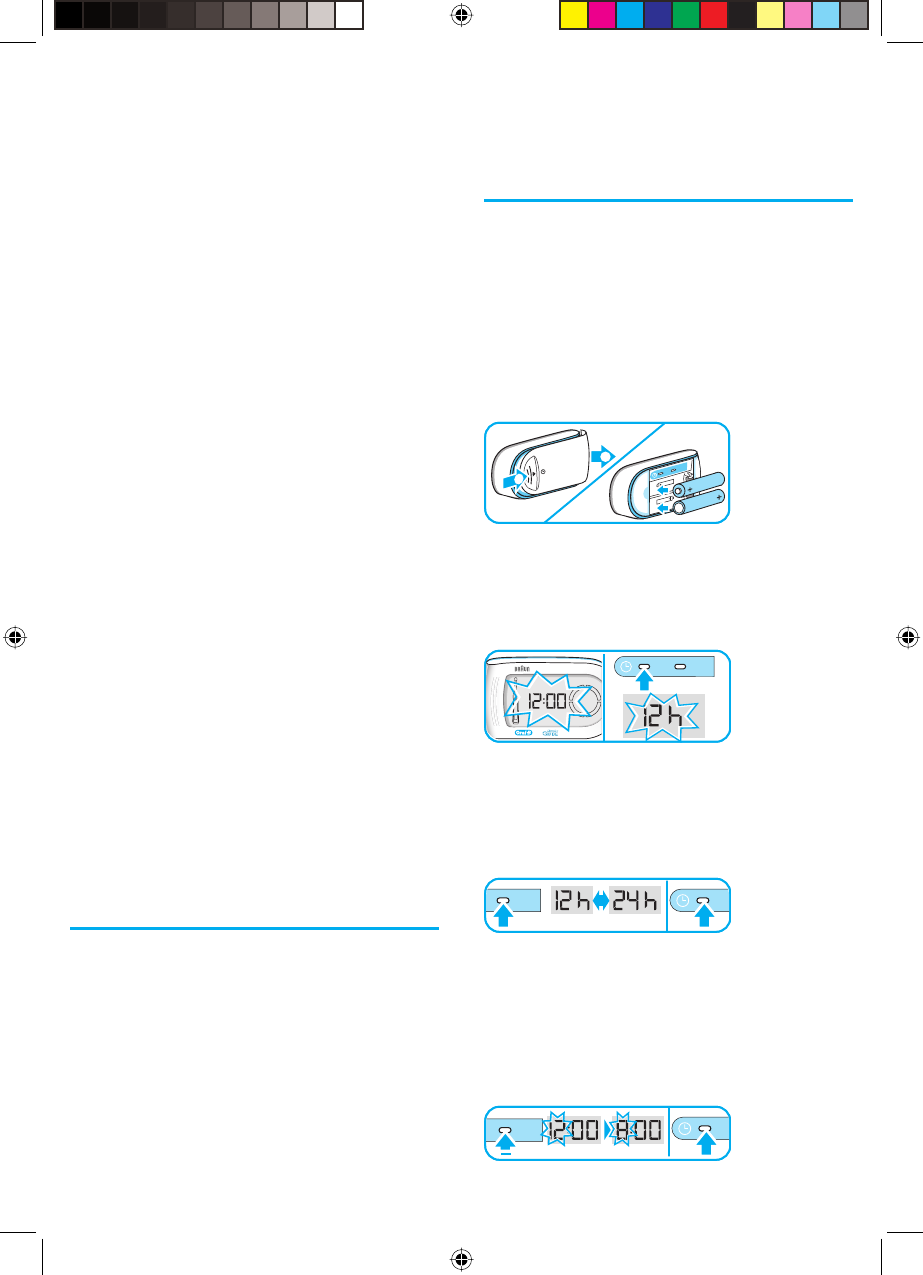

• To activate the SmartGuide display unit (k),

remove the battery compartment cover on the

back and insert the two batteries (type AA)

with correct polarity (see symbol in the battery

compartment).

• A flashing «12:00» on the SmartGuide display

indicates that time can be adjusted. Press

the «set» button, located in the battery

compartment, until «12h» is displayed.

• By briefly pressing the «h/min» button, you

can toggle between a «12h» or «24h» daytime

format. Push the «set» button to confirm your

choice.

• Then the hour digit starts flashing. Press the

«h/min» button until the right hour appears

and confirm with the «set» button. Proceed

the same way to set both minute digits. If you

prefer not using this clock feature, the flashing

«12:00» will disappear automatically after 24h.

set h/min

set h/min

1

2

set h/min

set h/min

1

2

set

h/min

set

h/min

3738_FCC_1_D30_NA.indd 53738_FCC_1_D30_NA.indd 5 25.04.2007 14:07:10 Uhr25.04.2007 14:07:10 Uhr

6

You can start your toothbrush by pressing the

on/off button (b). To avoid splashing, guide the

brushhead to your teeth before switching the

appliance on.

Connecting and charging

Your toothbrush has a waterproof handle, is

electrically safe and is designed for use in the

bathroom.

To assemble the base station (h) as a charging

unit, detach the base plate (g) first (1, page 3).

Place the charging ring into the base station

and attach the base plate as shown (2 and 3,

page 3). Then insert the protective cover (i) on

the back of your base station (see diagram 4,

page 3).

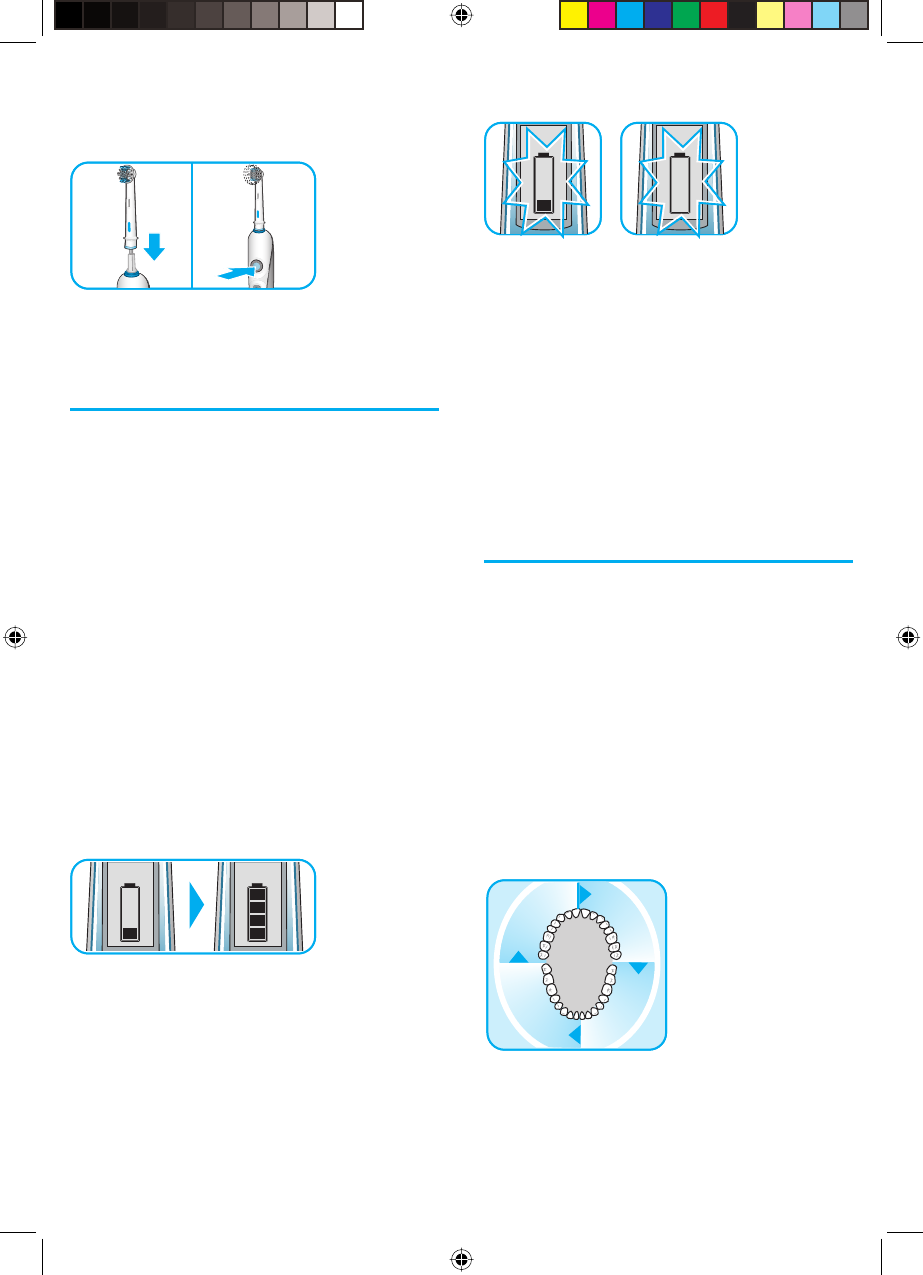

• Plug the SmartPlug into an electrical outlet

and place the toothbrush handle (d) on the

charging unit. A battery symbol should appear

in the handle display (e). The battery symbol

will fill up while the handle is being charged.

Once the handle is fully charged, the battery

symbol is completely filled with four bars. A

full charge takes at least 12 hours to complete

and allows for approximately two weeks of

regular brushing (twice a day, 2 minutes).

Please note: If the battery symbol is not

displayed immediately, continue charging. It

will appear in 10–15 minutes.

• When the rechargeable battery is low, the

battery symbol with one remaining bar starts

flashing. Your toothbrush will slow down

and then stop. When the battery is fully

discharged, the empty frame of the battery

symbol flashes. It will then need a 15-minute

charge before you can use it for a 2-minute

brushing.

• For everyday use, the toothbrush handle can

be stored on the charging unit to maintain it at

full power. There is no risk of overcharging the

battery.

• To maintain the maximum capacity of the

rechargeable battery, unplug the charging unit

and fully discharge the handle by regular use

at least every 6 months.

For electric specifications, see printing on the

SmartPlug.

Personalizing the timer

You can choose between the «Professional» or

«2-Minute» timer and a «Count Up» or «Count

Down» timer to meet your specific needs.

The «2-Minute Timer» indicates by a long

stuttering sound and a «smiley» on the

SmartGuide display unit that the dentist

recommended 2-minute brushing time has been

reached. In addition, the «Professional Timer»

helps you brush all four quadrants of your

mouth equally. It signals with a short stuttering

sound at 30-second intervals and the «quadrant

circle» on the SmartGuide display unit that it is

time to move to the next quadrant of your

mouth.

Both timers memorize the elapsed brushing

time, even when the handle is briefly switched

off during brushing. Only when pausing longer

than 30 sec. the timer resets to the initial

starting point.

Oral-B

Oral-

B

Oral-B

Oral-

B

3

0

s

e

c

3

0

s

e

c

3

0

s

e

c

3

0

s

e

c

3

0

s

e

c

3

0

s

e

c

3

0

s

e

c

3

0

s

e

c

3738_FCC_1_D30_NA.indd 63738_FCC_1_D30_NA.indd 6 25.04.2007 14:07:11 Uhr25.04.2007 14:07:11 Uhr

7

The «Count Up Timer» displays your actual

brushing time. The «Count Down Timer»

indicates the remaining brushing time. Starting

with «2:00» minutes, it goes down to «0:00».

When brushing longer than two minutes, it

automatically changes to the «Count Up Timer».

Your toothbrush comes with the «Professional

Timer» and the «Count Up Timer» activated. If

you wish to change these settings, proceed as

follows:

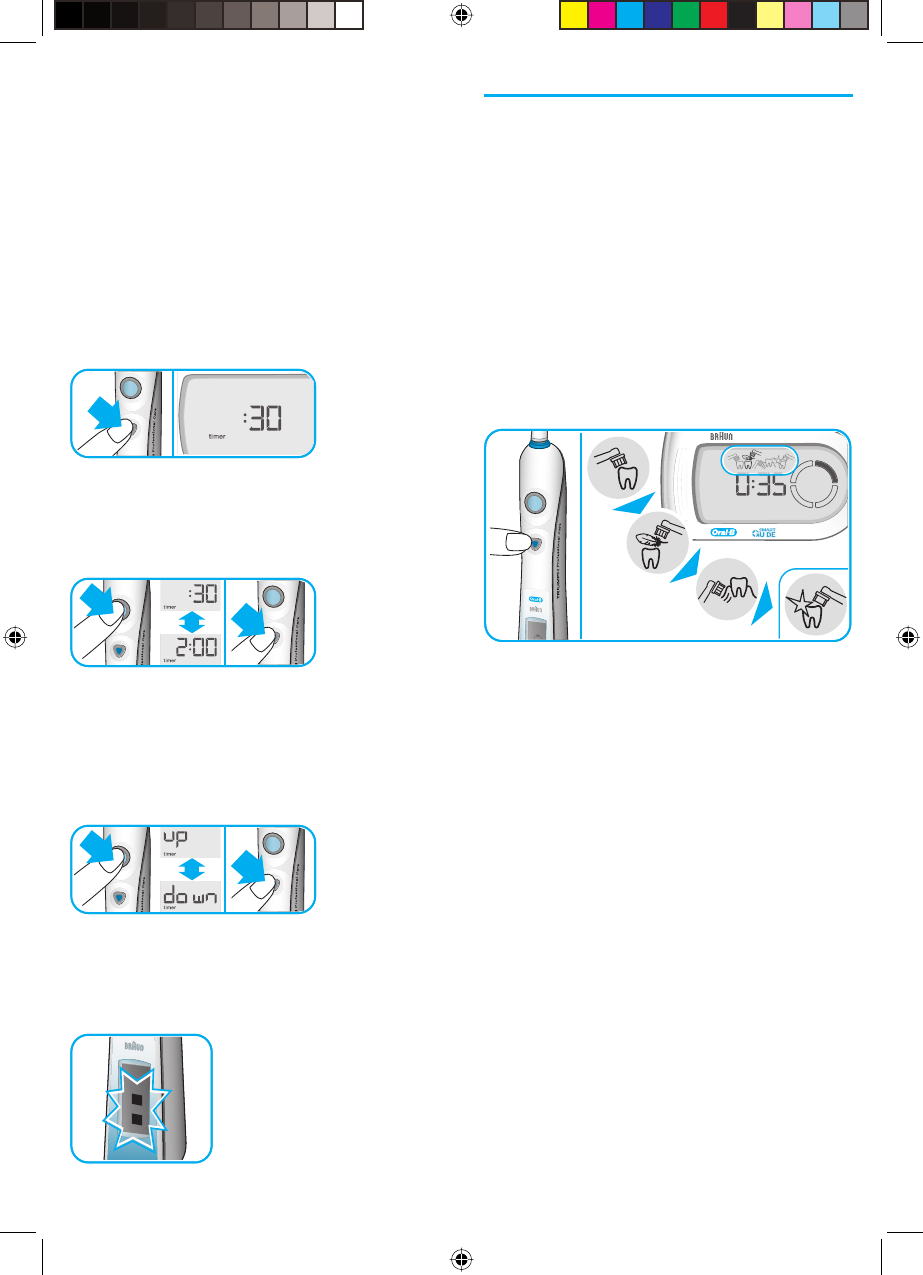

• Press and hold the mode button (c) until the

SmartGuide display unit (k) shows «:30» and

«timer».

• By briefly pressing the on/off button (b), switch

to the «2-Minute Timer». Confirm your choice

by pushing the mode button (c).

• This will lead you directly to the «Count Up

Timer» display («up» and «timer» will be

shown). Switch to the «Count Down Timer» by

pressing the on/off button and confirm it with

the mode button.

Please note: it is normal that the handle display

shows two flashing bars when operating in the

timer setting mode.

Brushing

Brushing modes

Your toothbrush offers different brushing modes

for varying oral care needs:

«Clean» – Exceptional mouth cleaning.

«Sensitive» – Gentle, yet thorough

cleaning for sensitive areas.

«Massage» – Gentle stimulation of gums.

«Polish» (deluxe – Exceptional polishing

model only) and natural whitening for

occasional or everyday use.

• When pressing the on/off button your tooth-

brush automatically starts in the «clean»

mode.

• To switch to the other modes, successively

press the mode button.

• To return from any mode to the «clean» mode,

press and hold the mode button.

• To turn your brush off, press the on/off button.

Please note: the «polish» mode (deluxe model

only) is best used with an Oral-B ProWhite

brushhead. Once the Oral-B ProWhite is

attached, press the on/off button and your

toothbrush automatically starts in the «polish»

mode (please see «Brushheads»).

Brushing technique

• Guide the brushhead slowly from tooth to

tooth.

• Hold the brushhead in place for a few seconds

before moving on to the next tooth.

• Brush the gums as well as the teeth, first the

outsides, then the insides, finally the chewing

surfaces.

• Do not press too hard or scrub, simply let the

brush do all the work.

When you finish brushing, the total brushing

time will be displayed for 30 seconds before

the display switches back to the time mode.

To directly get to the time mode, clear the

brushing time display by pushing the mode

button.

3 sec.3 sec.

3738_FCC_1_D30_NA.indd 73738_FCC_1_D30_NA.indd 7 25.04.2007 14:07:12 Uhr25.04.2007 14:07:12 Uhr

8

In the first few days of using any electric

toothbrush, your gums may bleed slightly.

This is usually a sign of pre-existing gum

inflammation. Using your Oral-B Triumph

toothbrush properly should reduce inflammation

and as a result bleeding should stop after a few

days. Should it persist after 2 weeks, please

consult your dentist or hygienist. If you have

sensitive teeth and gums, Oral-B recommends

using the «sensitive» mode.

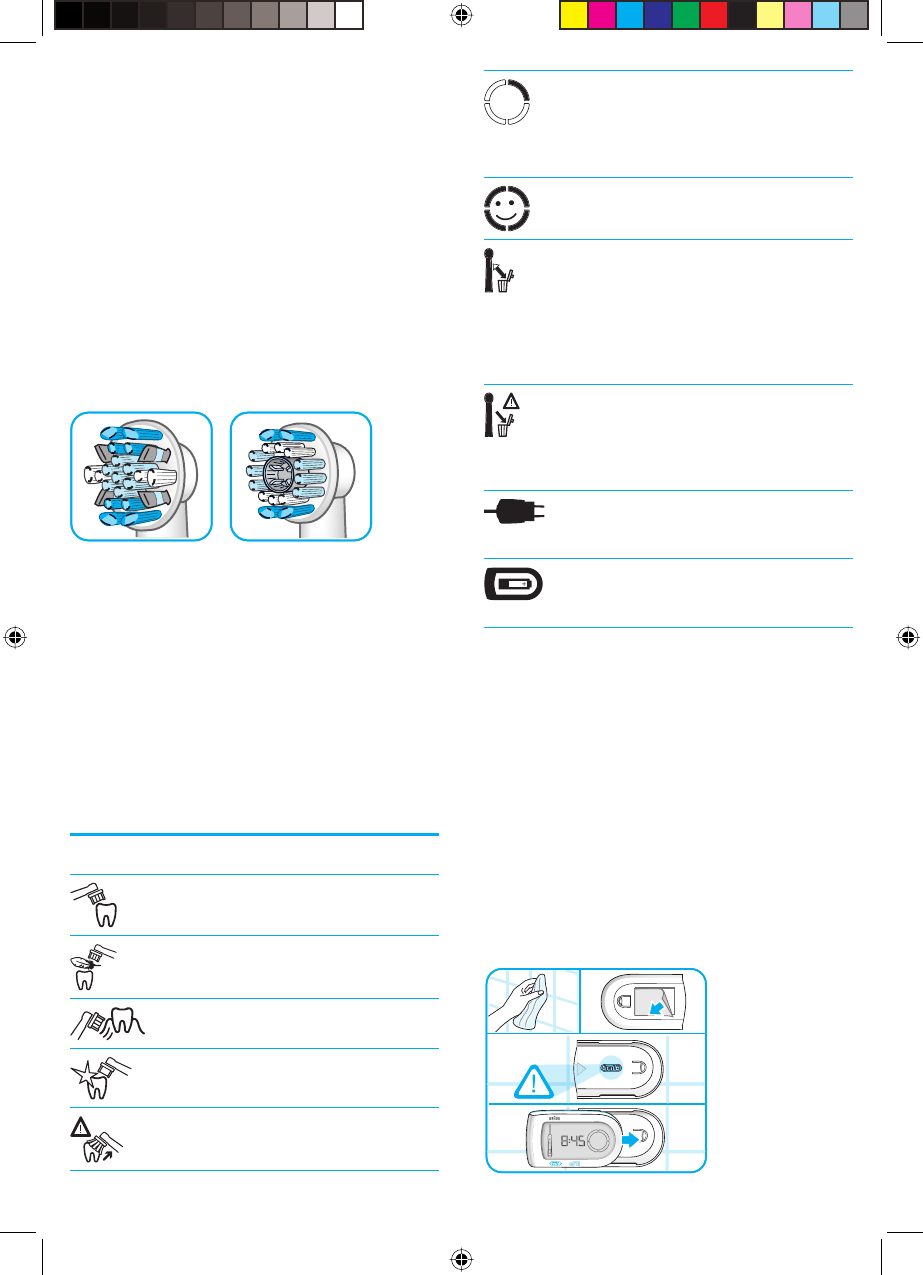

Brushheads

The Oral-B FlossAction brushhead (a) is

recommended for everyday deep cleaning.

For occasional or everyday polishing, use the

Oral-B ProWhite (j) brushhead (not with all

models). Please note: children under 12 should

not use the Oral-B ProWhite brushhead.

Both brushheads contain a «smart chip» to

communicate with the electronics inside the

toothbrush handle. Therefore, your toothbrush

automatically switches to the appropriate

brushing mode for the attached brushhead.

Nevertheless, you can select other brushing

modes to customize your routine.

Do not use these brushheads with braces. We

recommend using the Oral-B Ortho brushhead,

which is specifically designed to clean around

braces and wires.

SmartGuide display unit

Icons

«Clean» mode

«Sensitive» mode

«Massage» mode

«Polish» mode (not with all

models)

Too much pressure is applied.

Reduce the brushing force.

«Quadrant circle» – currently you

are brushing in the first 30-second

interval. Move to the next quadrant

of your mouth, when the second

segment starts flashing.

Dentist recommended 2-minute

brushing time has been reached.

*«Pre-notice» – that your

brushhead needs to be replaced

soon. You can use it for another

10 days (twice a day, 2 minutes)

before the recommended

replacement time has been

reached.

*Your brushhead has surpassed

the dentist recommended usage

time of 3 months (twice a day,

2 minutes). Replace it with a new

one.

The rechargeable battery of the

handle is low. Charge the tooth-

brush handle.

Batteries of the SmartGuide

display unit are low. Change

batteries of the display unit.

* the «brushhead replacement» and «pre-notice

brushhead replacement» features only work

when using brushheads enabled with Smart

Technology (e.g. Oral-B FlossAction and

Oral-B ProWhite)

Wall mount

If you prefer to mount the SmartGuide display

unit on a wall, mirror or other surface, use

the adhesive tape (m) to fix the wall mount.

Before doing so, make sure the chosen surface

is clean and dry (remove grease and dust first).

Position the wall mount so that the Oral-B logo

is readable. Then press the wall mount evenly

and firmly to the wall. Wait 24h before sliding the

SmartGuide display unit into the fixed wall

mount.

aa jj

3738_FCC_1_D30_NA.indd 83738_FCC_1_D30_NA.indd 8 25.04.2007 14:07:13 Uhr25.04.2007 14:07:13 Uhr

9

Please note: the adhesive tape will not work on

dirt-repellent surfaces.

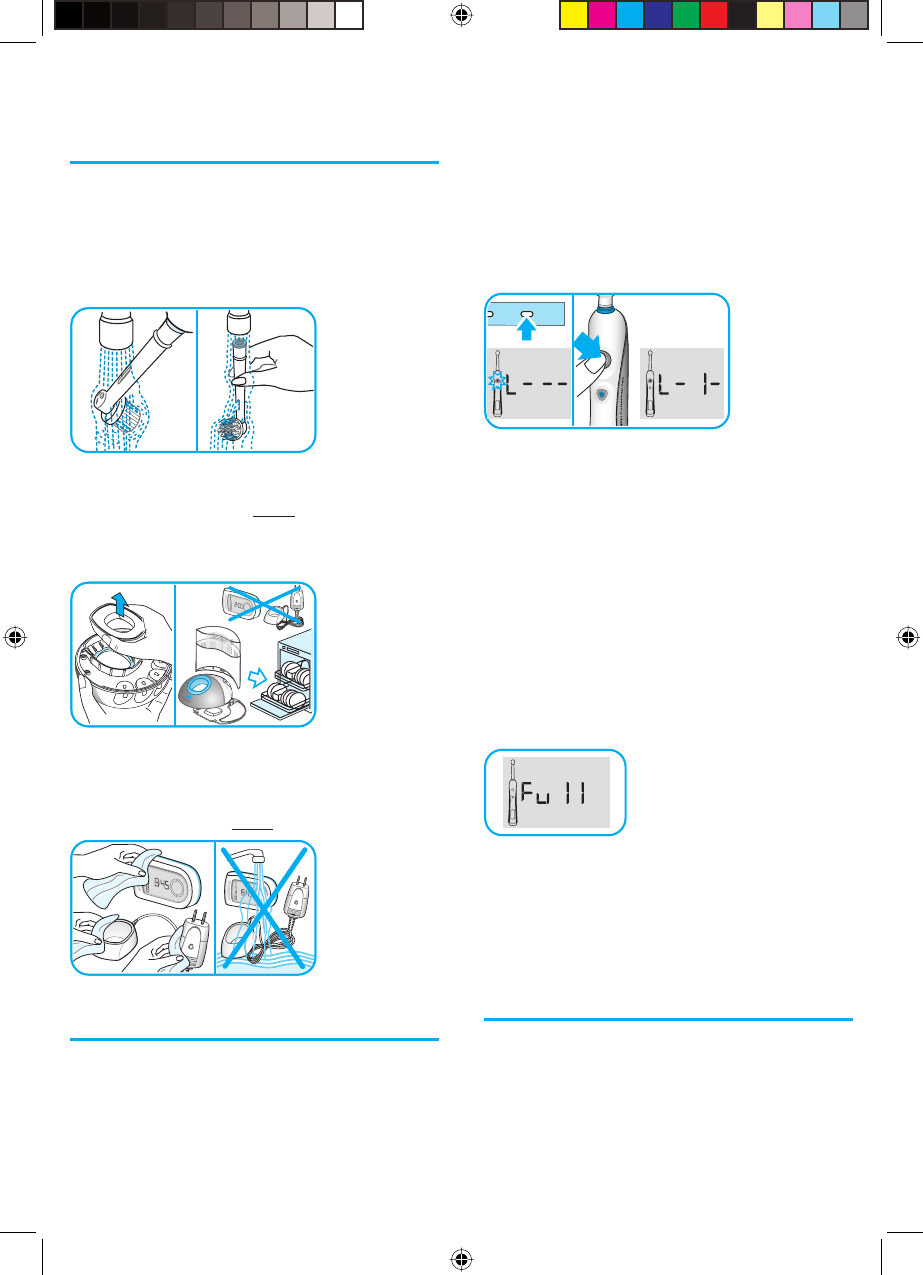

Cleaning recommendations

• After brushing, rinse your brushhead

thoroughly under running water.

• Remove the brushhead from the handle and

clean both parts separately under running

water. Then wipe them dry before you put the

handle on the charging unit.

• Before cleaning your charging unit, make sure

you disassemble it first. The charging ring and

the SmartPlug should never be placed in the

dishwasher. However, all other parts (base

station, base plate and protective cover) are

dishwasher-safe.

• From time to time, you can also clean

the charging ring, the SmartPlug and the

SmartGuide display unit with a damp cloth.

The SmartPlug charger and the SmartGuide

display unit should never be placed in water.

Synchronizing

In order to avoid interference of display

messages when using more than one Oral-B

Triumph toothbrush with separate SmartGuide

display units in the same household, you need

to assign the handles to their respective display

units. Please follow the steps below:

• Push the «h/min» button in the battery

compartment for at least 3 seconds. The

SmartGuide display unit shows «L—», in-

dicating the «Learn» mode for synchronization

is activated.

• Now you are requested by a flashing

on/off button in the toothbrush icon on the

SmartGuide display unit to turn the handle on.

When doing so, the automatic synchronization

process starts. It is finished when «L-1-» is

displayed.

• Then turn off the handle.

If you would like to assign a second handle to

the same SmartGuide display unit, repeat the

last two steps described above with the other

handle. You can exit the «Learn» mode by

pressing the «h/min» or «set» button. Otherwise

the «Learn» mode will automatically end after

30 seconds.

Please note:

– A maximum of 2 handles can be

synchronized with one SmartGuide display

unit. After you synchronized the second

handle, «Full» will be displayed.

– When changing batteries of the SmartGuide

display unit, stored data will be erased.

Therefore, please repeat the synchronization

process every time you change the batteries.

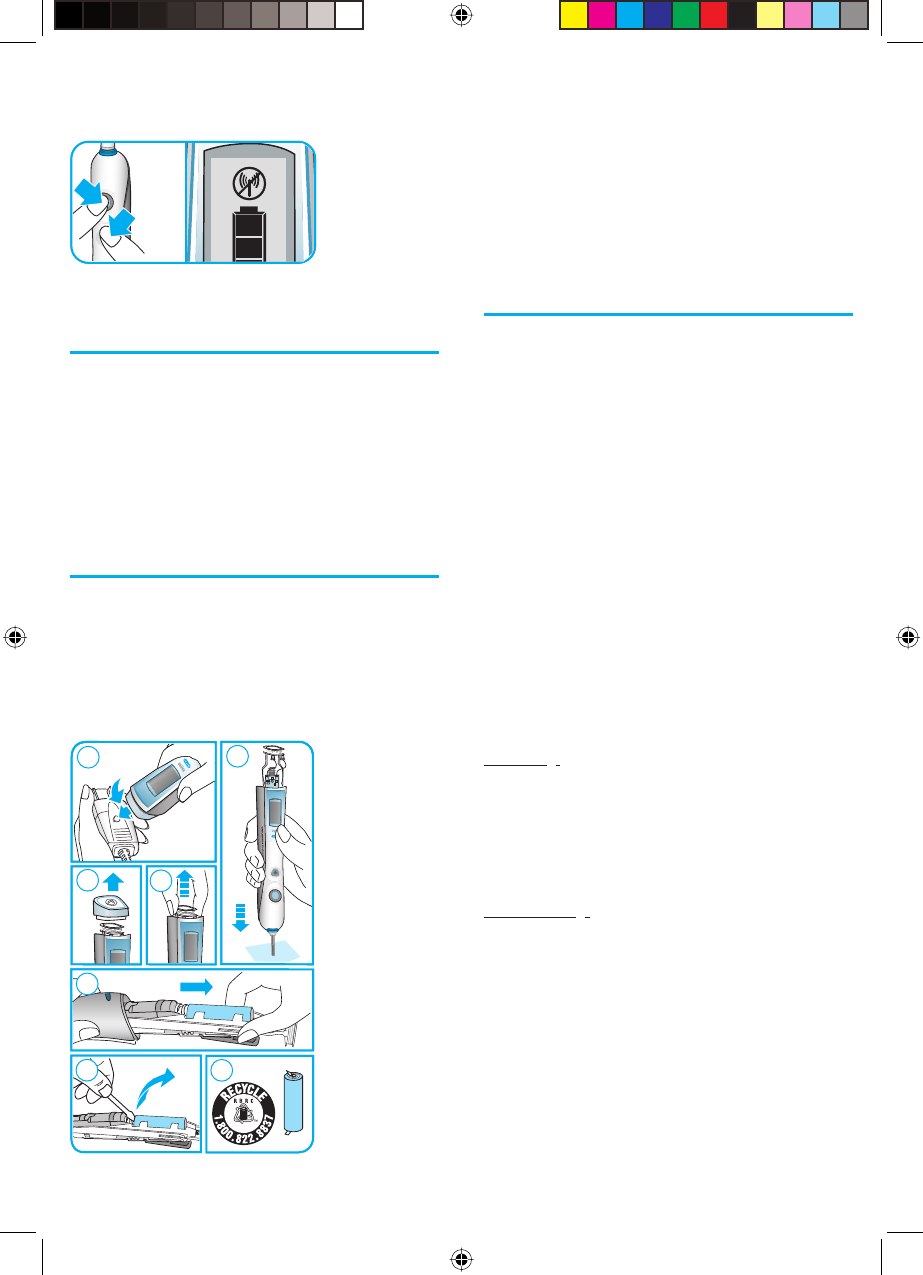

Deactivating the radio

transmission

If you want to use or carry your toothbrush in

surroundings where radio controlled appliances

are not allowed (e.g. hospitals or aircraft),

deactivate the radio transmission first.

To do so, simultaneously press the on/off and

mode button for 3 seconds. The handle display

shows the radio deactivation icon. If you want to

3738_FCC_1_D30_NA.indd 93738_FCC_1_D30_NA.indd 9 25.04.2007 14:07:15 Uhr25.04.2007 14:07:15 Uhr

10

reactivate the radio transmission, press both

buttons again for 3 seconds and the display

icon disappears.

Environmental notice

In the interest of protecting the environment,

please do not dispose of the product in the

household waste at the end of its useful life.

Disposal can take place at an Oral-B Braun

Service Center or at approved recycling or

disposing locations in accordance with local

regulations.

Removing batteries

Handle

At the end of the product’s useful life, open

the handle as shown, remove the rechargeable

battery and dispose of it according to local

environmental regulations.

Caution! Opening the handle will destroy the

appliance and invalidate the warranty.

SmartGuide display unit

Remove fully discharged batteries immediately.

Replace all batteries at the same time. Do not

mix alkaline batteries with zinc carbon or

rechargeable batteries.

Subject to change without notice.

The 30-Day Challenge

Take the challenge! Experience the Oral-B

Triumph difference!

Oral-B Triumph with SmartGuide is the world’s

smartest toothbrush for thorough cleaning.

No wonder that Oral-B is the brand more

dentists use themselves worldwide. In fact, we

are so convinced you’ll fall in love with your new

toothbrush that we give you this risk-free offer.

Try Oral-B Triumph with SmartGuide for

30 days from the date of purchase. If you are

not 100% satisfied, receive a full refund. No

questions asked. Guaranteed.

For a full refund, please return your handle,

refills, and charging unit with your original cash

register receipt. For further details, please call

1-800-566-7252 to be referred to the authorized

Oral-B Braun Service Center closest to you.

U.S. only:

Attention: 30-Day Challenge

Oral-B Braun Division

The Procter & Gamble Company

Sobin Park and A Street, MS 1F

South Boston, MA 02127

Canada only:

Attention: 30-Day Challenge

Braun Canada

a division of Procter & Gamble Inc.

Toronto, ON

M5W 1C5

3 sec.3 sec.

5

1

23

67

4

Ni-MH

5

1

23

67

4

Ni-MH

3738_FCC_1_D30_NA.indd 103738_FCC_1_D30_NA.indd 10 25.04.2007 14:07:16 Uhr25.04.2007 14:07:16 Uhr

11

FOR USA ONLY

Limited 2-Year Warranty

Oral-B Braun warrants this appliance to be free of defects in material and workmanship for

a period of two years from the date of original purchase at retail.

If the appliance exhibits such a defect, Oral-B Braun will, at its option, repair or replace it

without cost for parts and labor. The product must be carried in or shipped, prepaid and

insured (recommended), to an authorized Oral-B Braun Service Center. Proof of date of

original purchase is required.

The cost to ship the product to an authorized Service Center is the responsibility of the

consumer, the cost to return the product to the consumer is the responsibility of Oral-B

Braun.

This warranty does not cover finishes or normal wear, nor does it cover damage resulting

from accident, misuse, dirt, water, tampering, unreasonable use, service performed or

attempted by unauthorized service agencies, failure to provide reasonable and necessary

maintenance, including recharging, or units that have been modified or used for commercial

purposes.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF

MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN

DURATION TO TWO YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL

ORAL-B BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM

THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages,

so the above limitation may not apply to you. This warranty gives you specific legal rights,

and you may have other legal rights which vary from state to state.

How to obtain service in the USA

Should this product require service, please call 1-800-566-7252 to be referred to the

authorized Oral-B Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the authorized Oral-B Braun Service Center of your choice or,

B. Ship the product to the authorized Oral-B Braun Service Center of your choice. Pack the

product well. Ship the product prepaid and insured (recommended). Include a copy of

your proof of purchase to verify warranty coverage, if applicable.

Declaration of conformity

This appliance complies with part 15 of the FCC rules. Operation is subject to the following

two conditions: (1) this appliance may not cause harmful interference, and (2) this appliance

must accept any interference received, including interference that may cause undesired

operation.

Display unit: Tested to comply with FCC standards. FOR HOME OR OFFICE USE.

To change or modify any part of this appliance could void the authority to operate the

equipment.

3738_FCC_1_D30_NA.indd 113738_FCC_1_D30_NA.indd 11 25.04.2007 14:07:17 Uhr25.04.2007 14:07:17 Uhr

12

FOR CANADA ONLY

Limited 2-Year Warranty

In the event this appliance fails to function within the specified warranty period because of

defects in material or workmanship, and the consumer returns the unit to an authorized

service center, Braun Canada will, at its option either repair or replace the unit without

additional charge to the consumer. This warranty does not cover any product which has

been damaged by dropping, tampering, servicing performed or attempted by unauthorized

service agencies, misuse or abuse. This warranty excludes units which have been modified

or used for commercial purposes.

To the extent allowed by law, Braun Canada shall not be responsible for loss of the

product, loss of time, inconvenience, commercial loss, special or consequential damages.

The provisions of this warranty are in addition to and not a modification of or subtraction

from the statutory warranties and other rights and remedies contained in applicable

provincial legislation.

How to obtain service in Canada

Should this product require service, please call 1-800-566-7252 to be referred to the

authorized Oral-B Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the authorized Oral-B Braun Service Center of your choice or,

B. Ship the product to the authorized Oral-B Braun Service Center of your choice. Pack the

product well. Ship the product prepaid and insured (recommended). Include a copy of

your proof of purchase to verify warranty coverage, if applicable.

Declaration of conformity

Operation is subject to the following two conditions: (1) this appliance may not cause

harmful interference, and (2) this appliance must accept any interference received, including

interference that may cause undesired operation.

3738_FCC_1_D30_NA.indd 123738_FCC_1_D30_NA.indd 12 25.04.2007 14:07:17 Uhr25.04.2007 14:07:17 Uhr
