Chassis

Basic Model

Model

• L65A(N)=Excalilbur

• HLRS078WX/XAA

• HLR6768WX/XAA (HL-R6768W)

Manual

HD Built in TV

m NTSC/ATSC/QAM Tuner Embedded

m AV network system (Anynet, D-Net)

mTV Guide On ScreenTMsystem

(Gemstar EPG)

mDigitalAudio output (OPTICAL)jack

m Cable CARDTMslot

m Firmware upgrade by USB Port

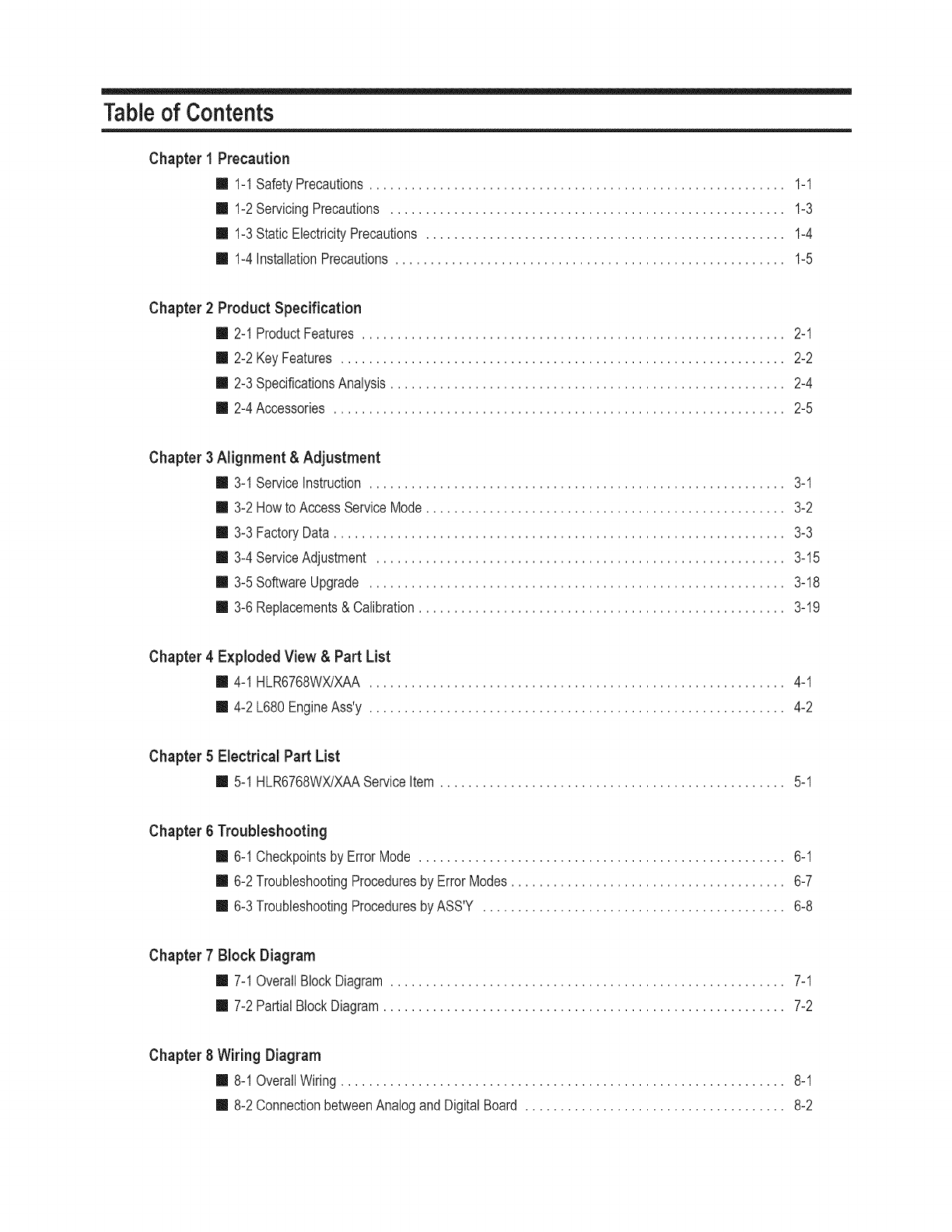

Tableof Contents

Chapter 1 Precaution

1-1SafetyPrecautions………………………………………………….. 1-1

m 1-2ServicingPrecautions ……………………………………………….. 1-3

m 1-3StaticElectricityPrecautions …………………………………………… 1-4

m 1-4InstallationPrecautions………………………………………………. 1-5

Chapter 2 Product Specification

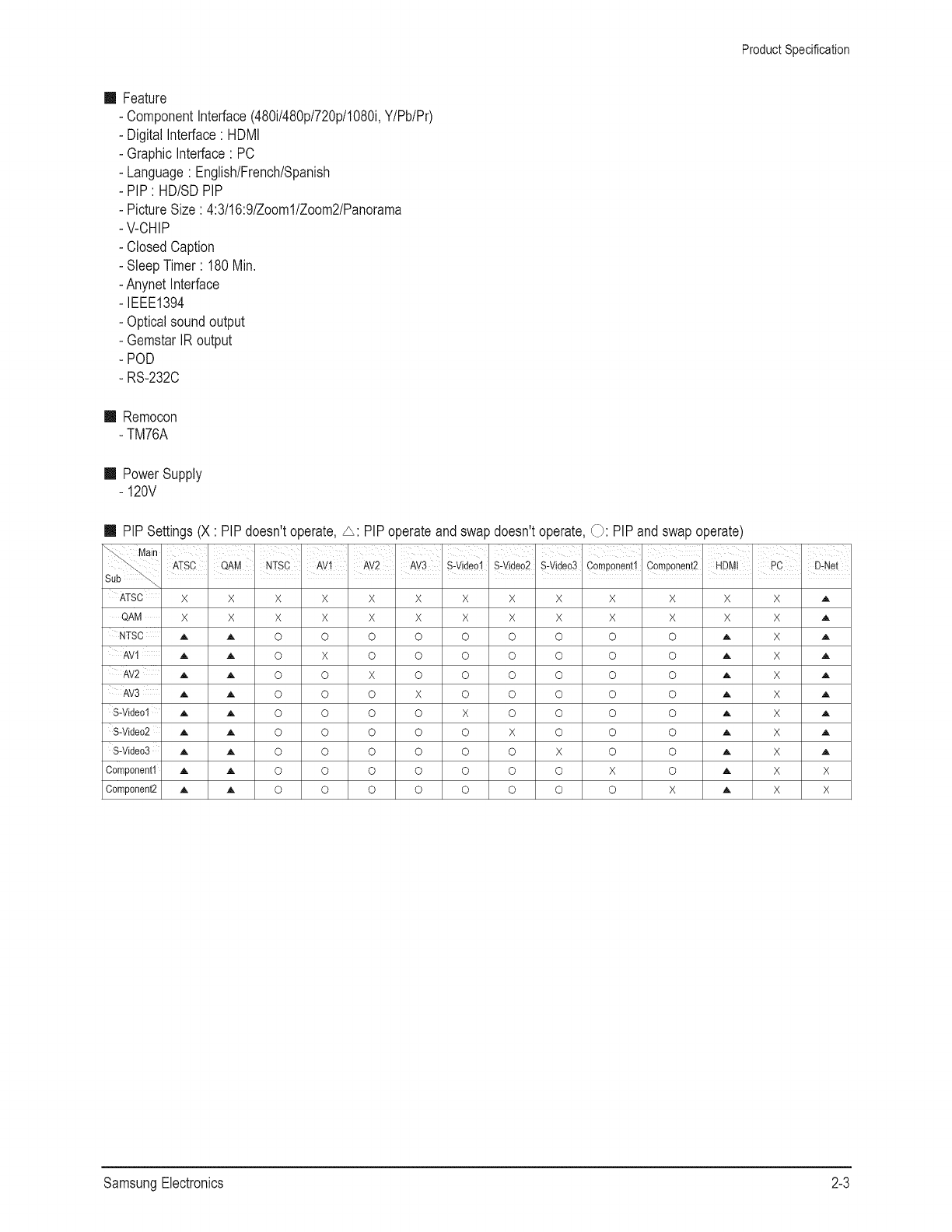

m 2-1 ProductFeatures …………………………………………………… 2-1

m 2-2 KeyFeatures ……………………………………………………… 2-2

m 2-3SpecificationsAnalysis……………………………………………….. 2-4

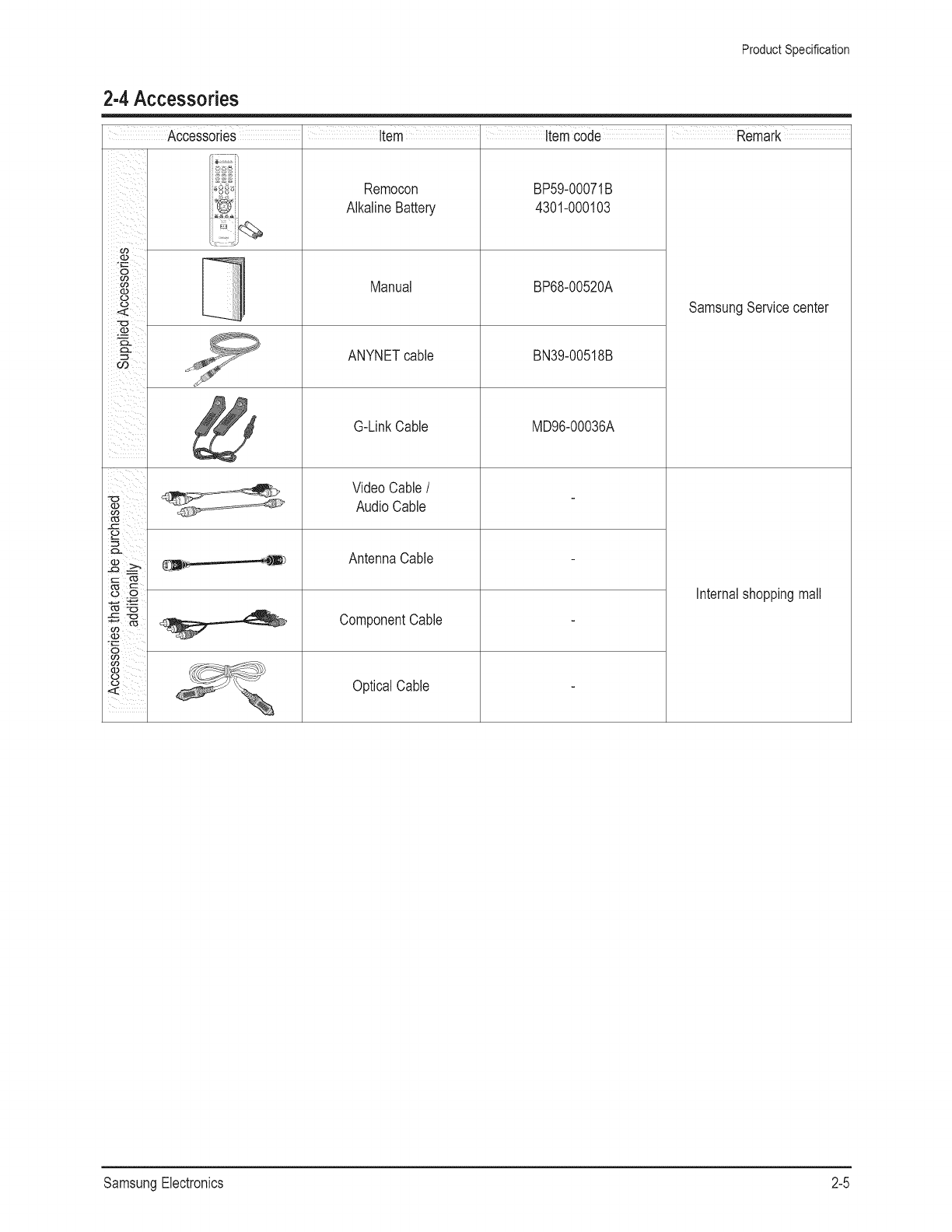

m 2-4Accessories ………………………………………………………. 2-5

Chapter 3Alignment & Adjustment

m 3-I ServiceInstruction ………………………………………………….. 3-1

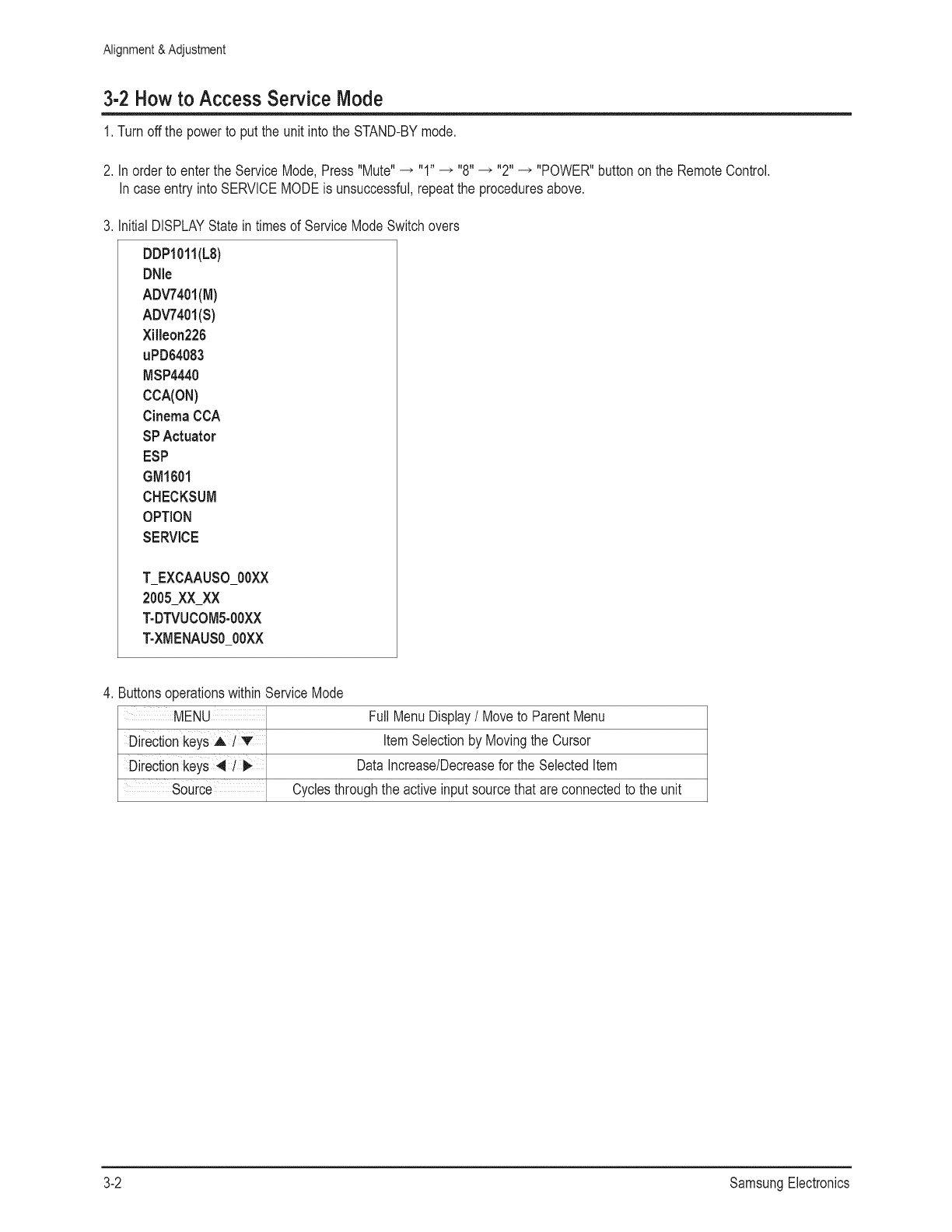

m 3-2 Howto AccessServiceNode …………………………………………… 3-2

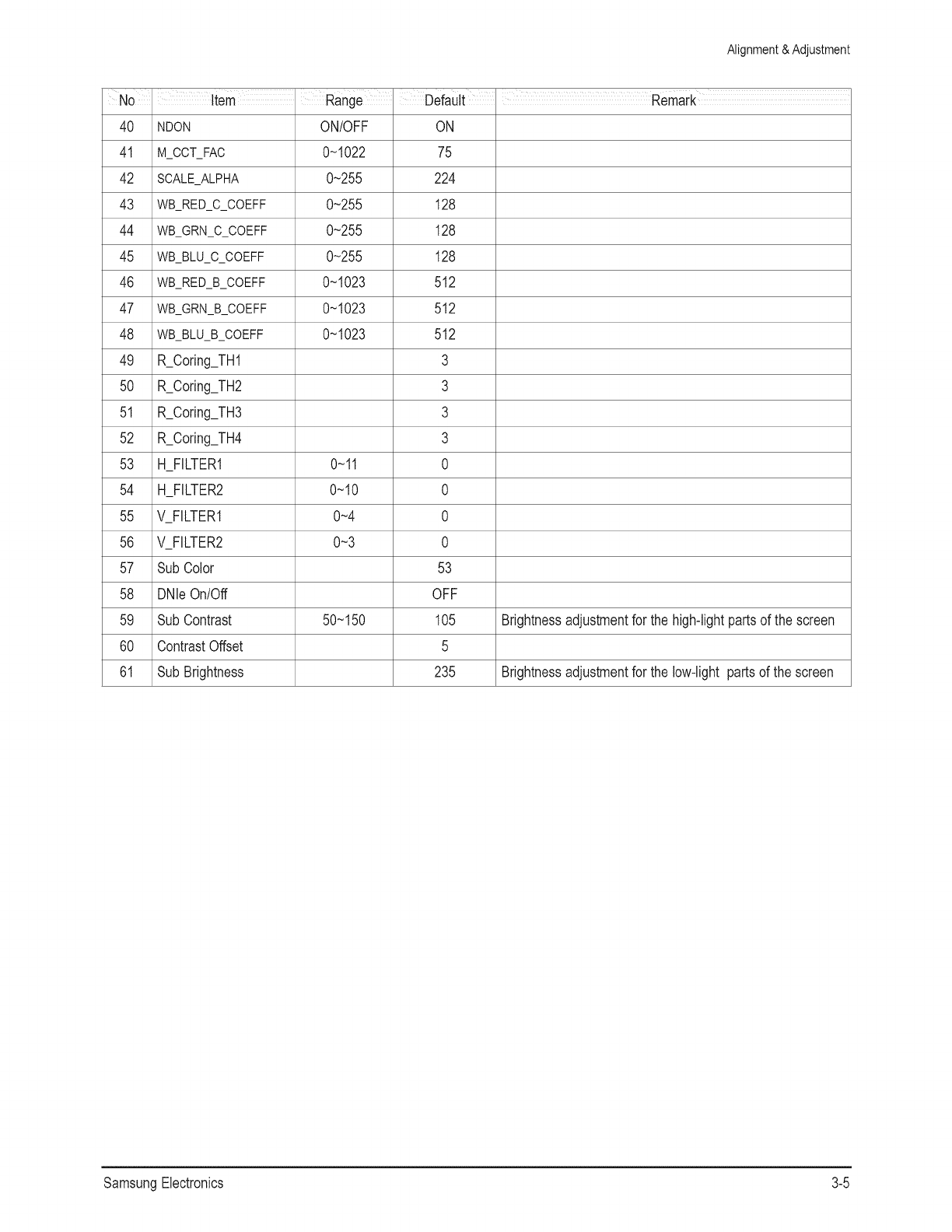

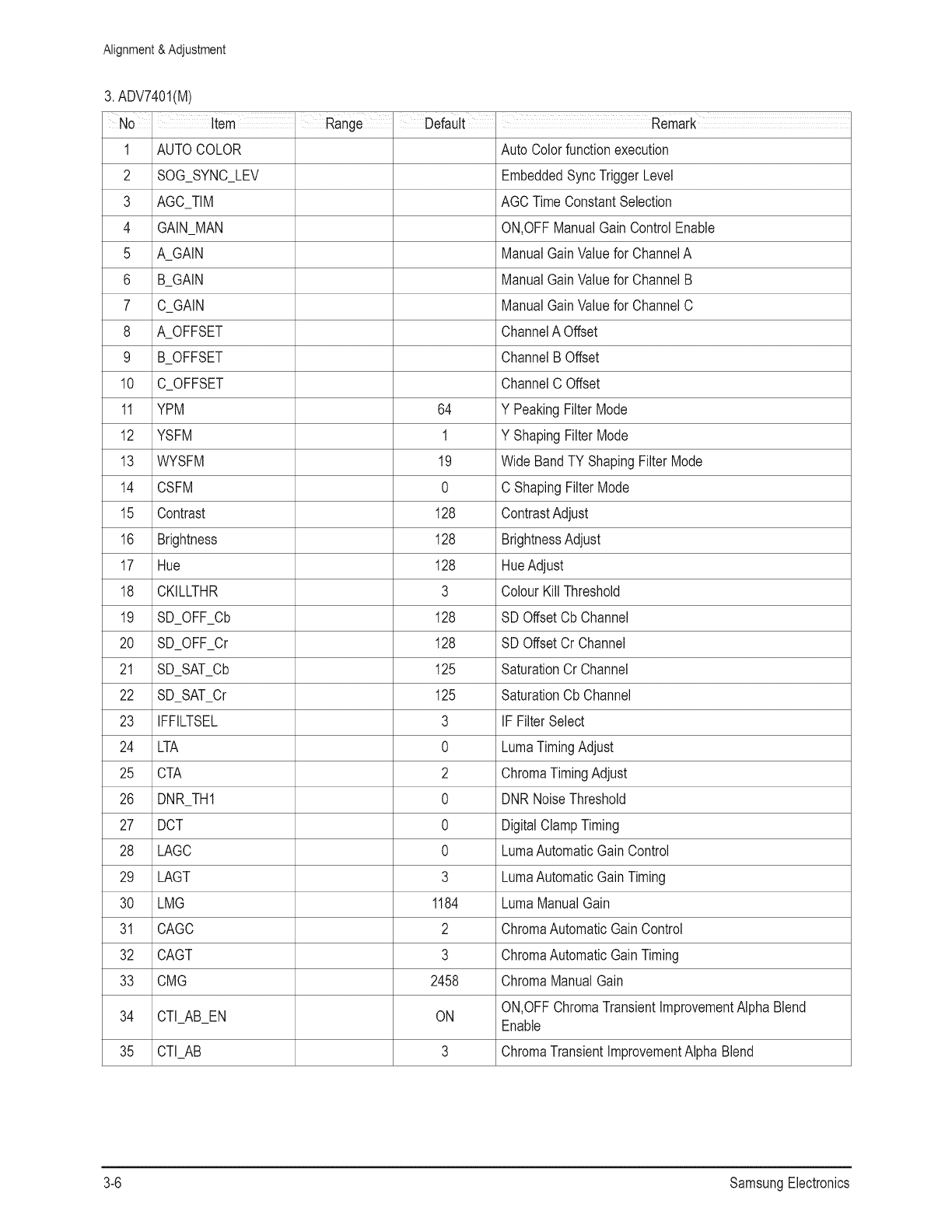

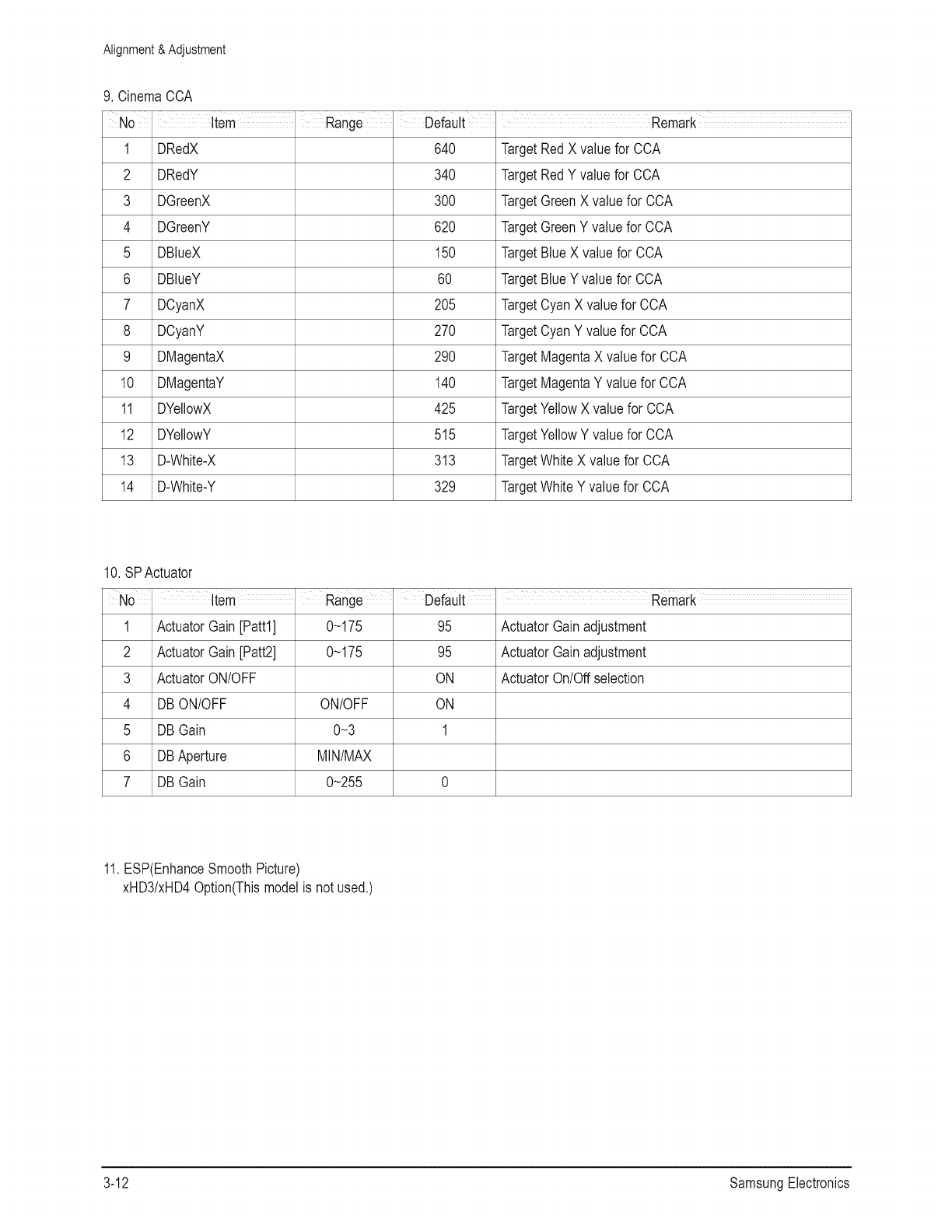

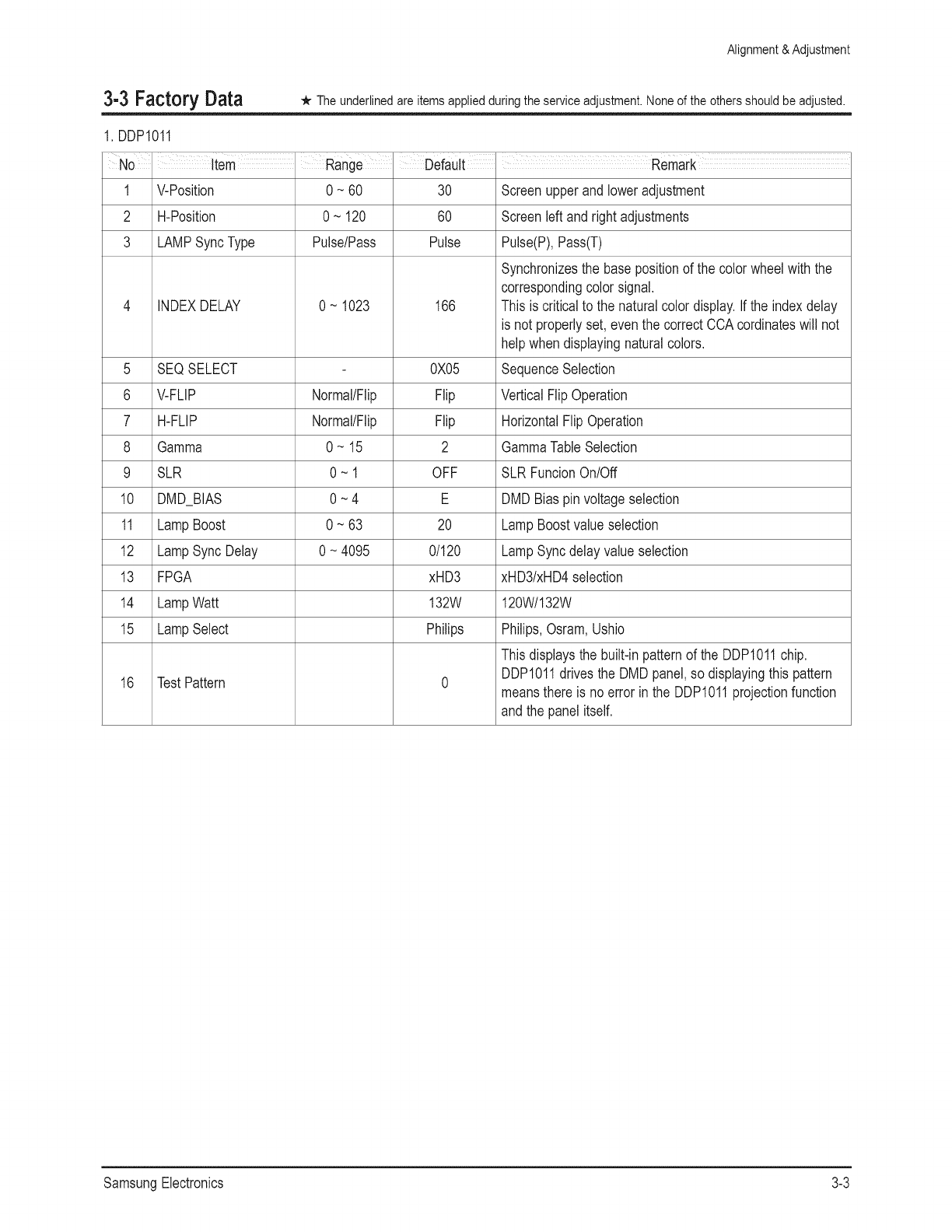

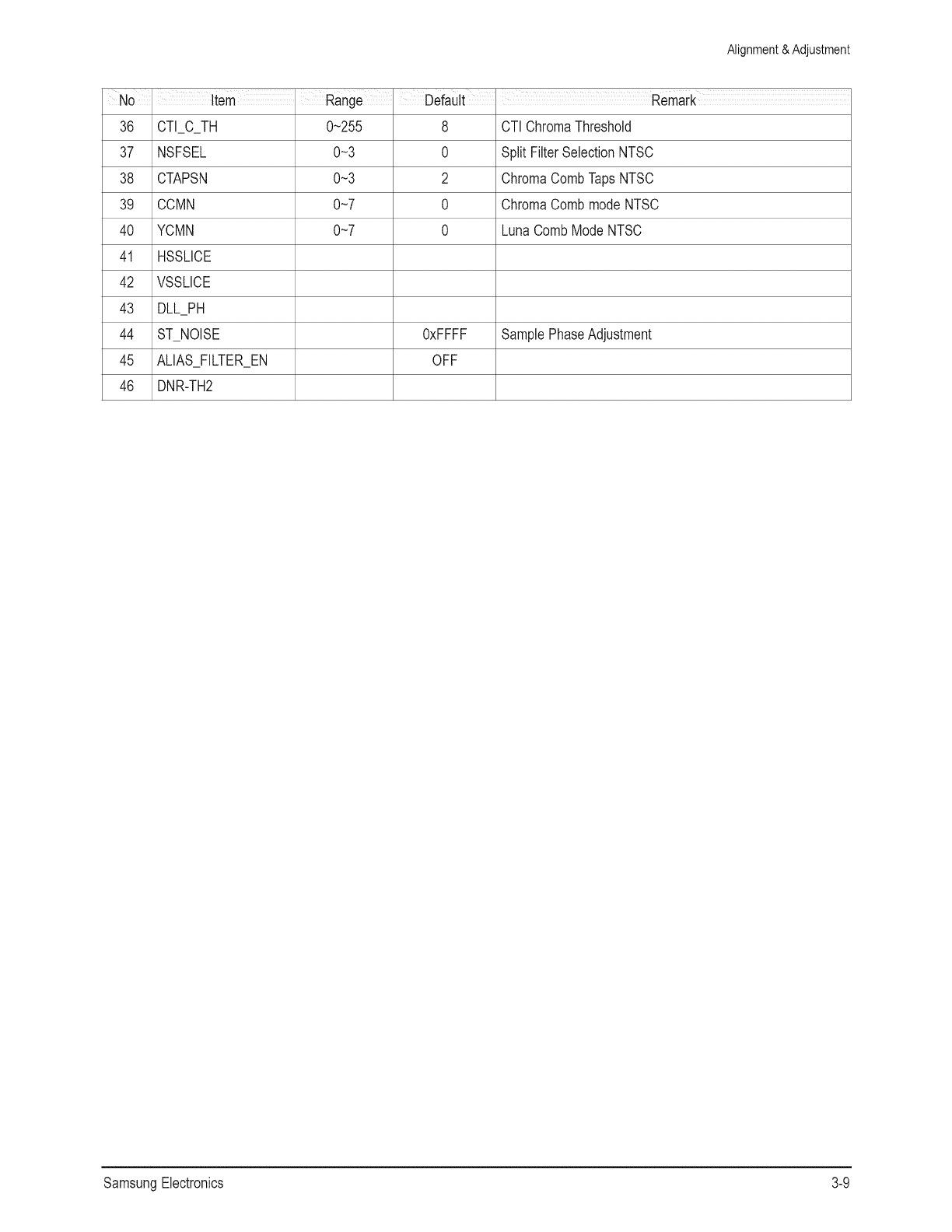

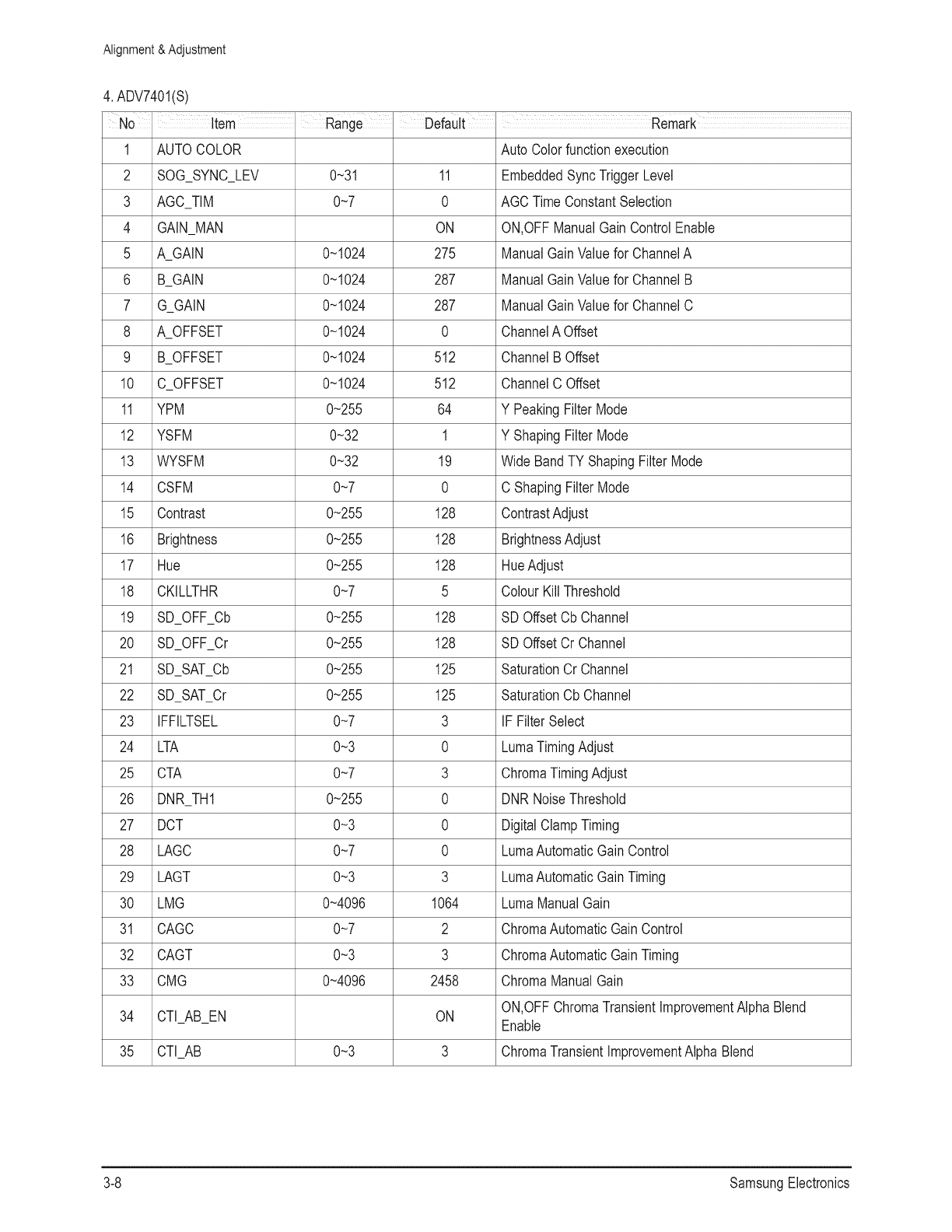

m 3-3 FactoryData………………………………………………………. 3-3

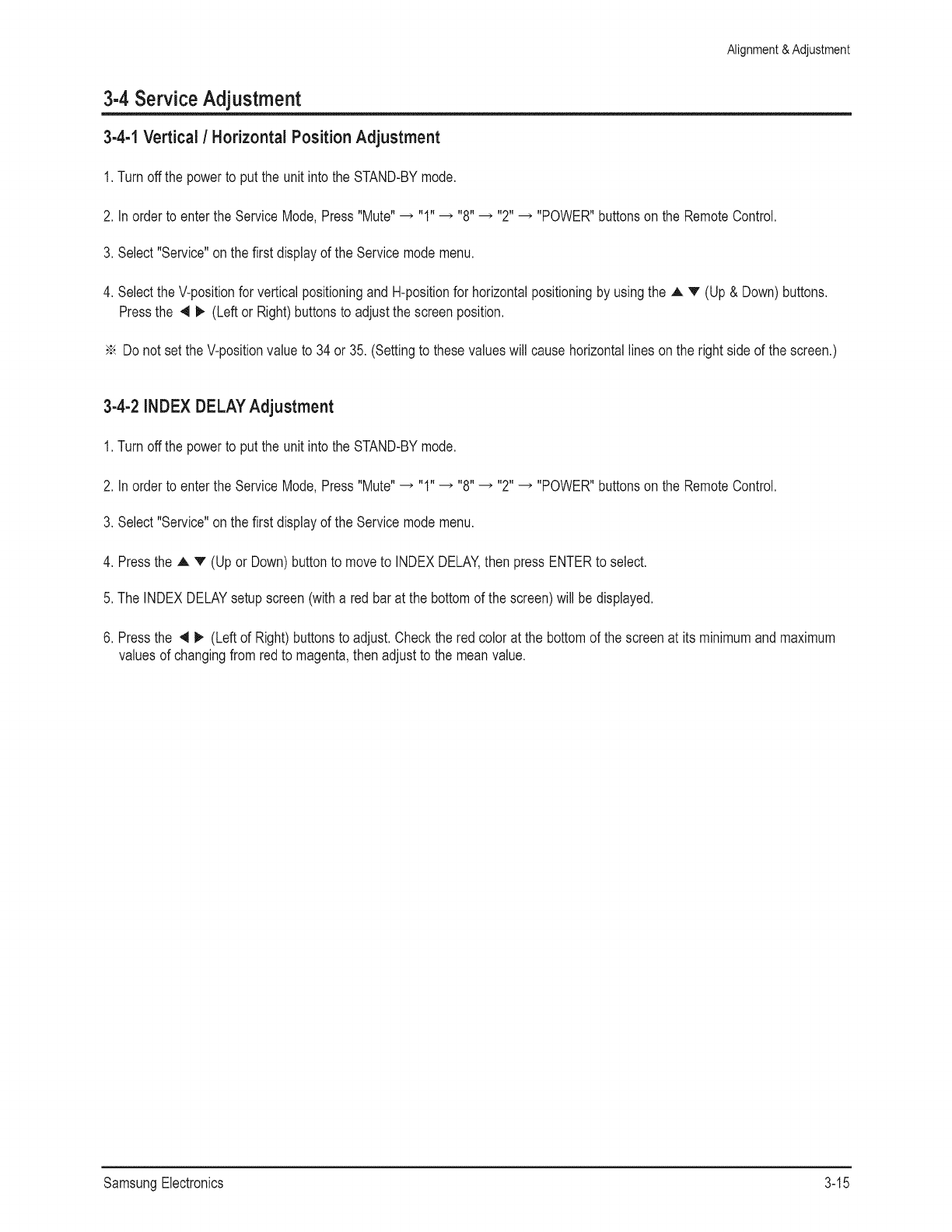

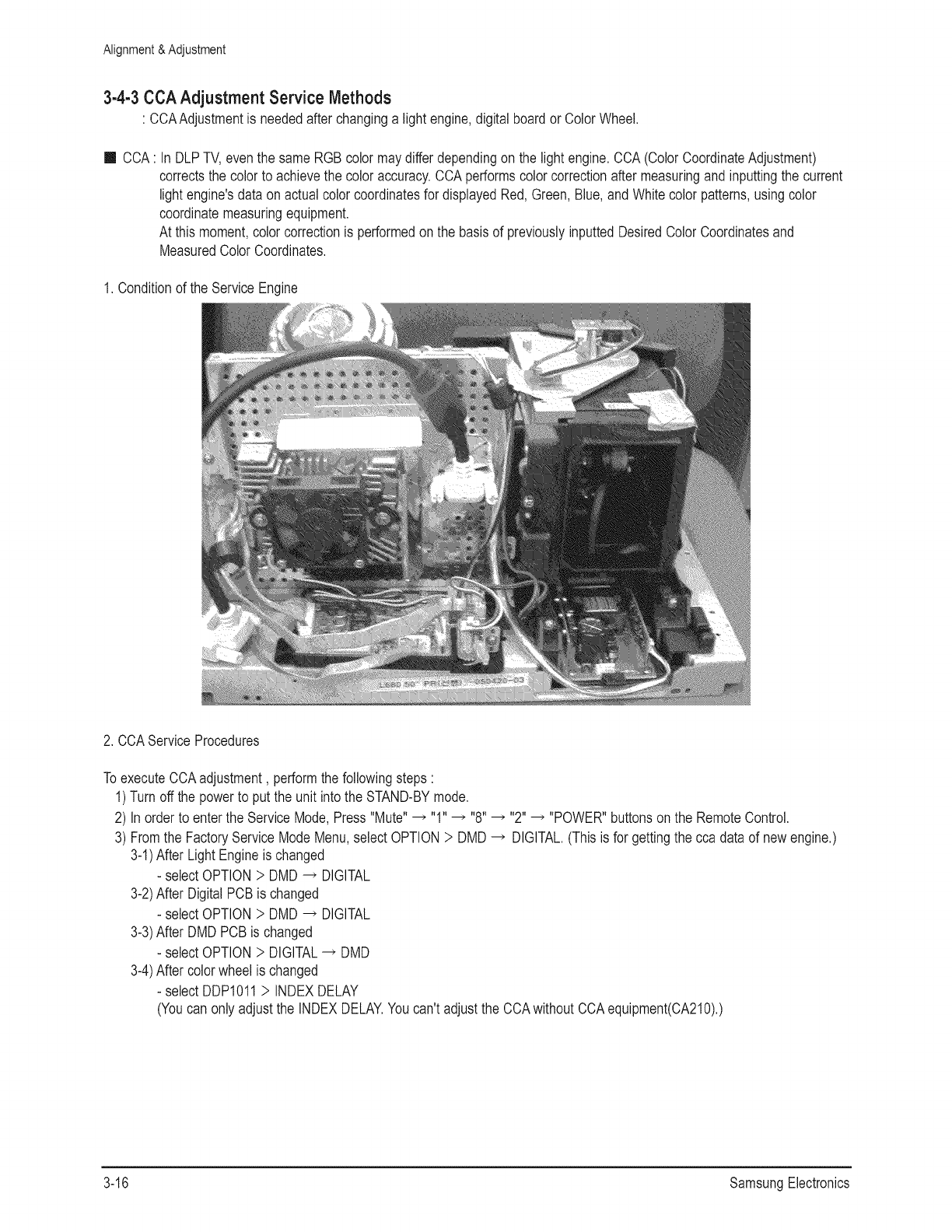

m 3-4ServiceAdjustment …………………………………………………. 3-15

m 3-5SoftwareUpgrade ………………………………………………….. 3-18

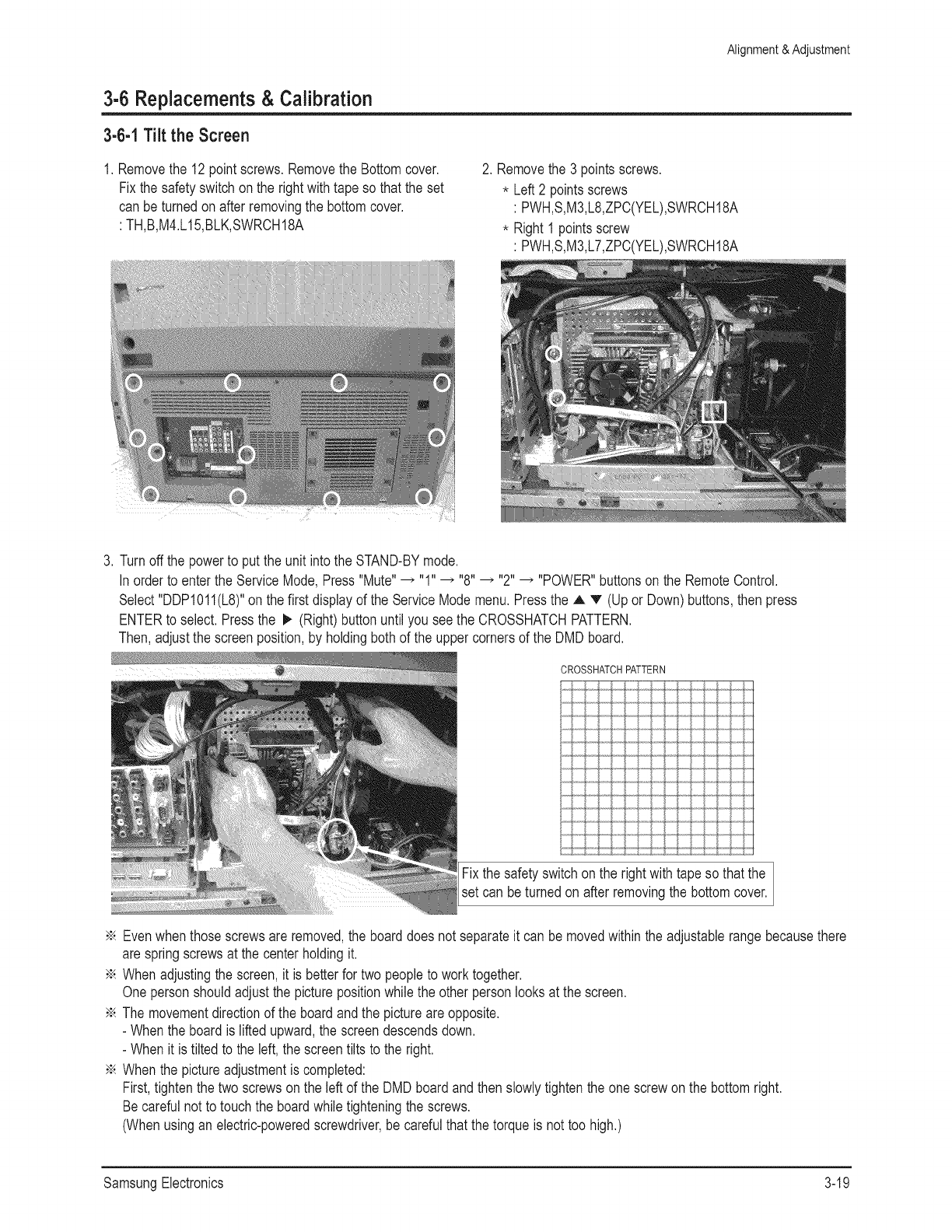

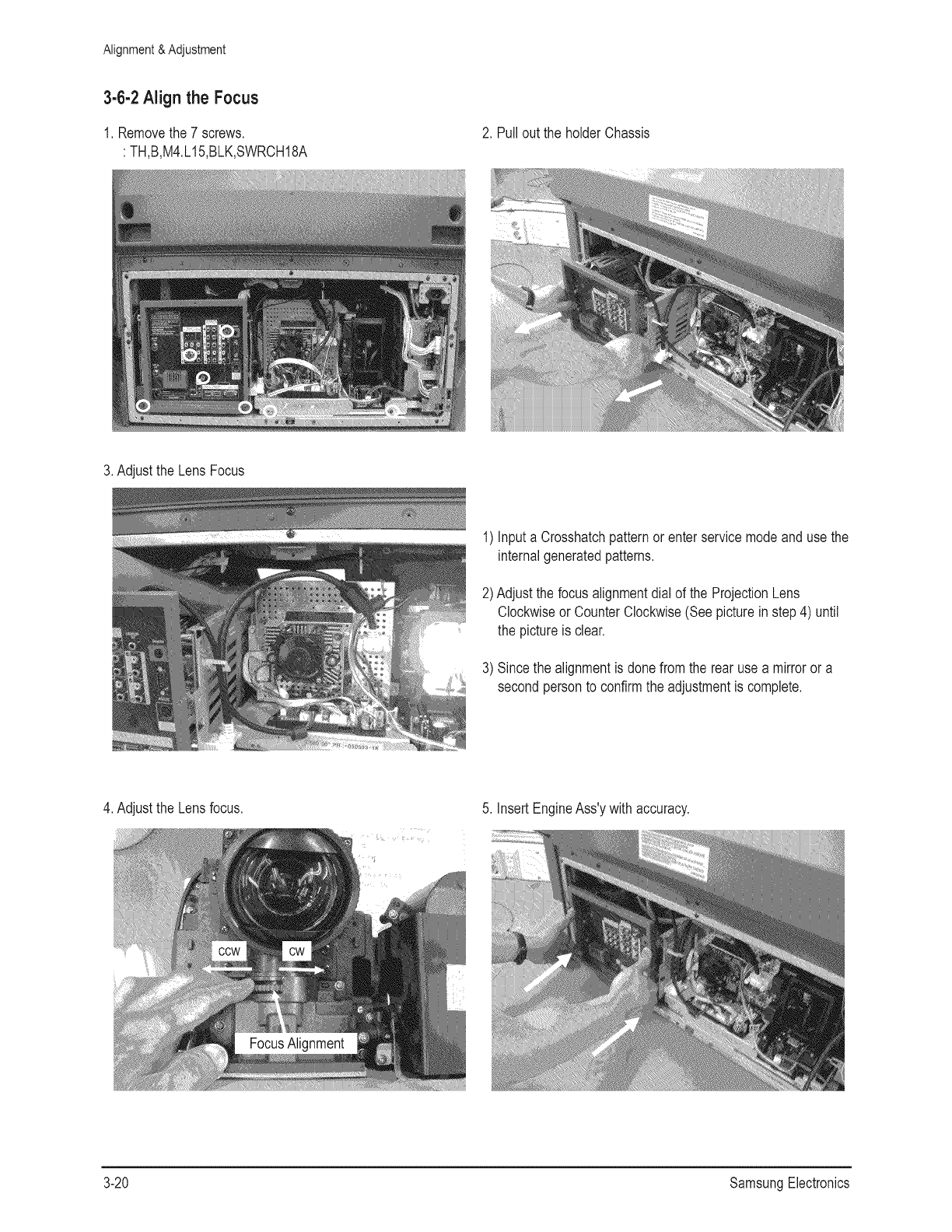

m 3-6 Replacements& Calibration……………………………………………. 3-19

Chapter 4 Exploded View & Part List

m 4-I HLR6768VVX/XAA………………………………………………….. 4-I

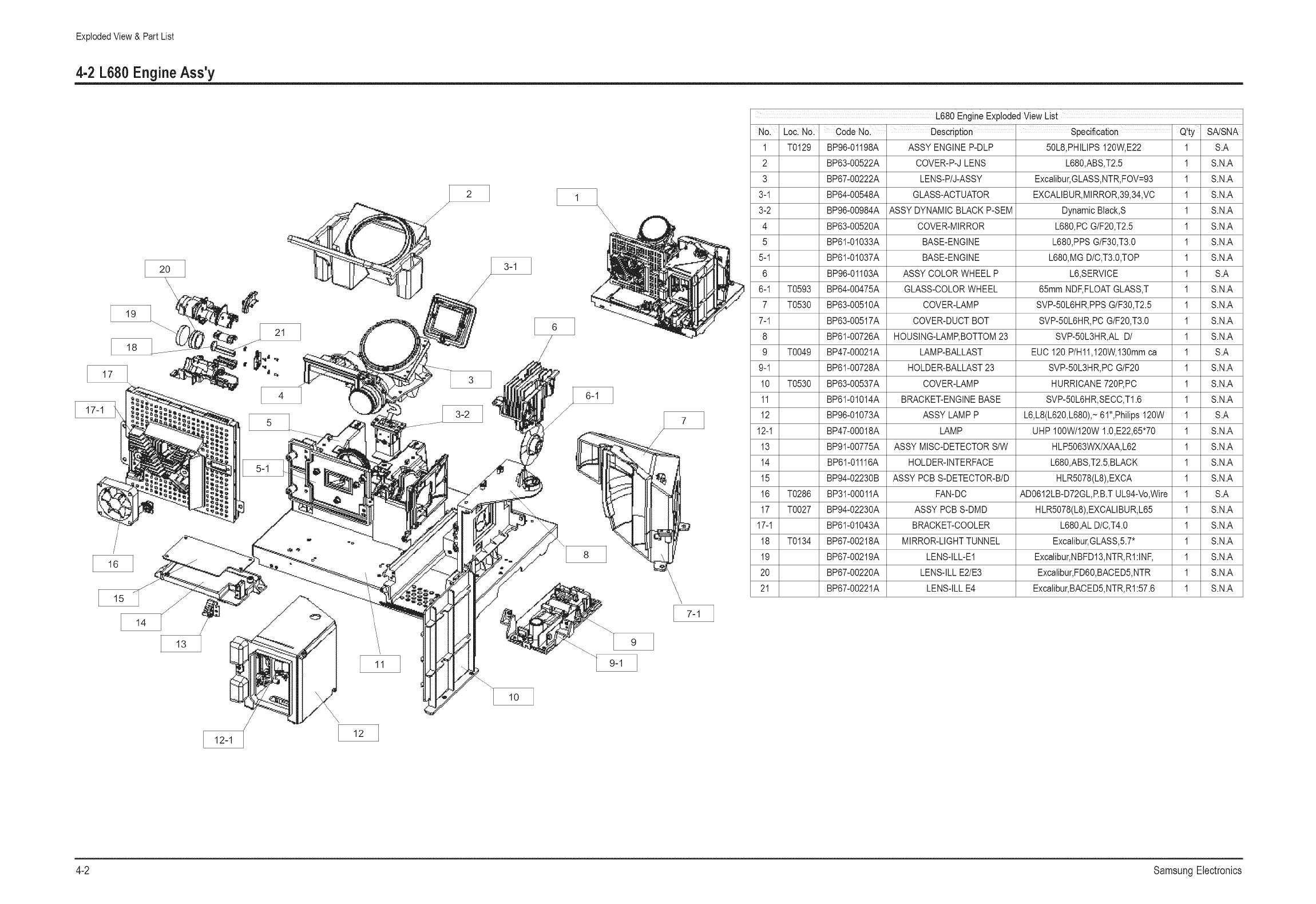

m 4-2 L680EngineAss’y ………………………………………………….. 4-2

Chapter 5 Electrical Part List

m 5-1 HLR6768VVX/XAAServiceItem …………………………………………. 5-1

Chapter 6 Troubleshooting

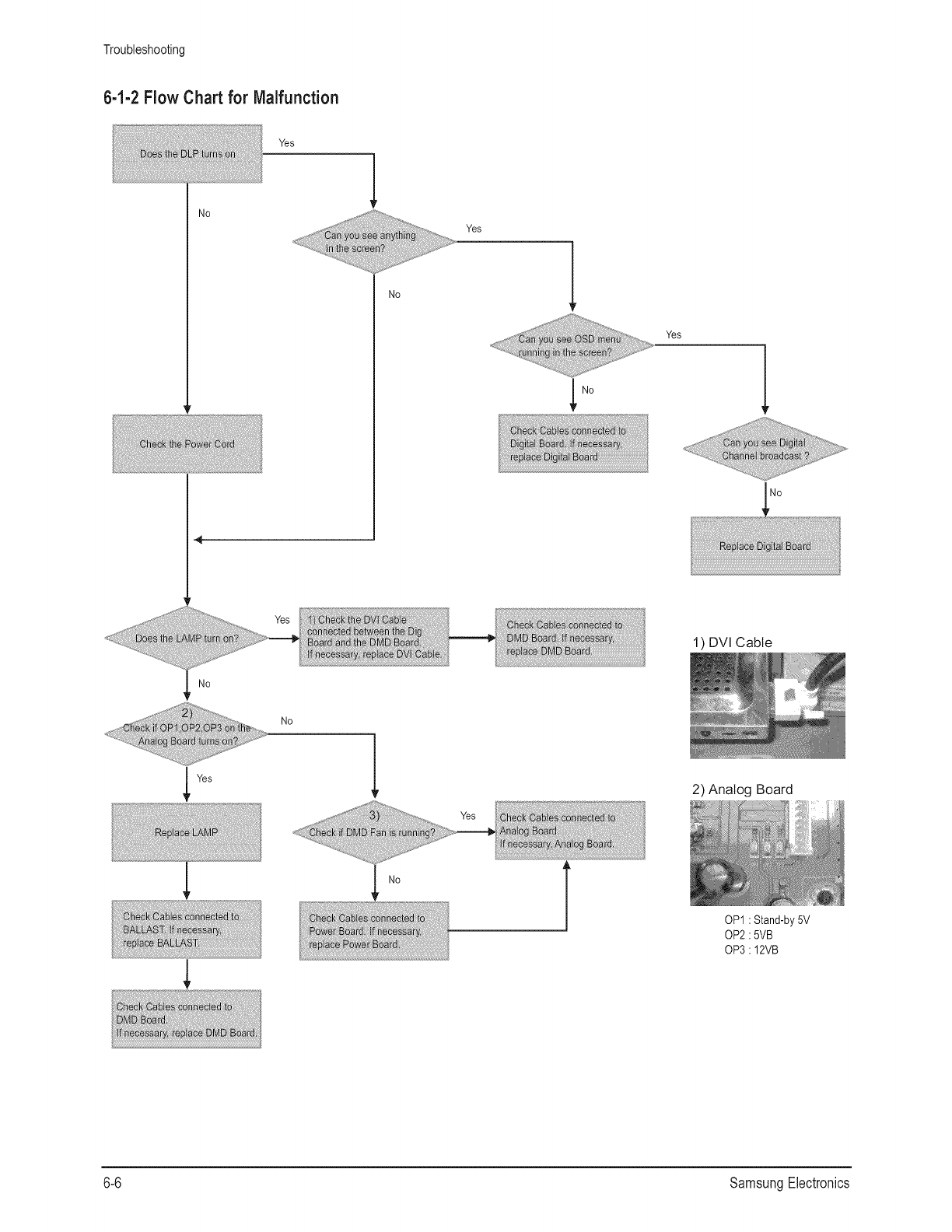

m 6-I Checkpointsby ErrorMode ……………………………………………. 6-1

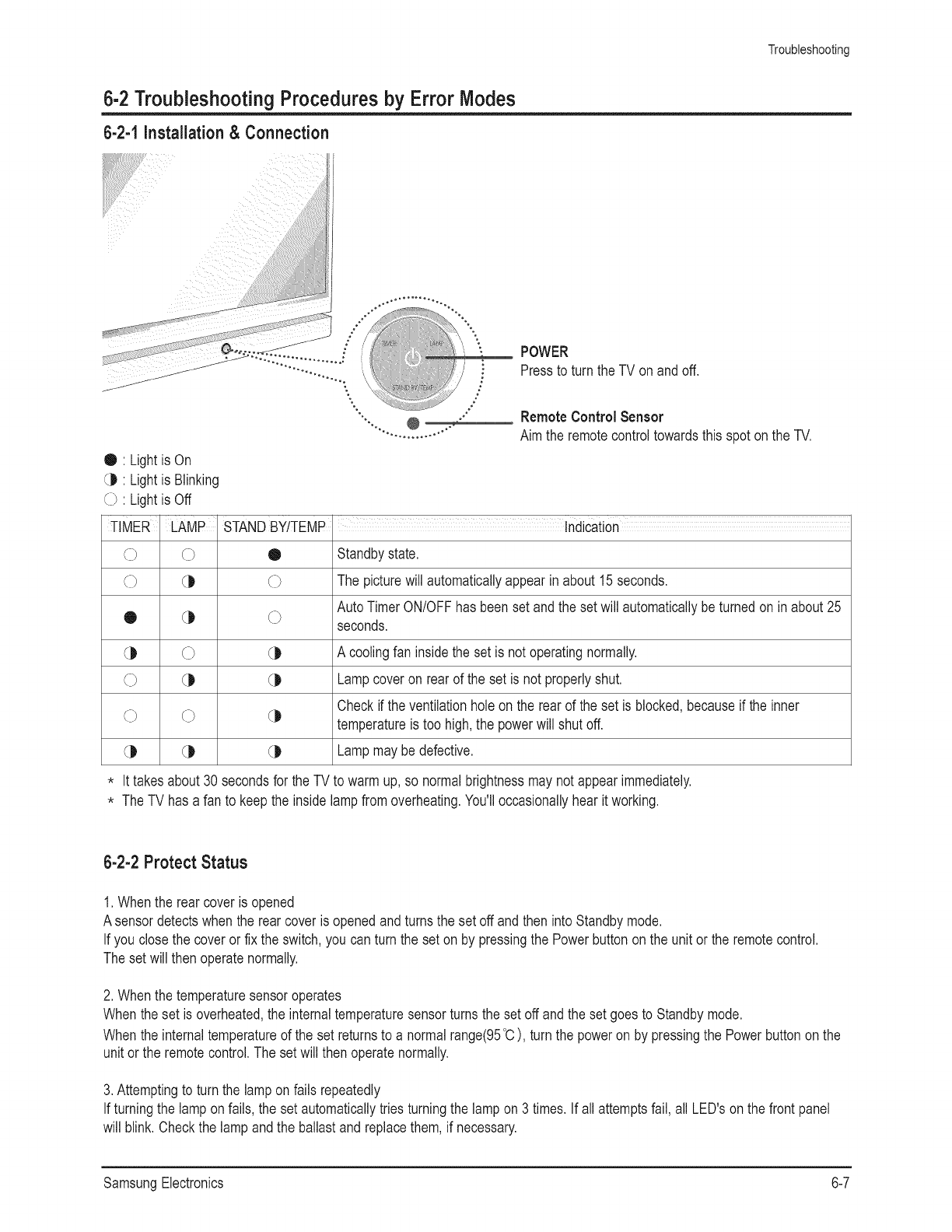

m 6-2TroubleshootingProceduresby ErrorModes………………………………… 6-7

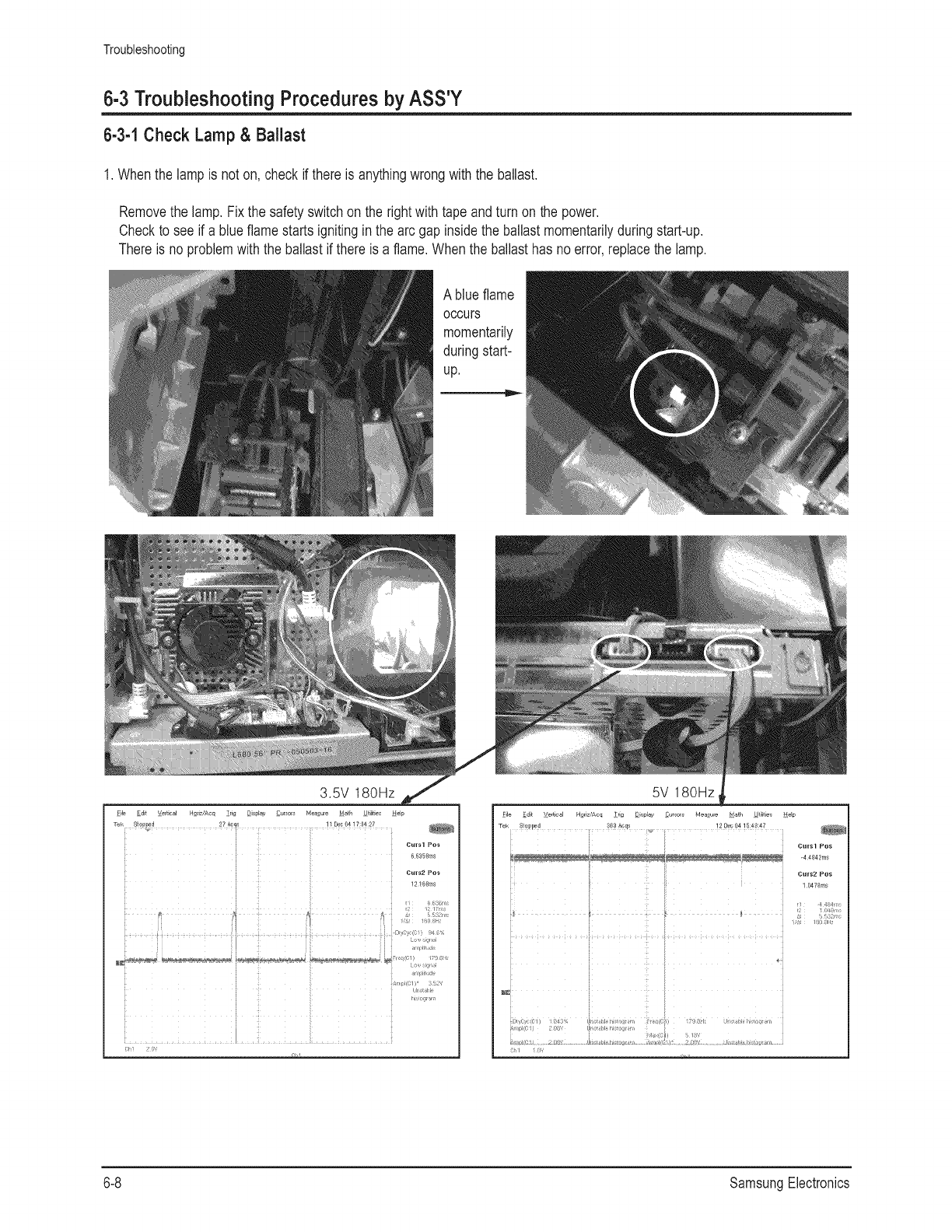

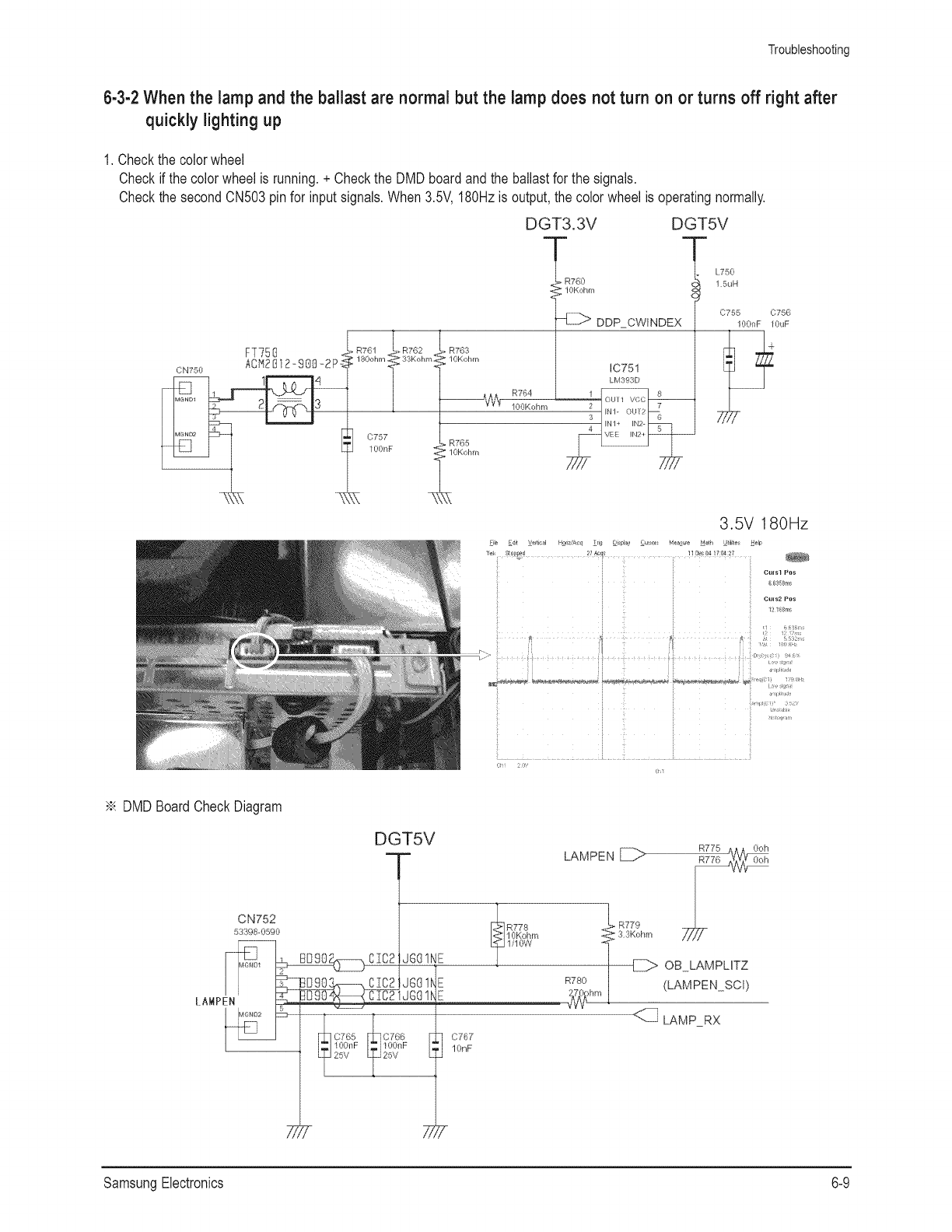

m 6-3TroubleshootingProceduresbyASS’Y ……………………………………. 6-8

Chapter 7 Block Diagram

m 7-1OverallBlockDiagram ……………………………………………….. 7-1

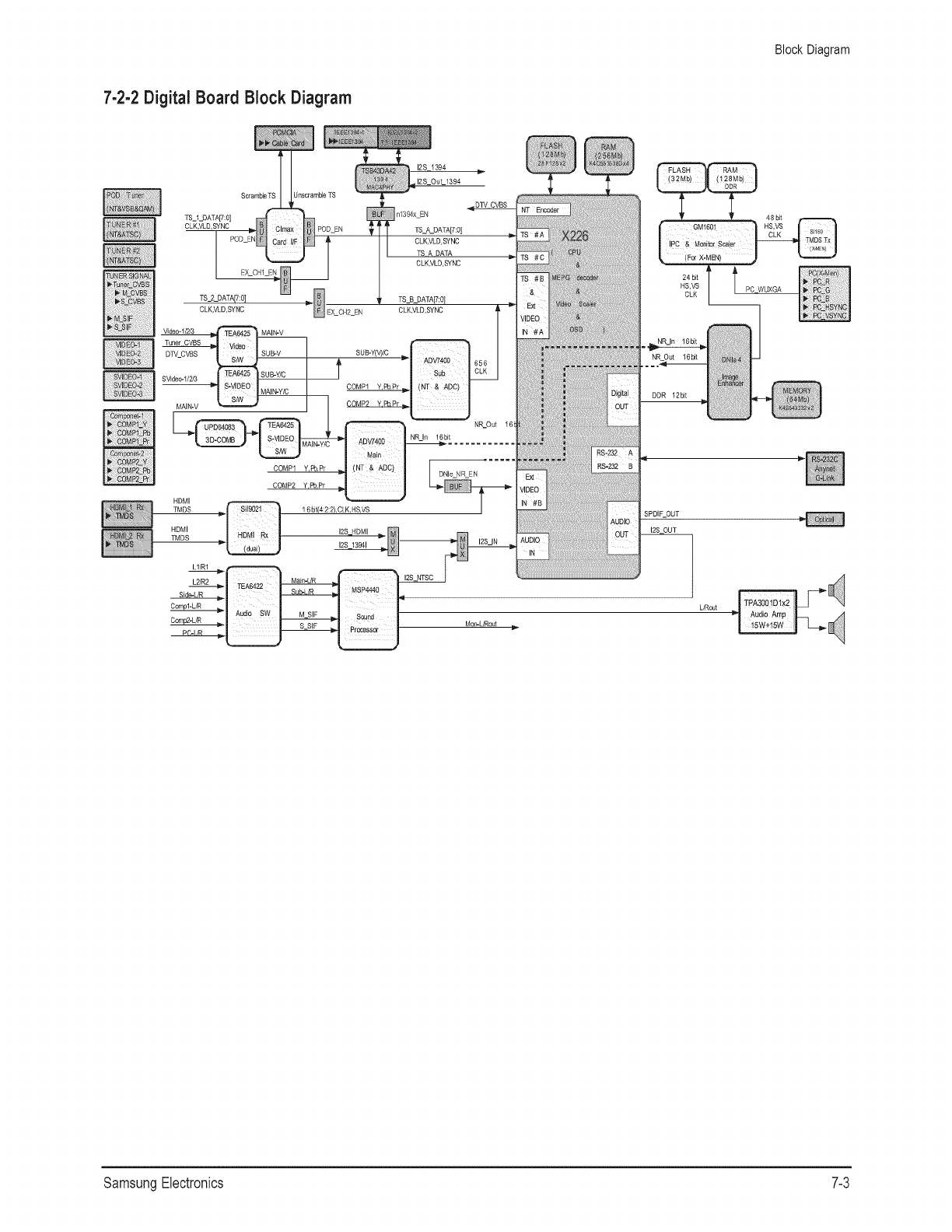

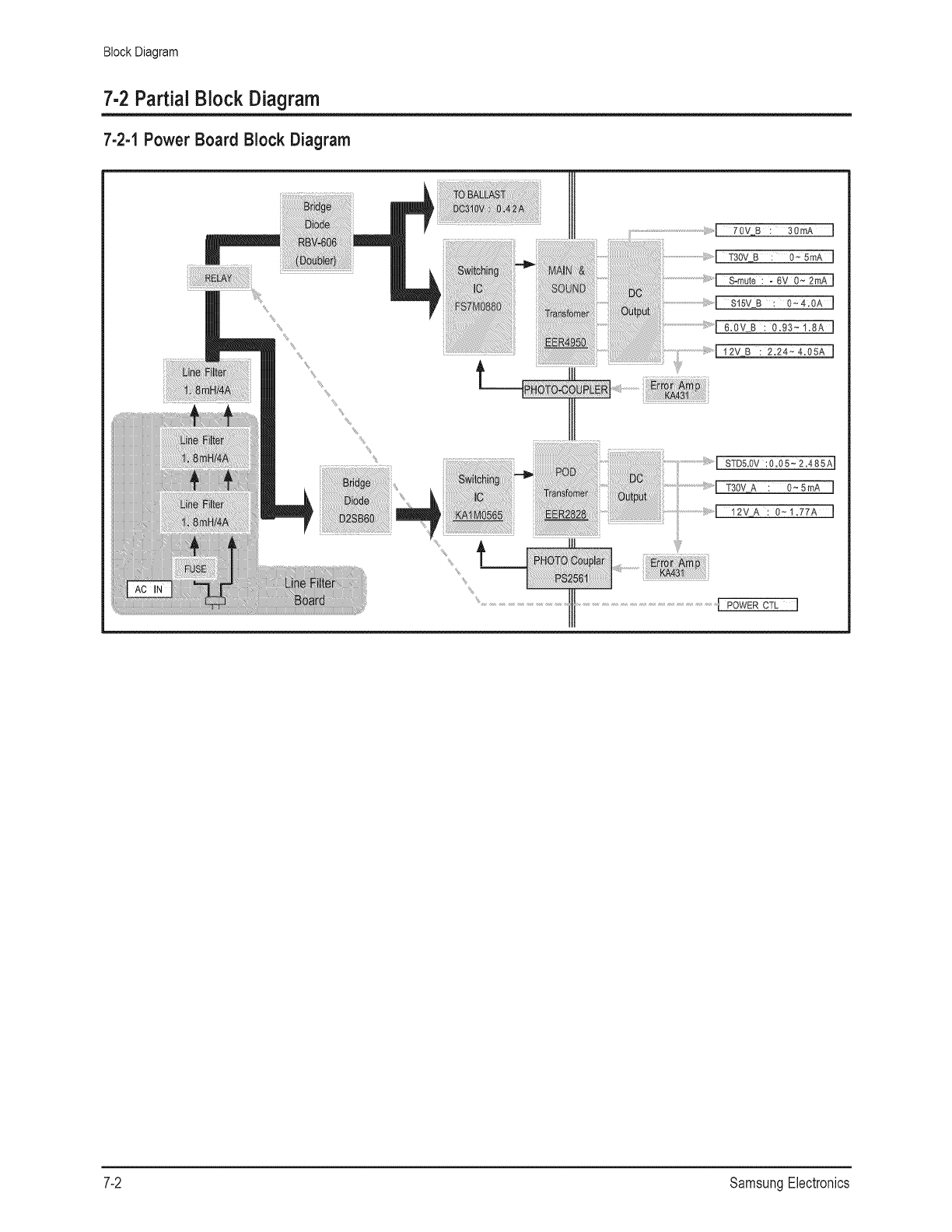

m 7-2 PartialBlockDiagram………………………………………………… 7-2

Chapter 8 Wiring Diagram

m 8-I OverallWiring ……………………………………………………… 8-1

m 8-2ConnectionbetweenAnalogandDigitalBoard ………………………………. 8-2

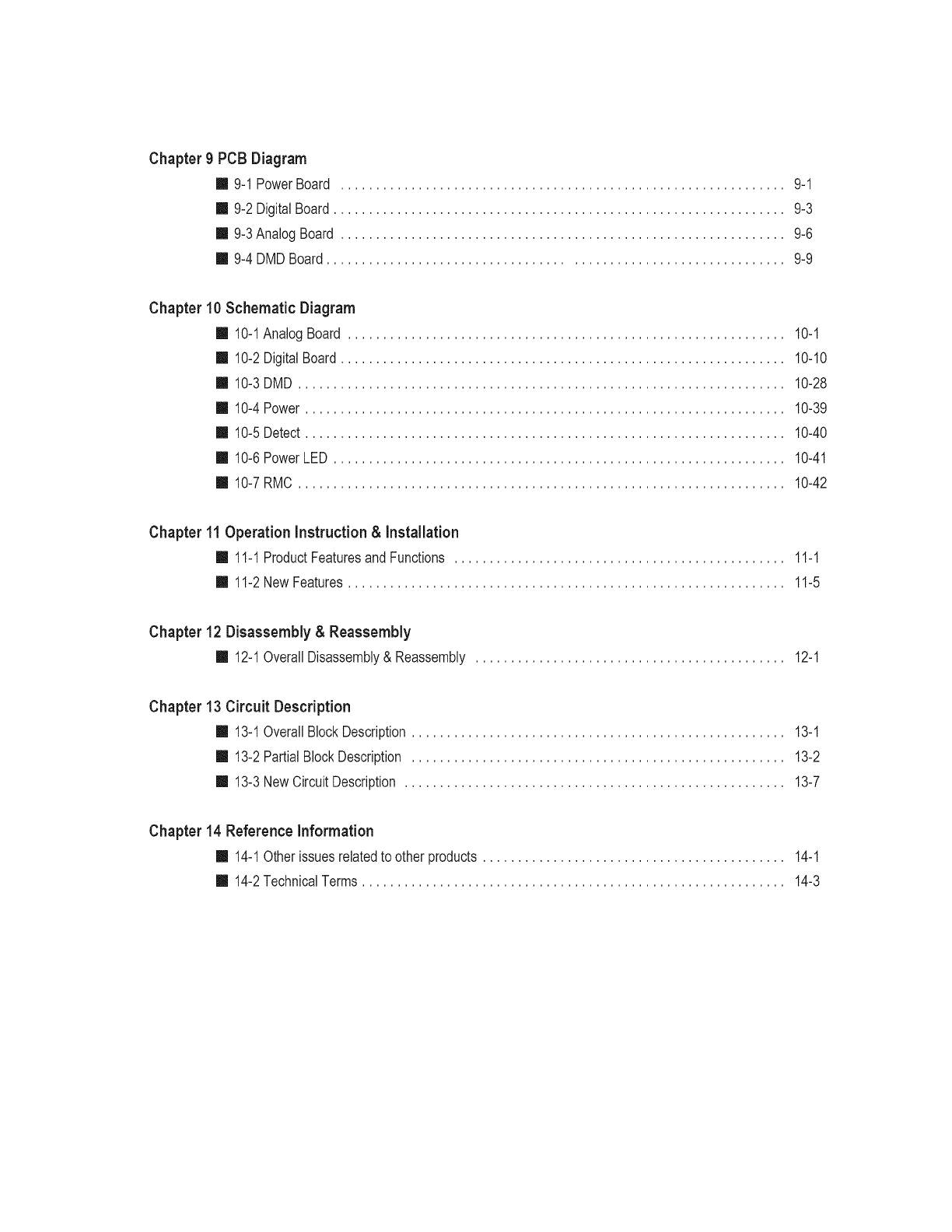

Chapter9PCBDiagram

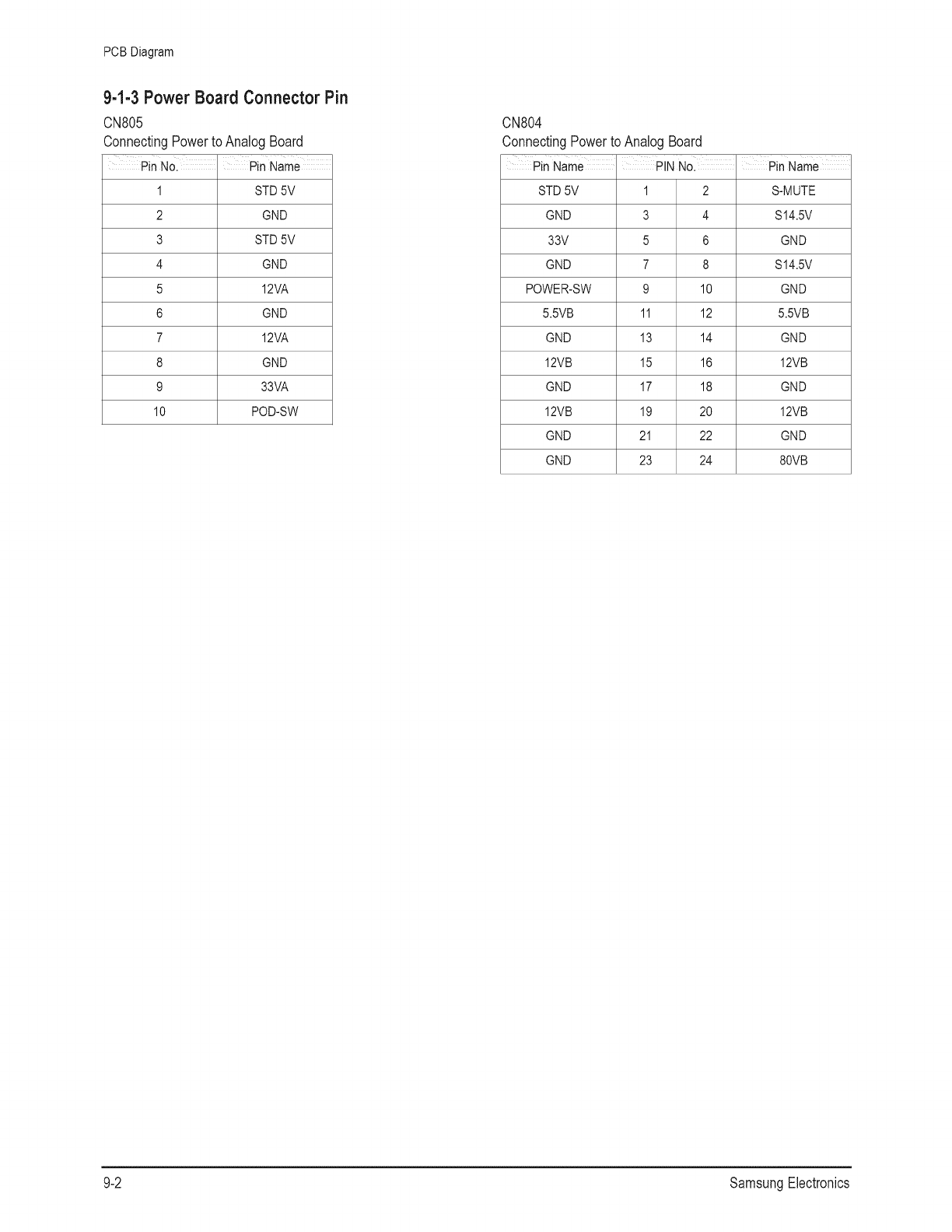

m 9-1 PowerBoard ……………………………………………………… 9-1

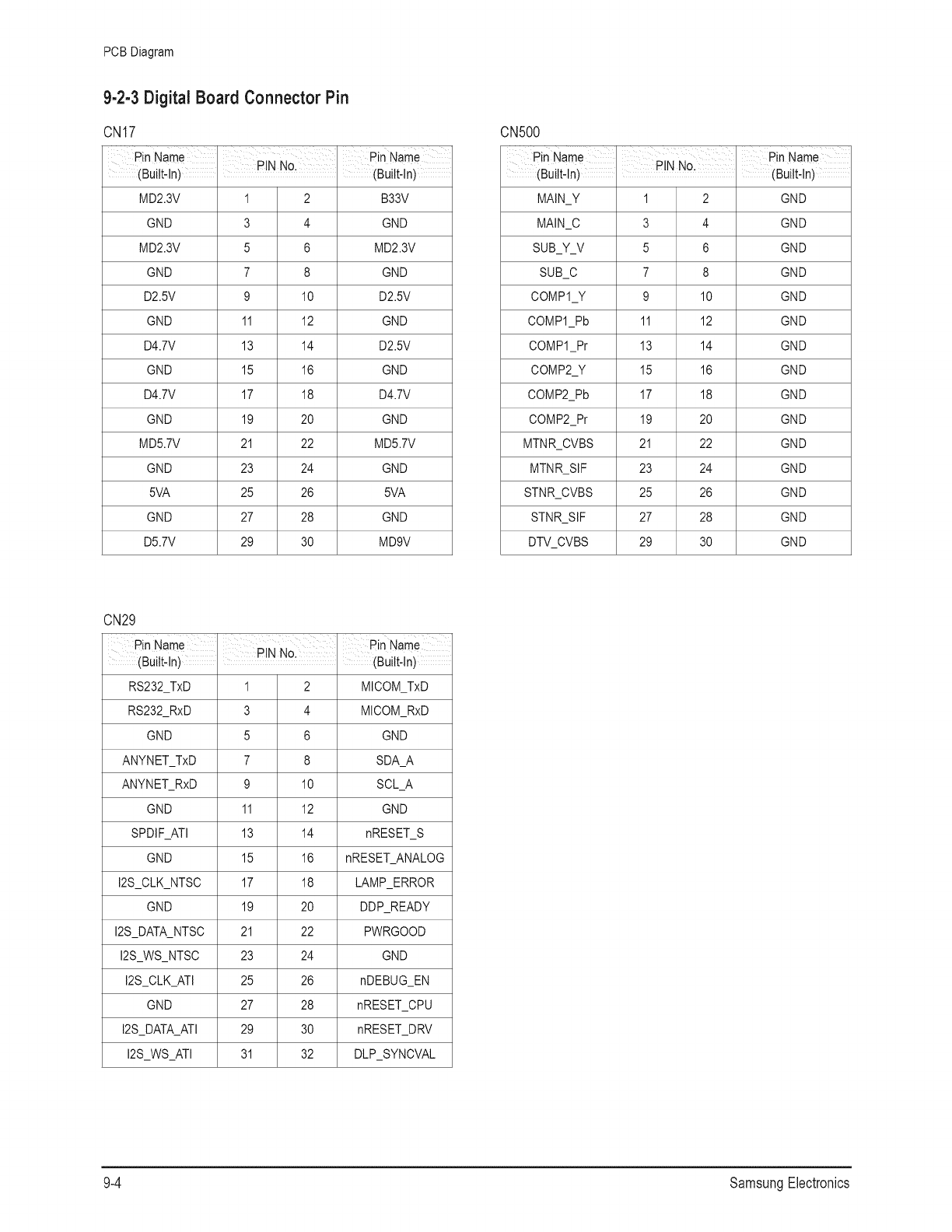

m 9-2 DigitalBoard………………………………………………………. 9-3

m 9-3AnalogBoard ……………………………………………………… 9-6

m 9-4 DMDBoard………………………………………………………. 9-9

Chapter 10 Schematic Diagram

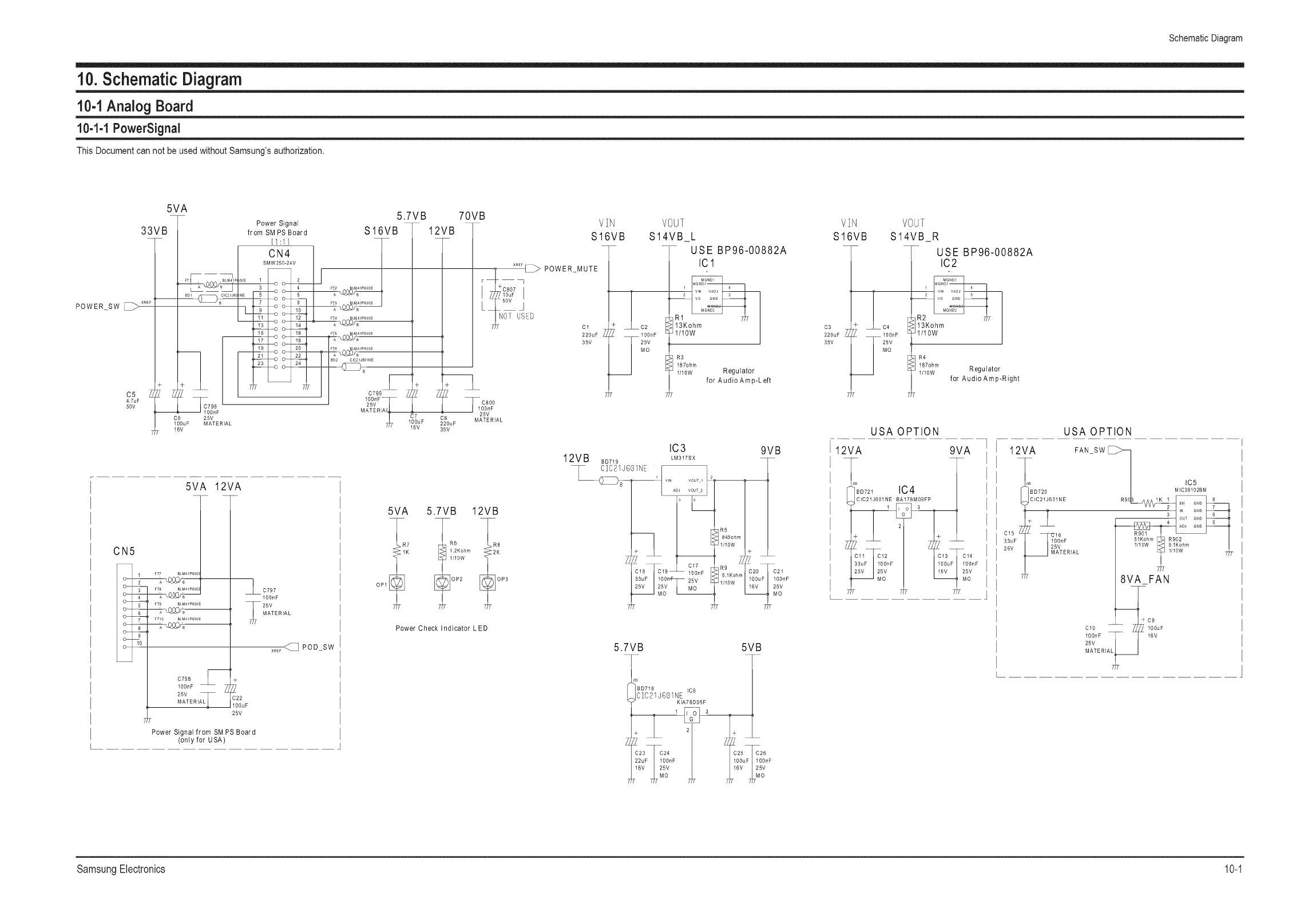

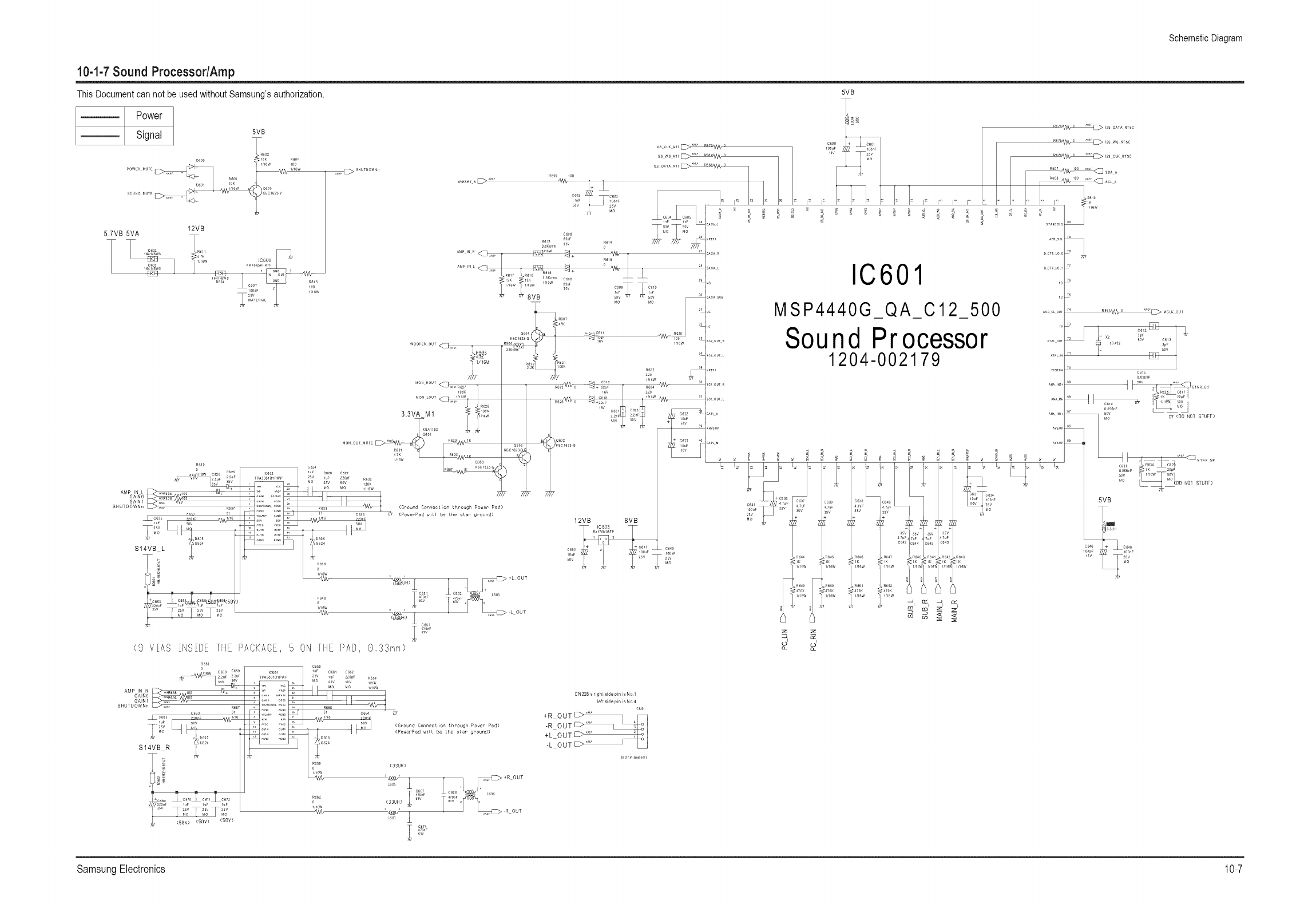

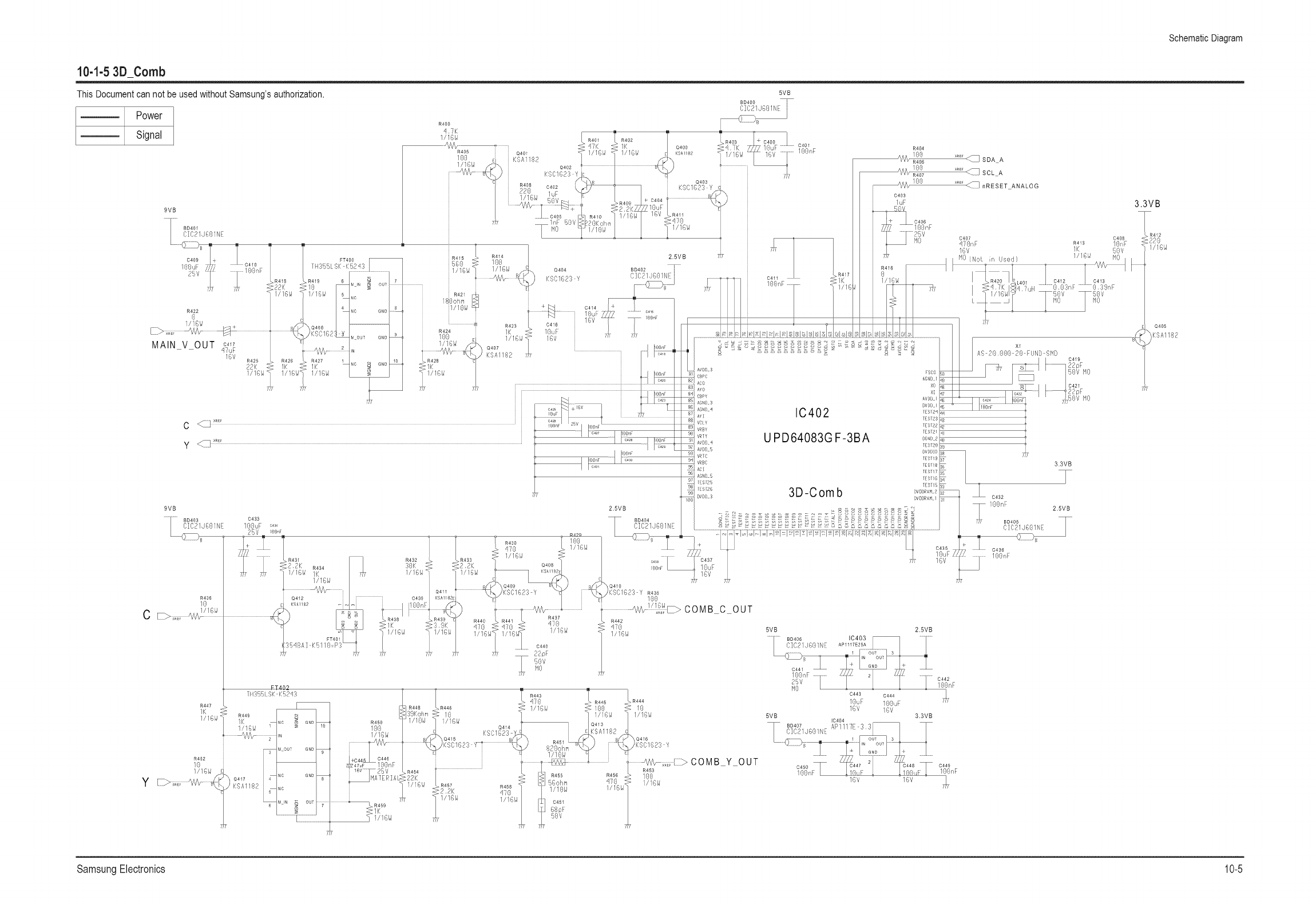

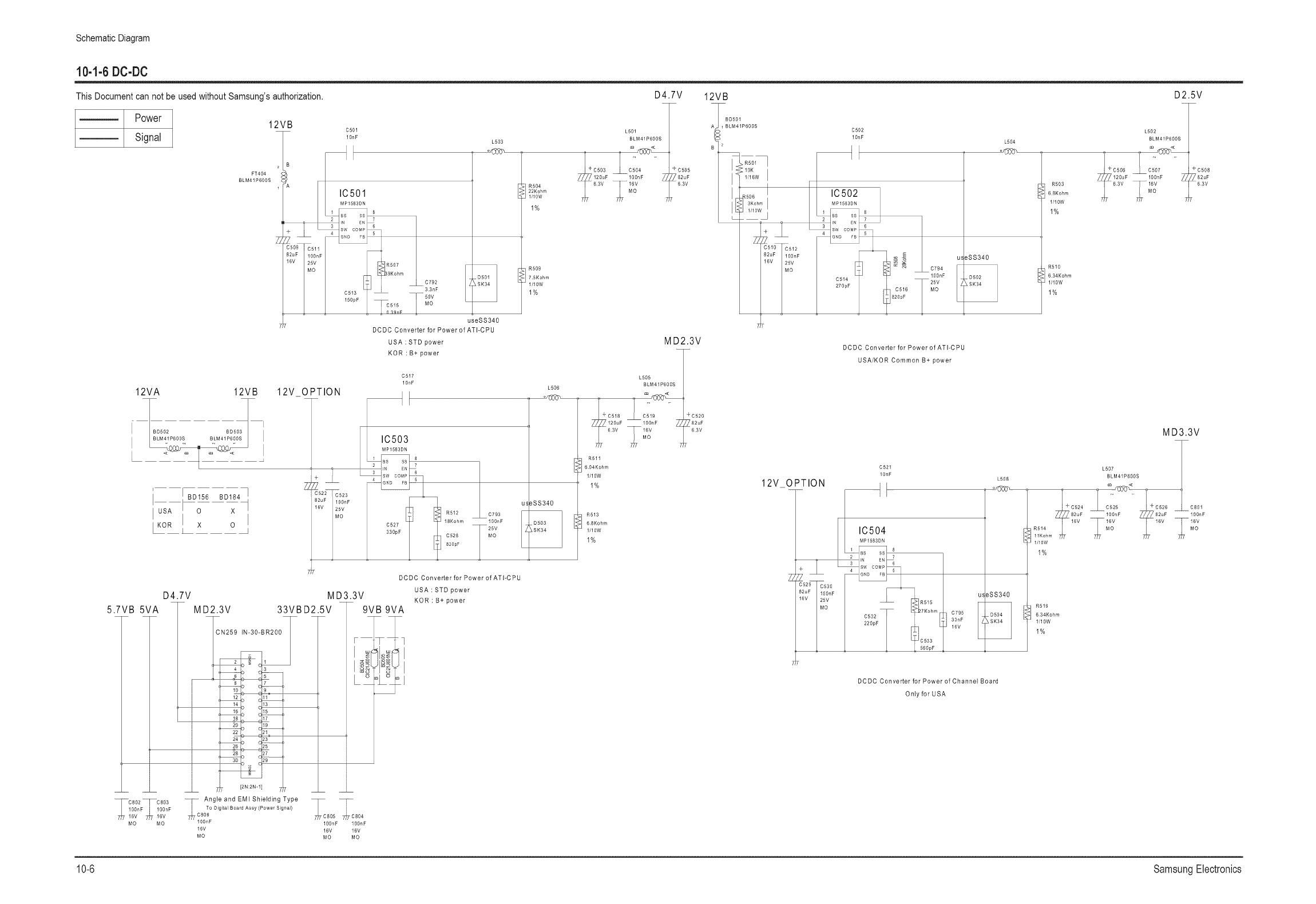

m 10-1AnalogBoard …………………………………………………….. 10-I

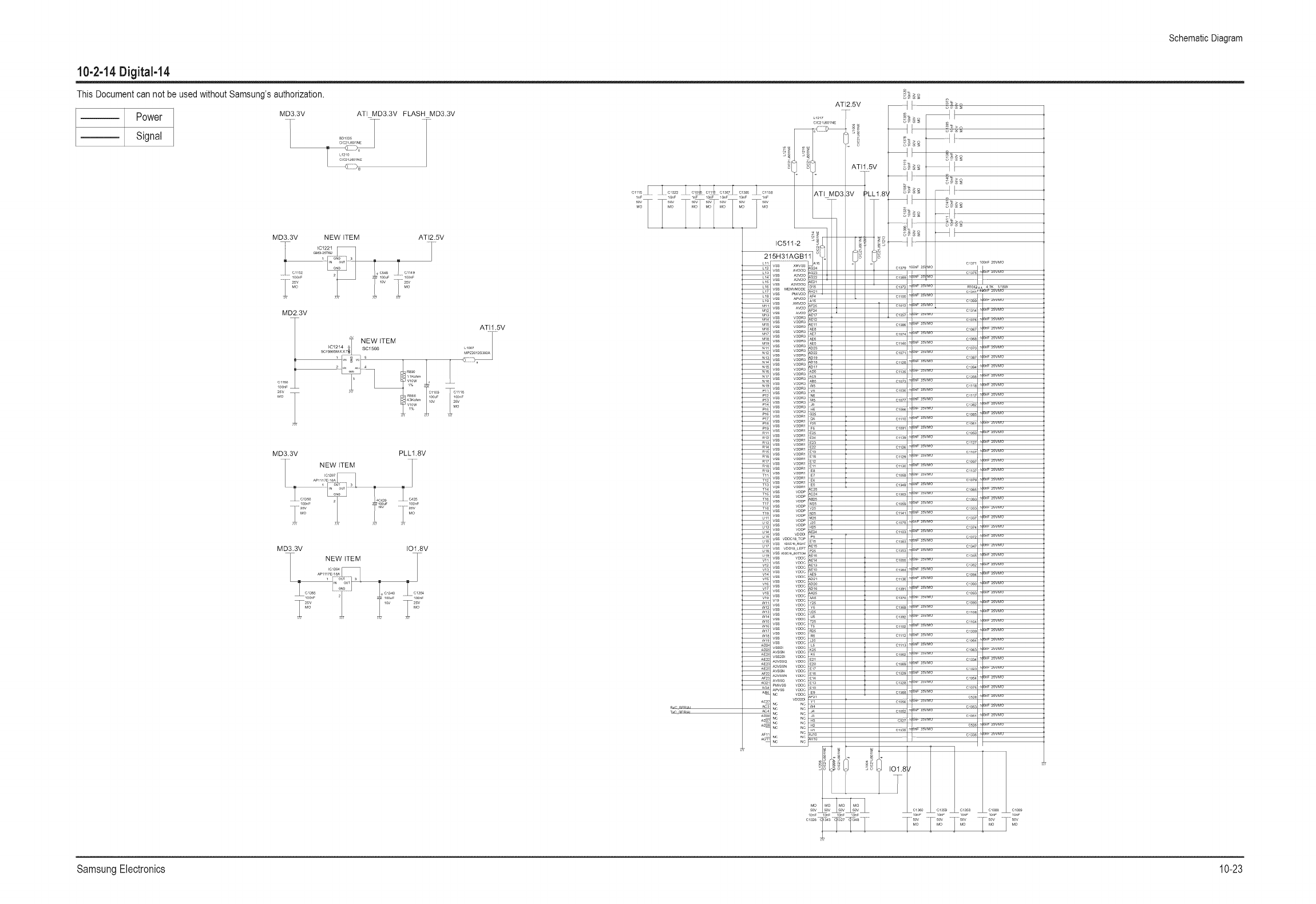

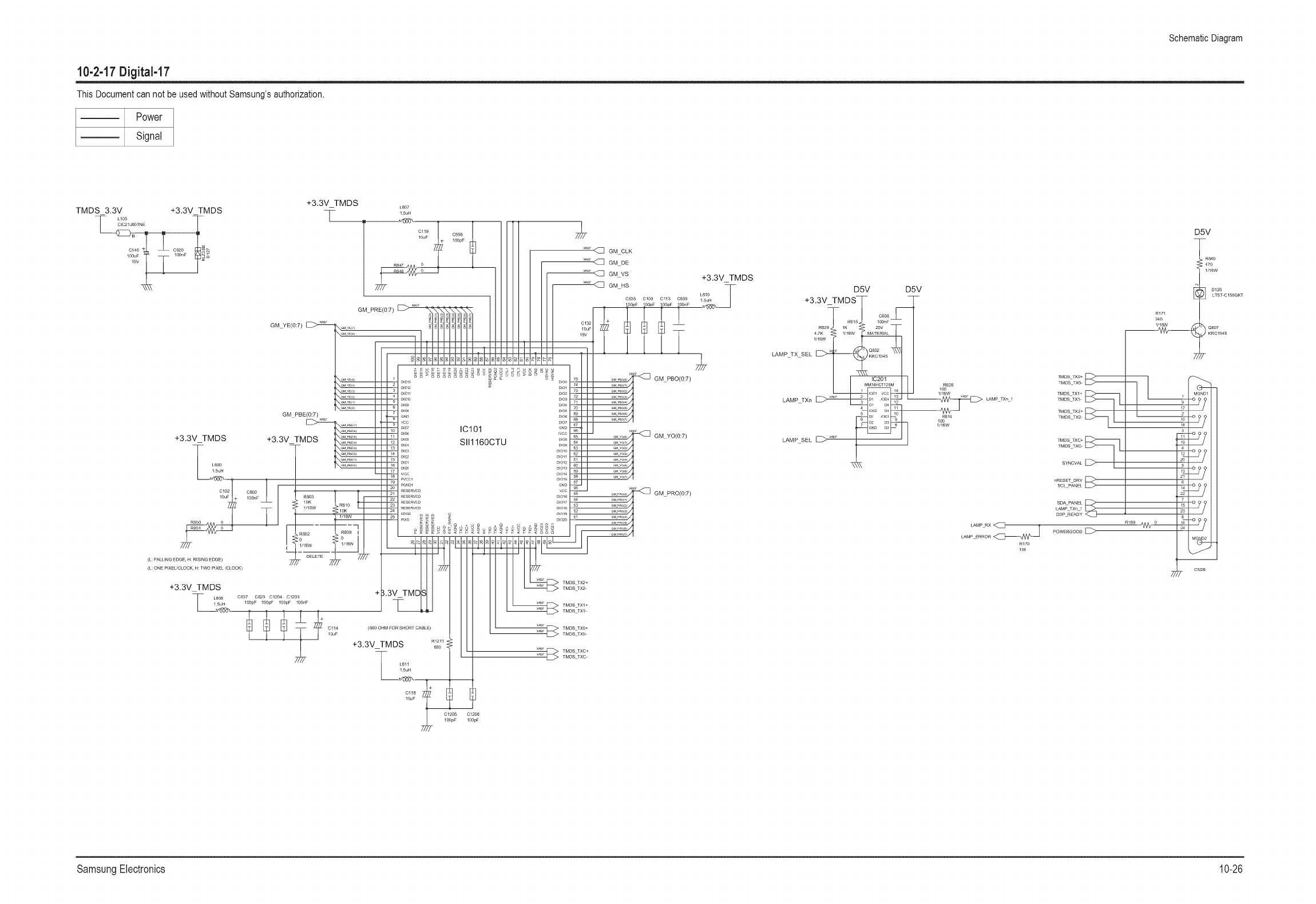

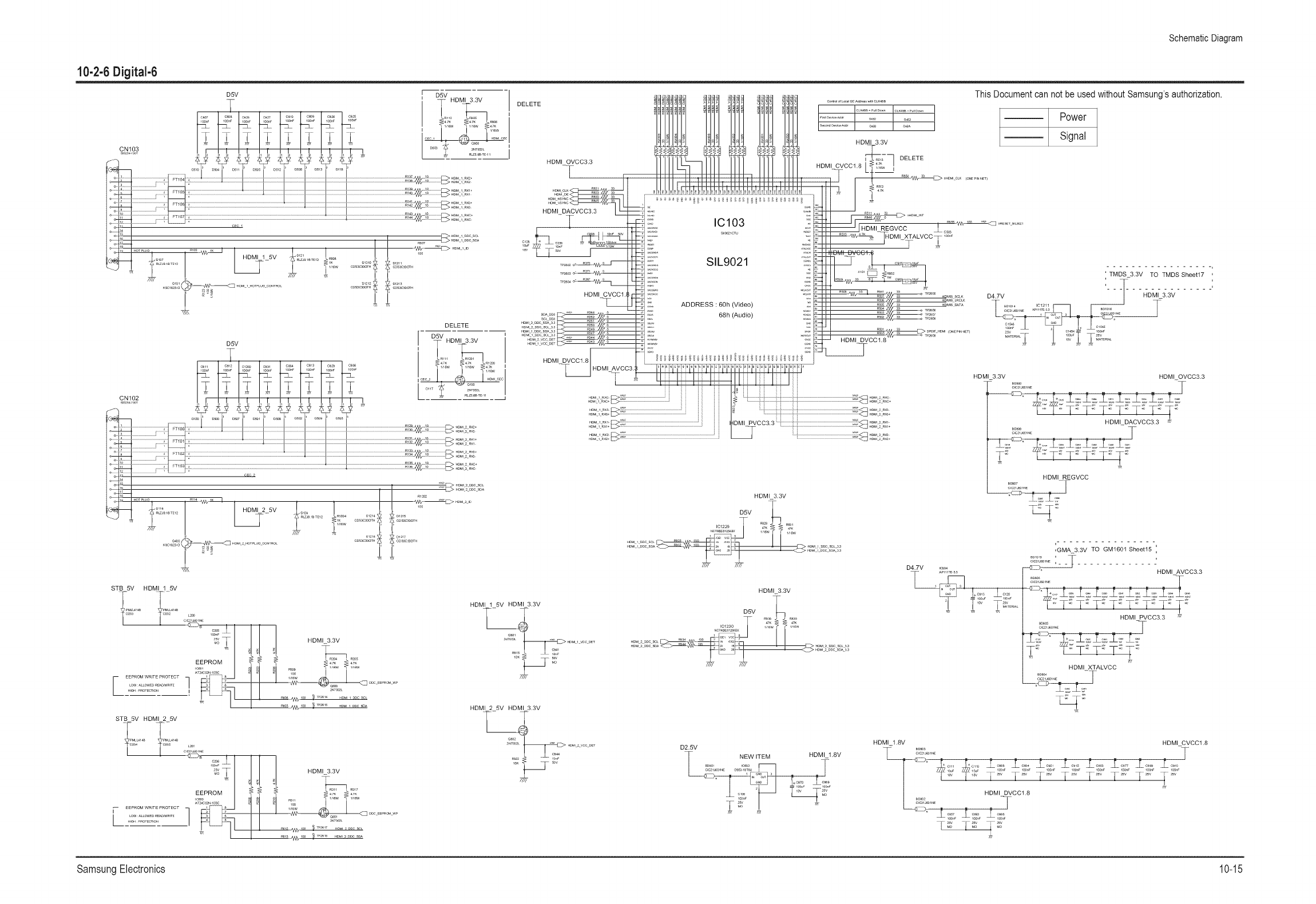

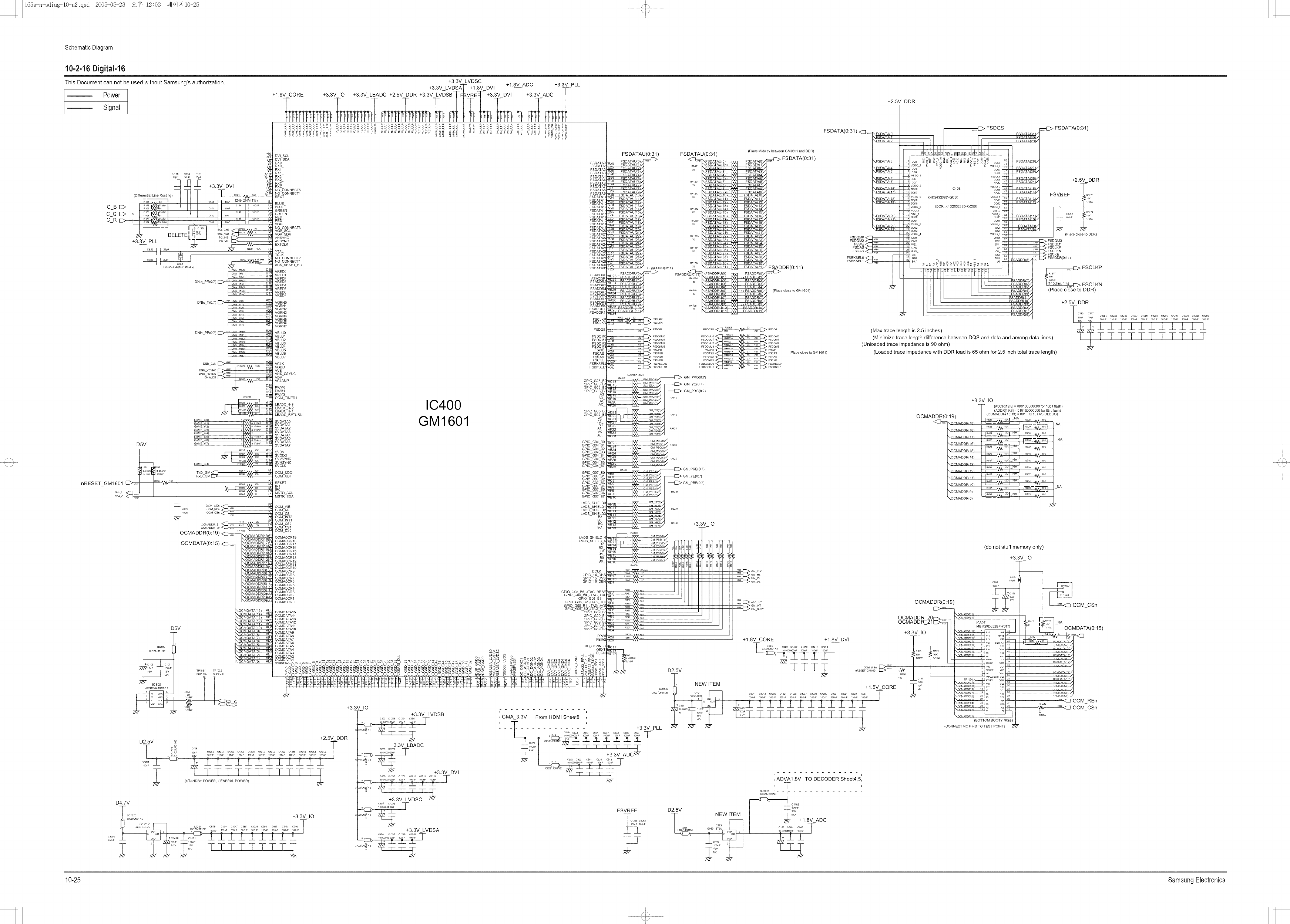

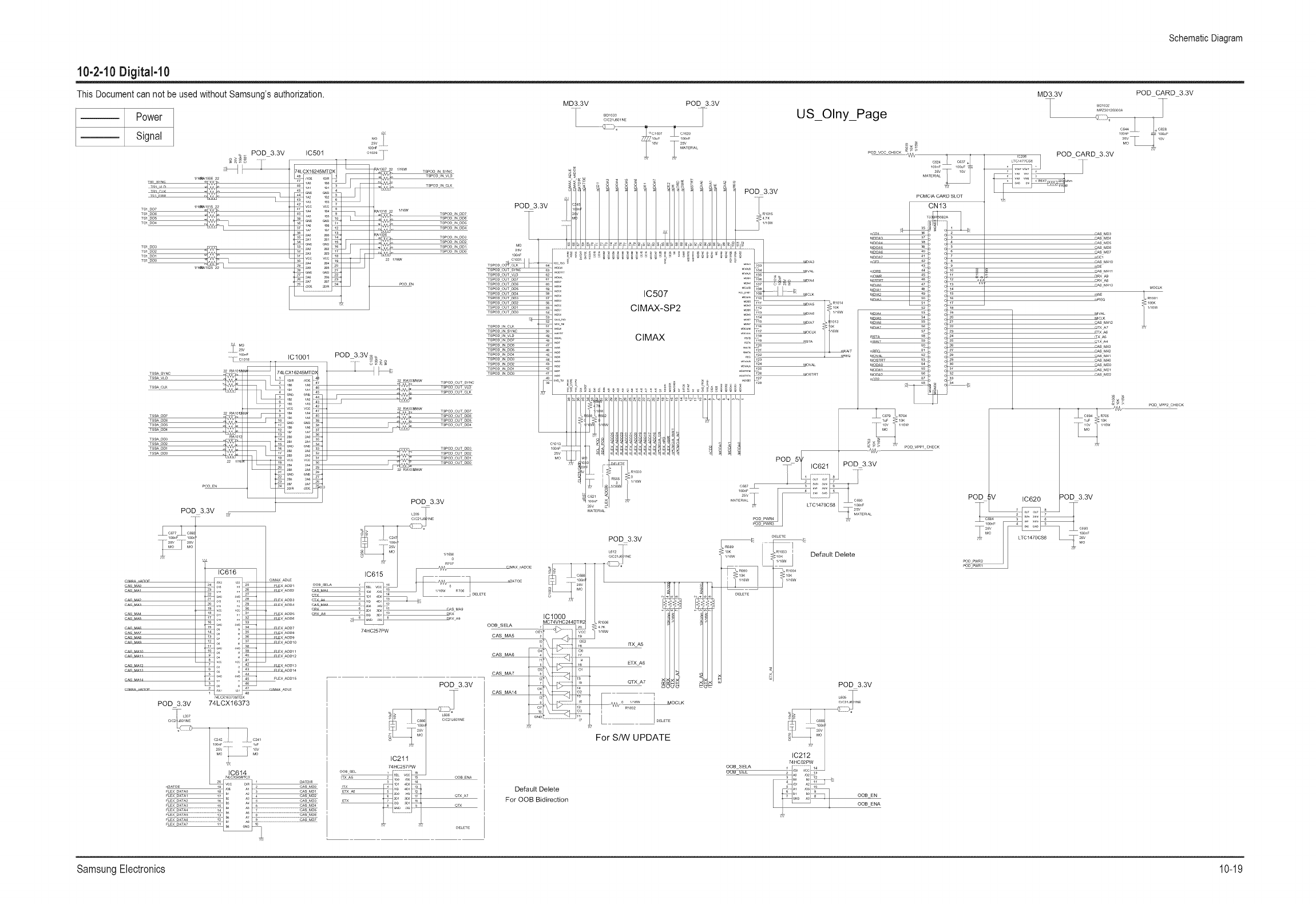

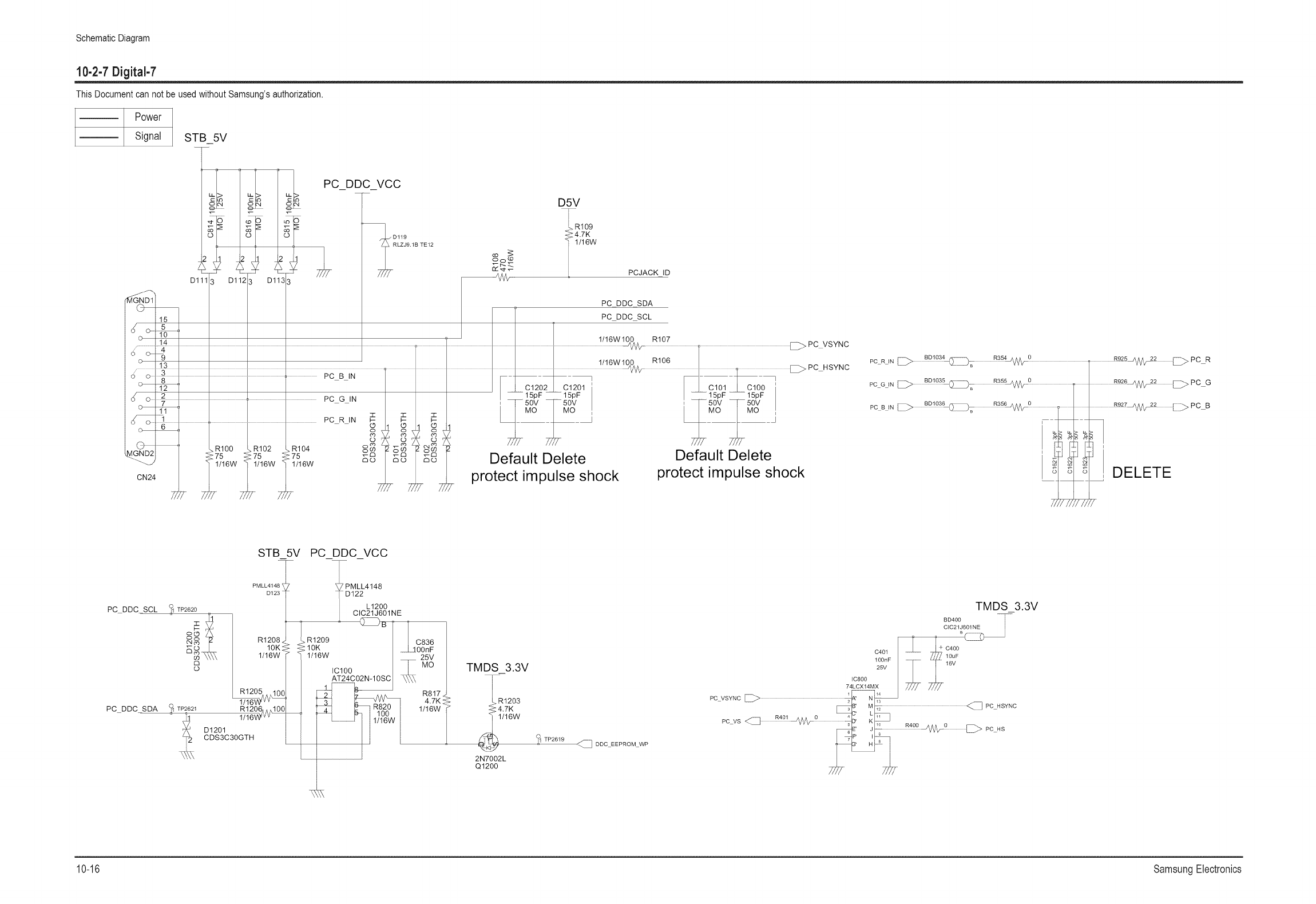

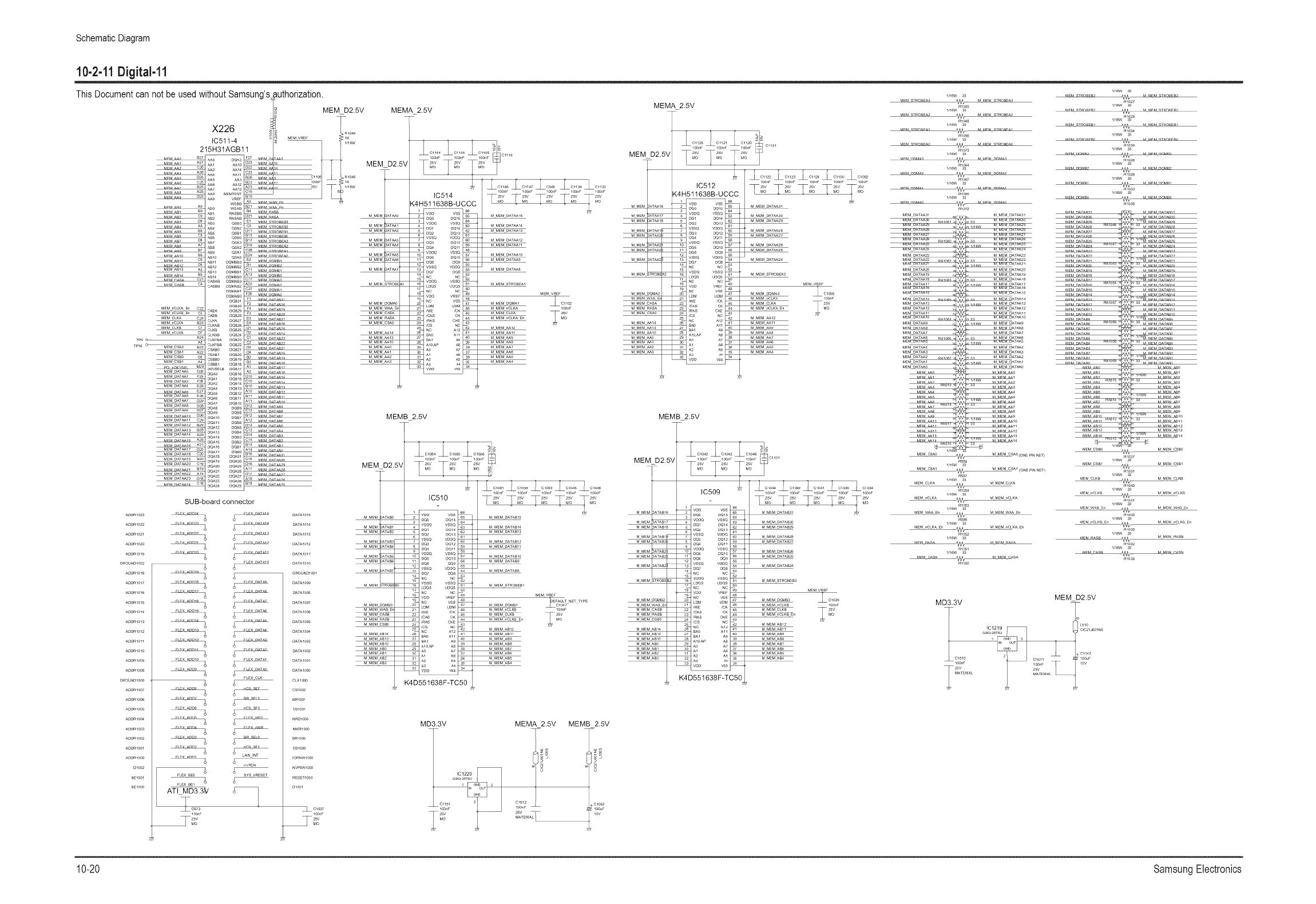

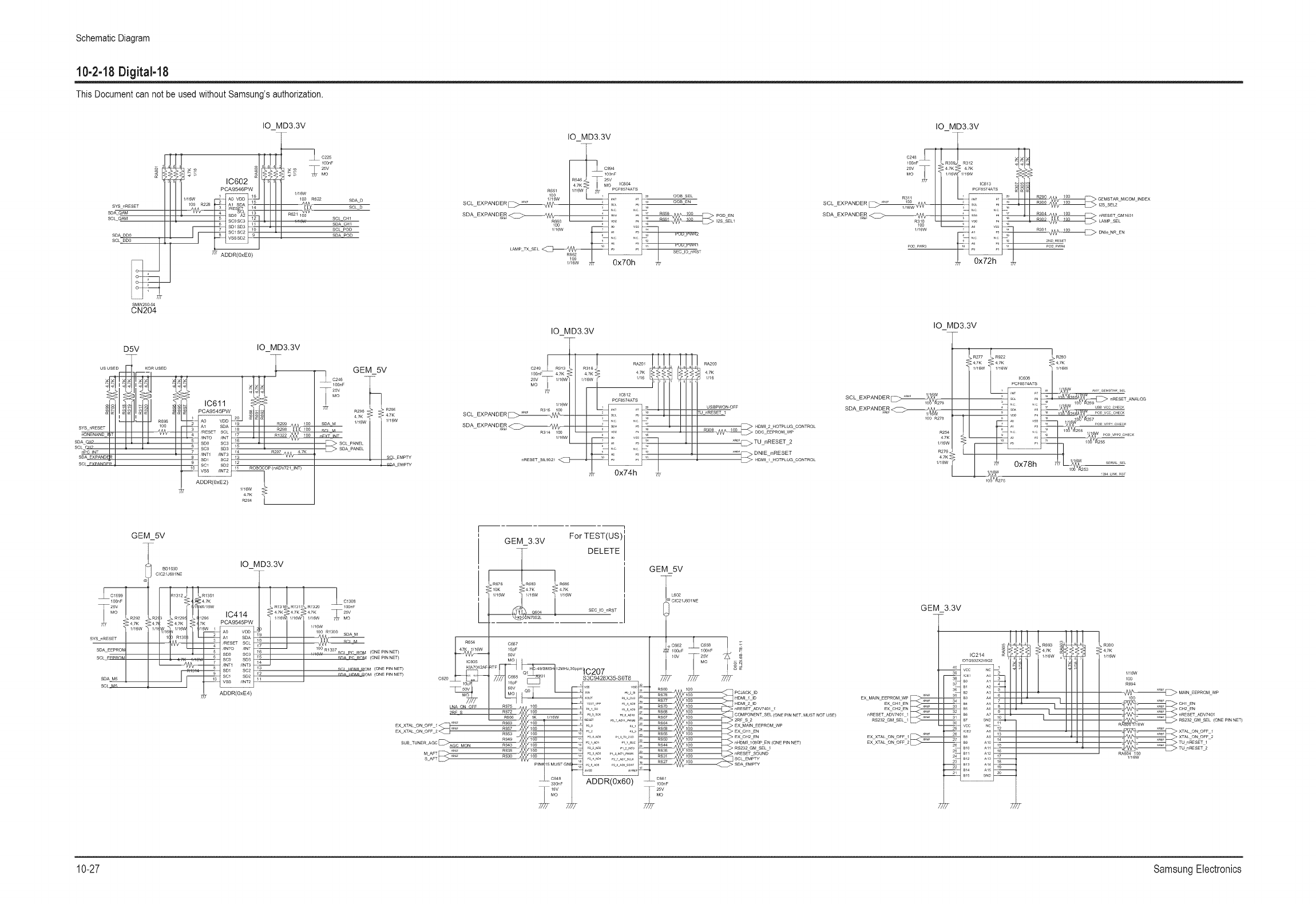

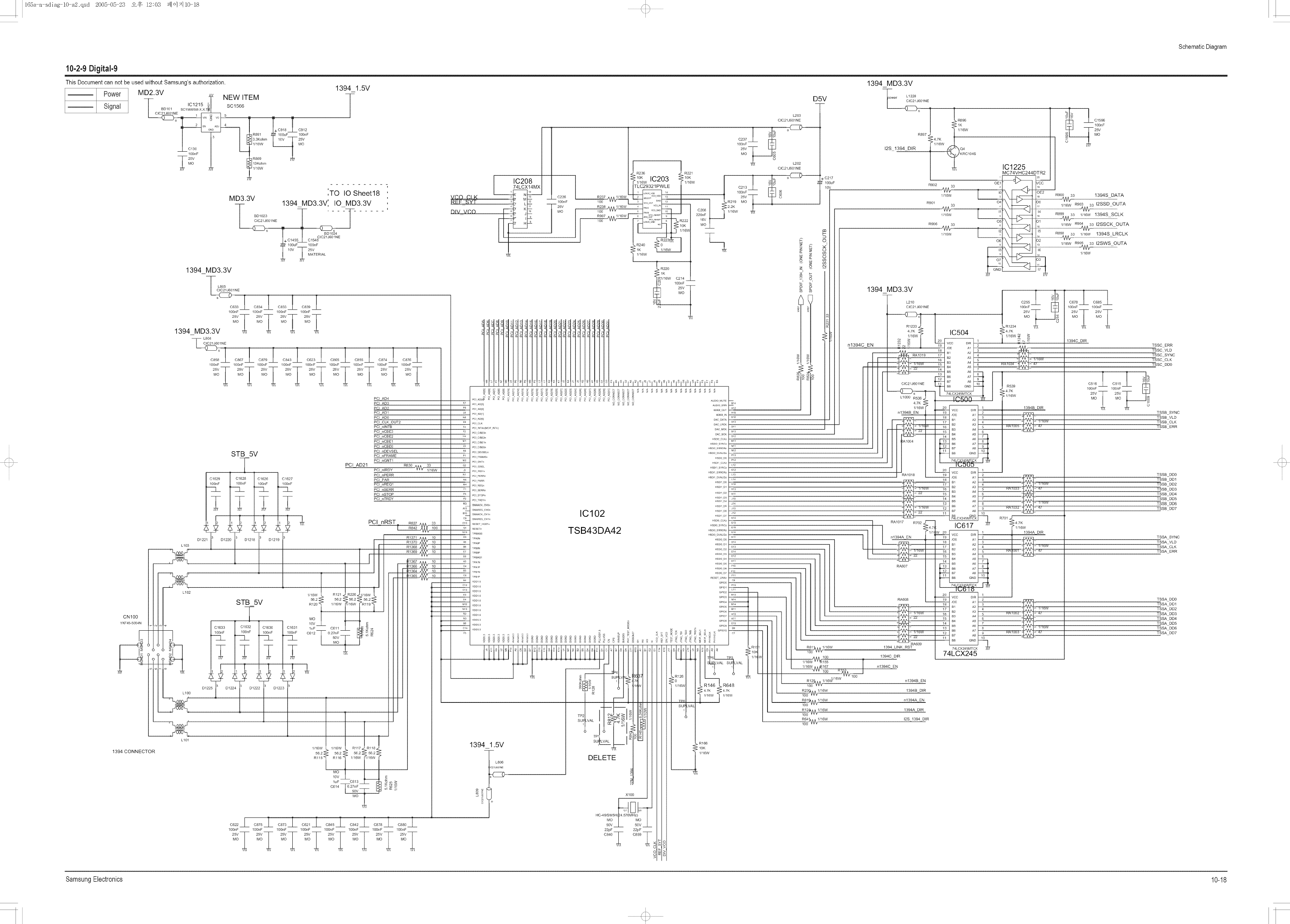

m 10-2DigitalBoard……………………………………………………… 10-10

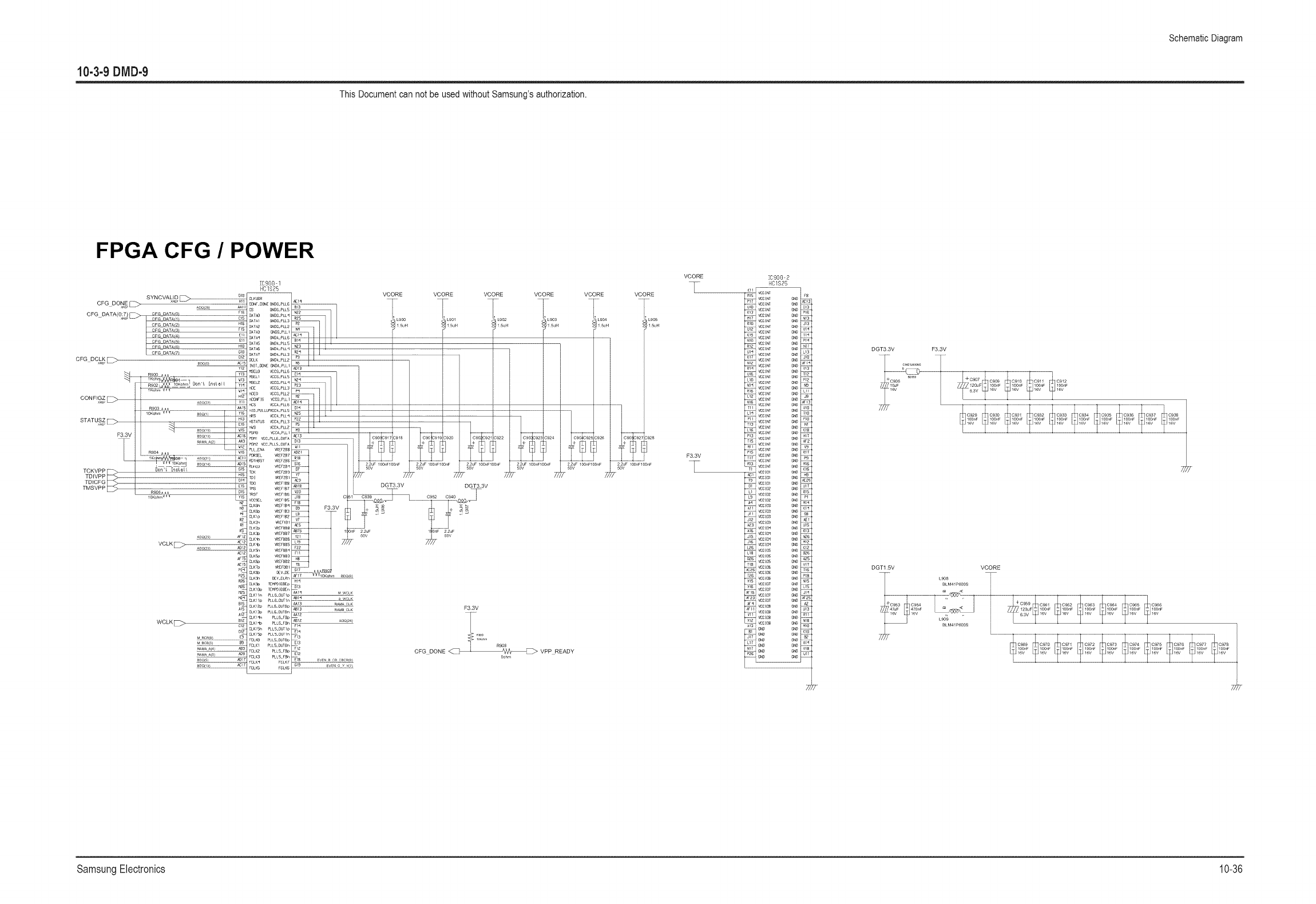

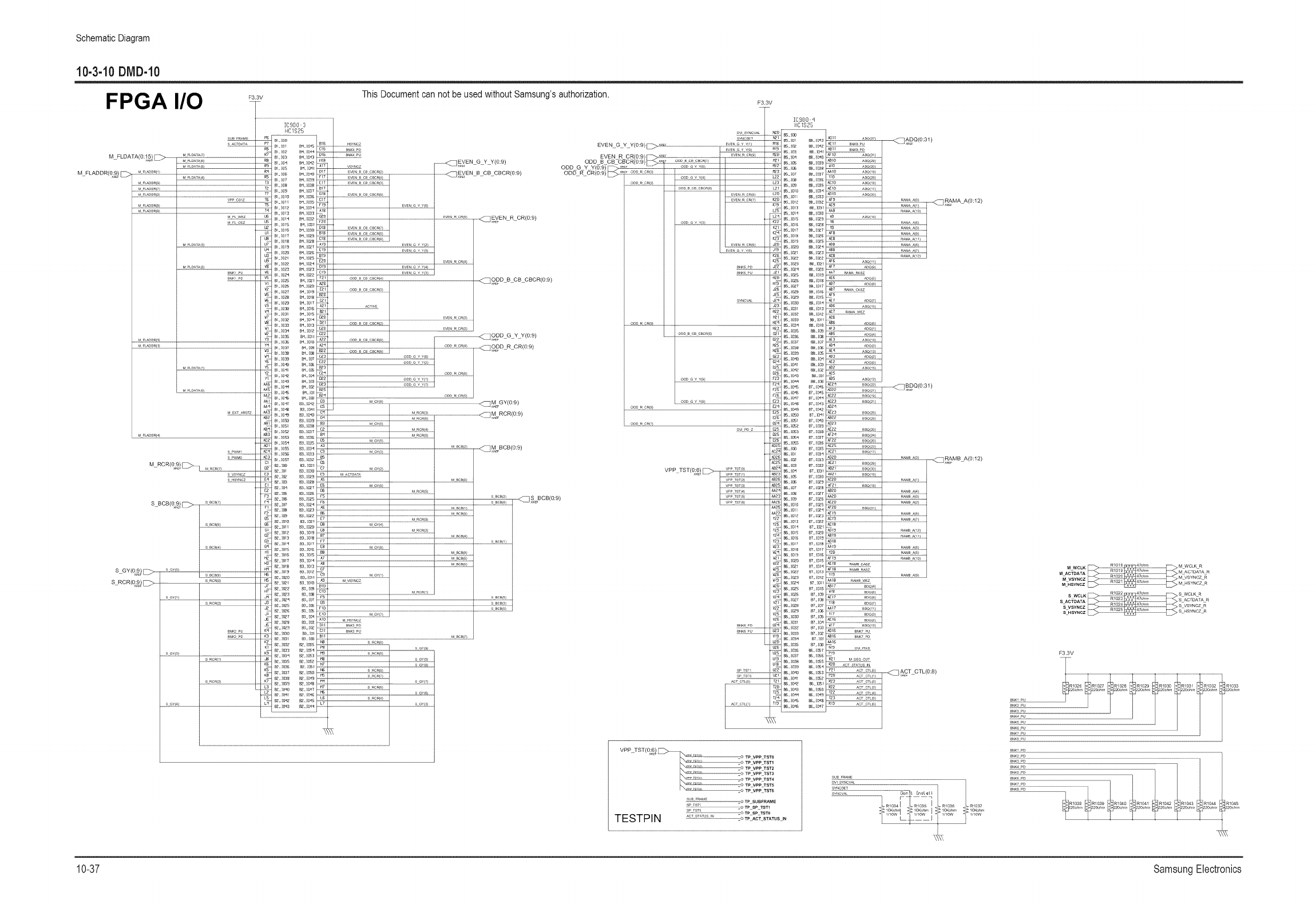

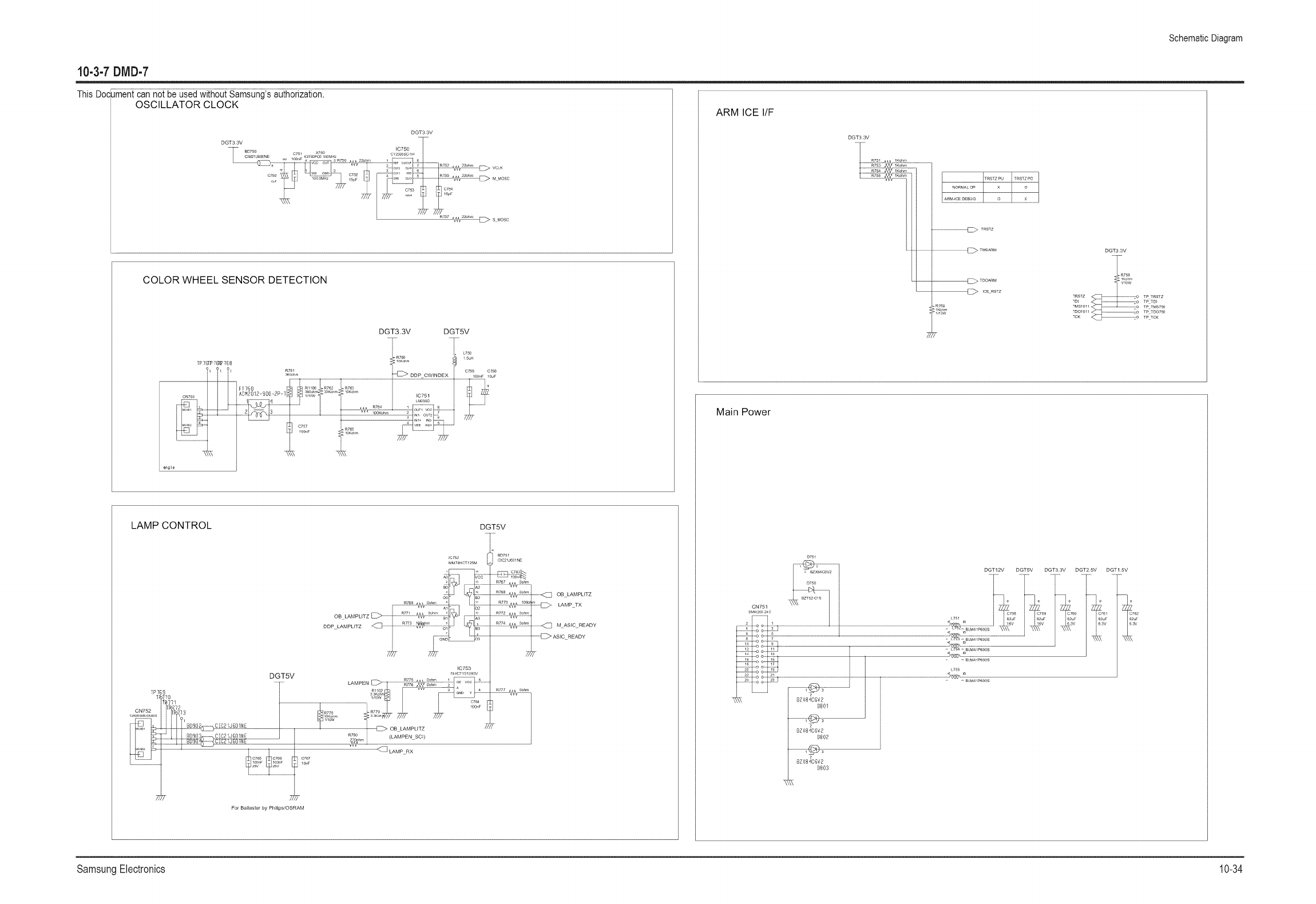

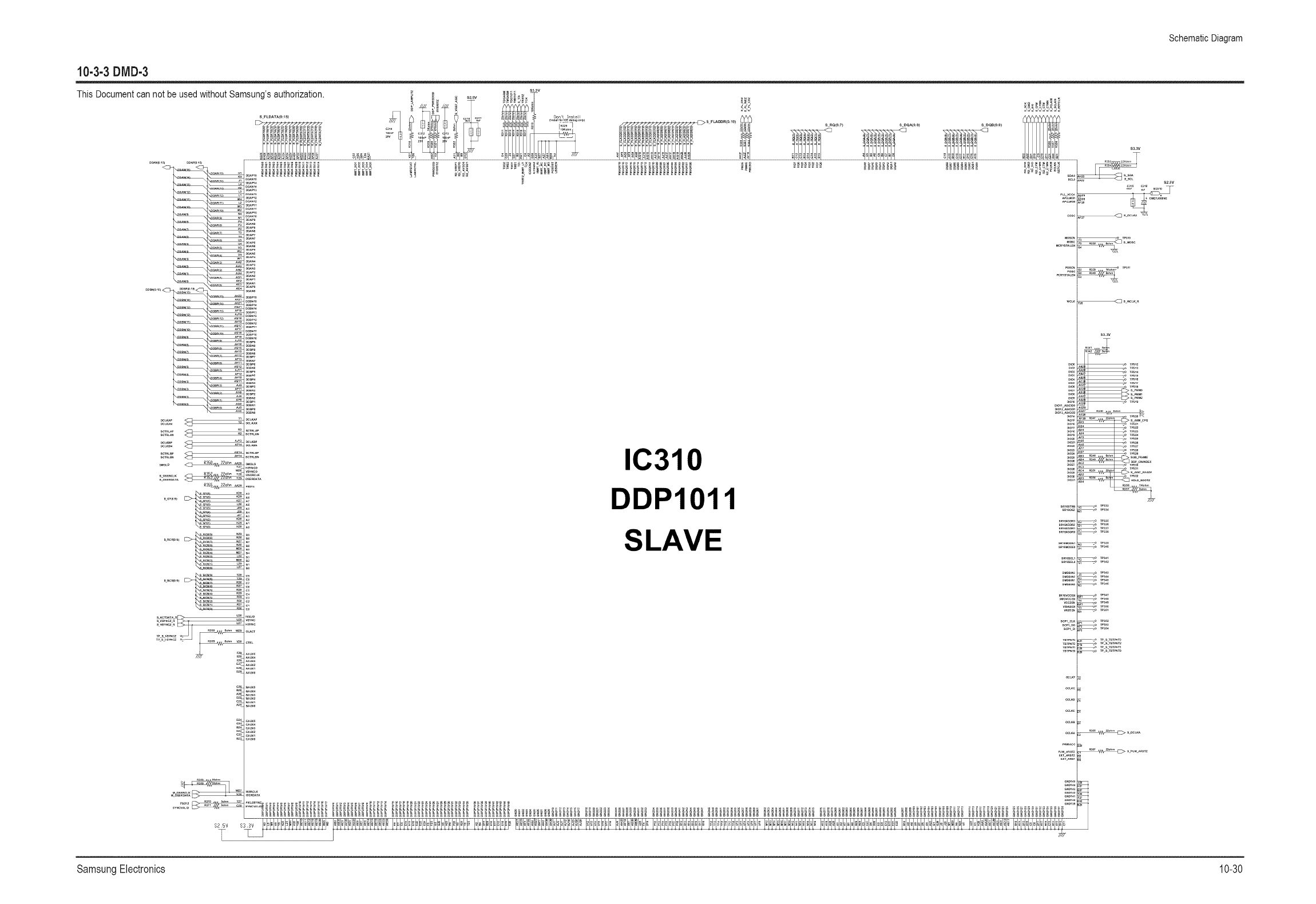

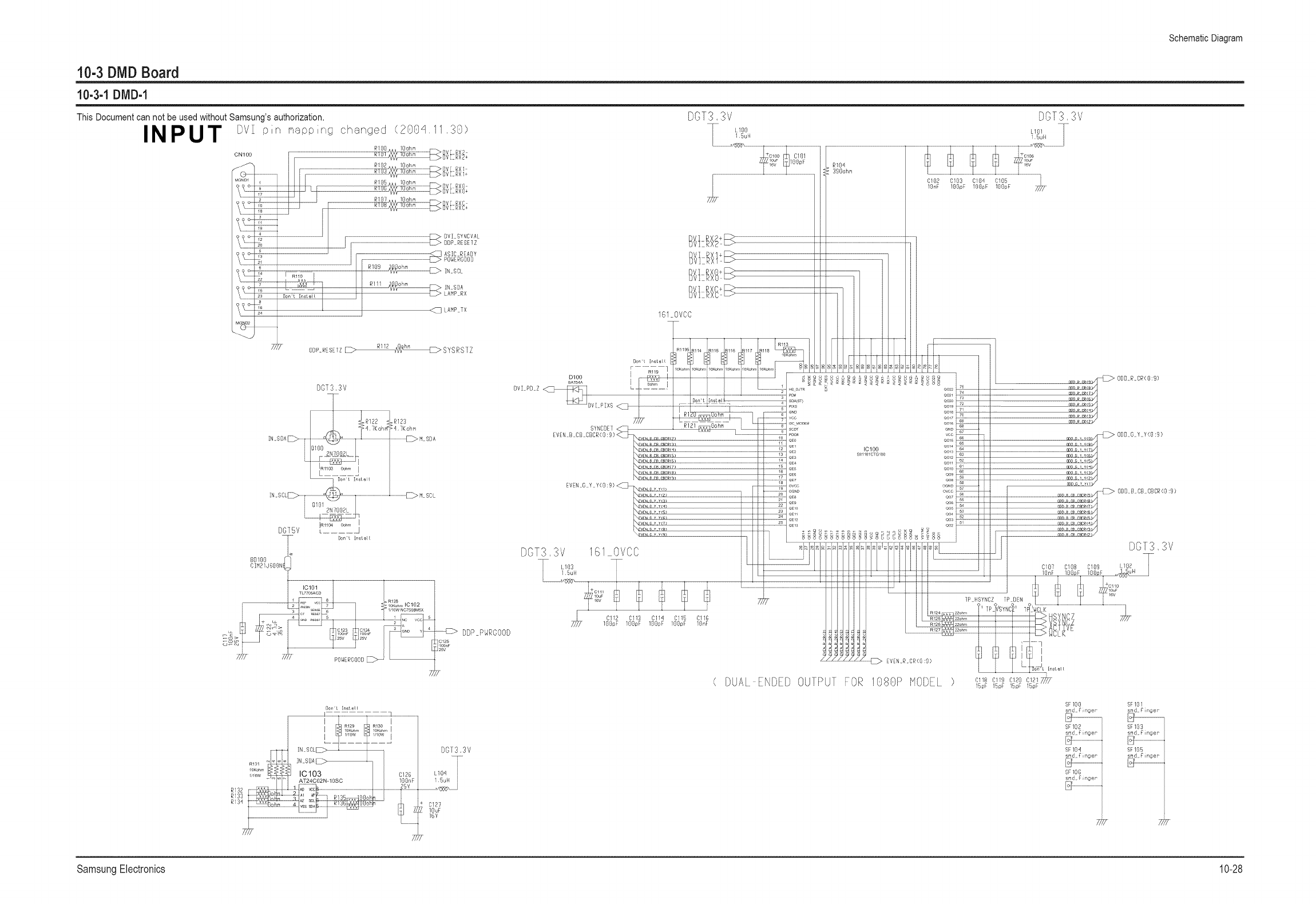

m 10-3DMD …………………………………………………………… 10-28

m 10-4Power ………………………………………………………….. 10-39

m 10-5Detect………………………………………………………….. 10-40

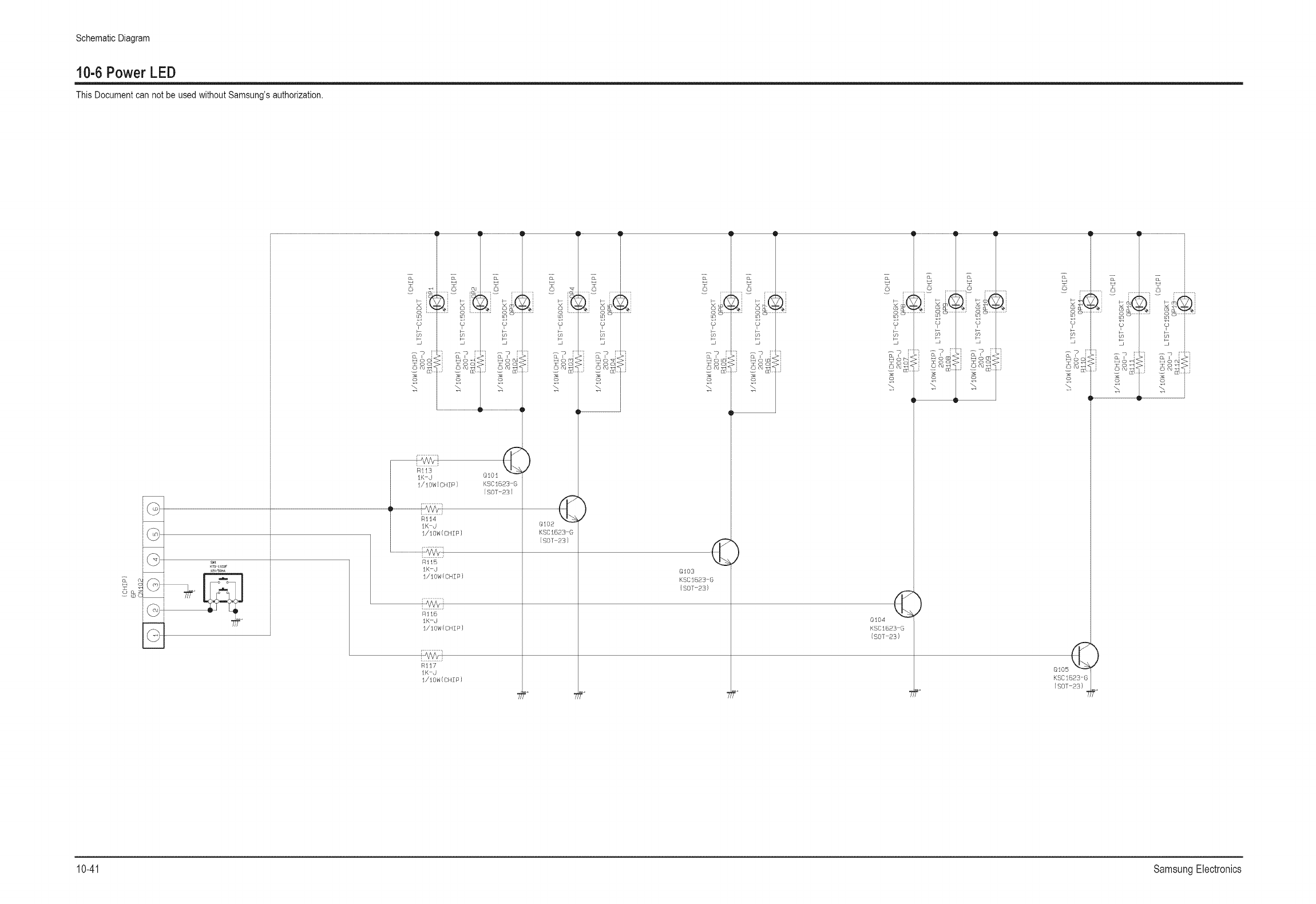

m 10-6PowerLED ………………………………………………………. 10-41

m 10-7RMC …………………………………………………………… 10-42

Chapter 11 Operation instruction &installation

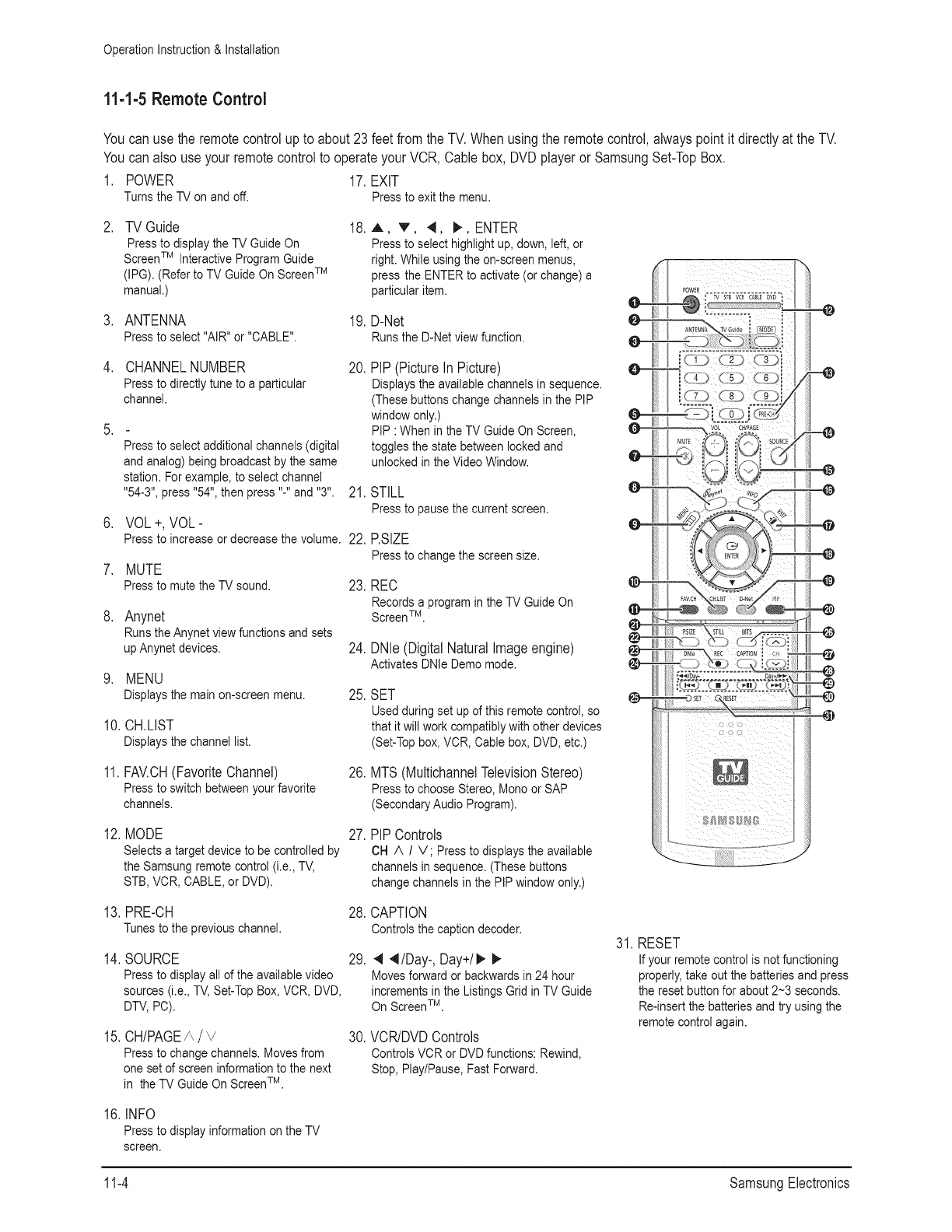

m 11-1ProductFeaturesandFunctions ……………………………………….. 1I-1

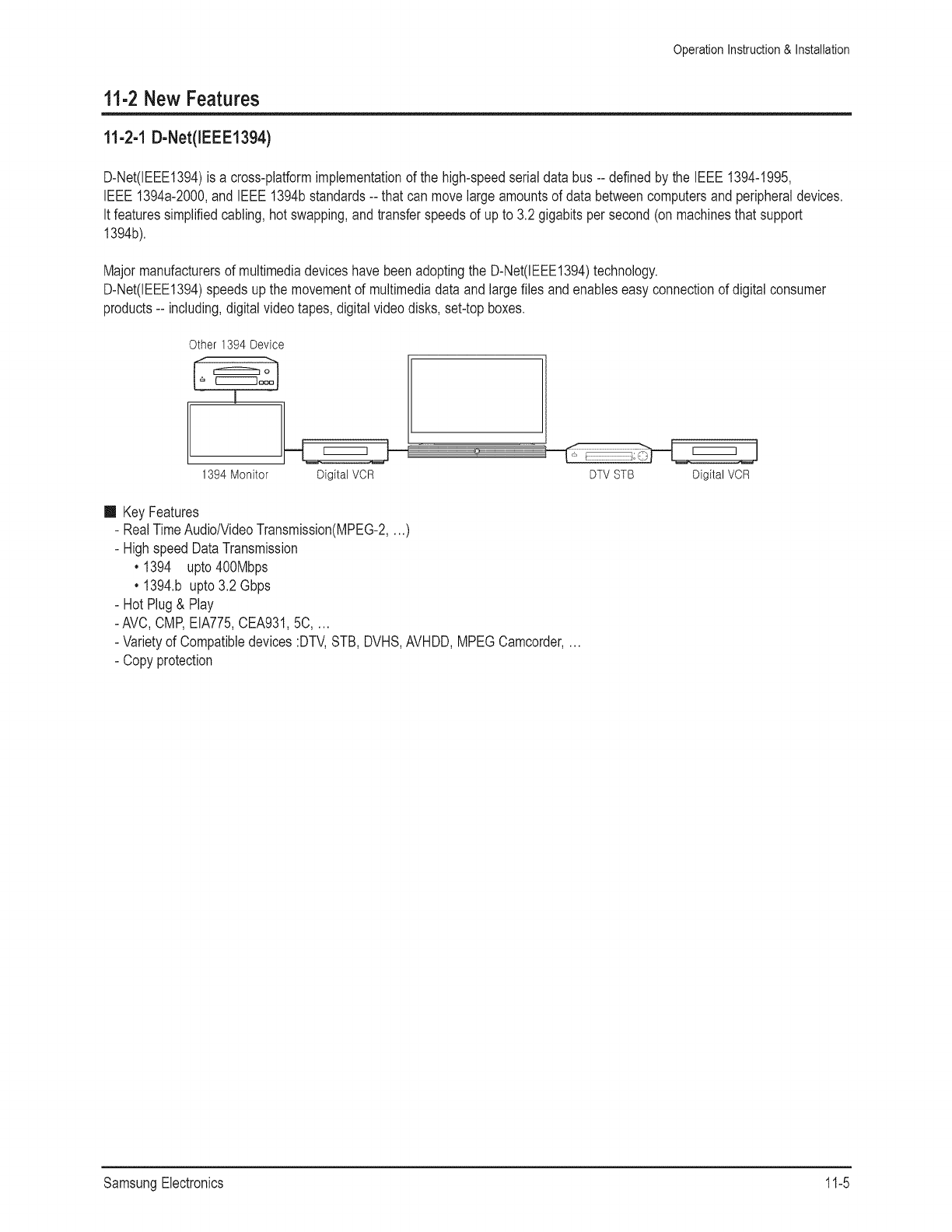

m 1I-2 NewFeatures…………………………………………………….. 1I-5

Chapter 12 Disassembly & Reassembly

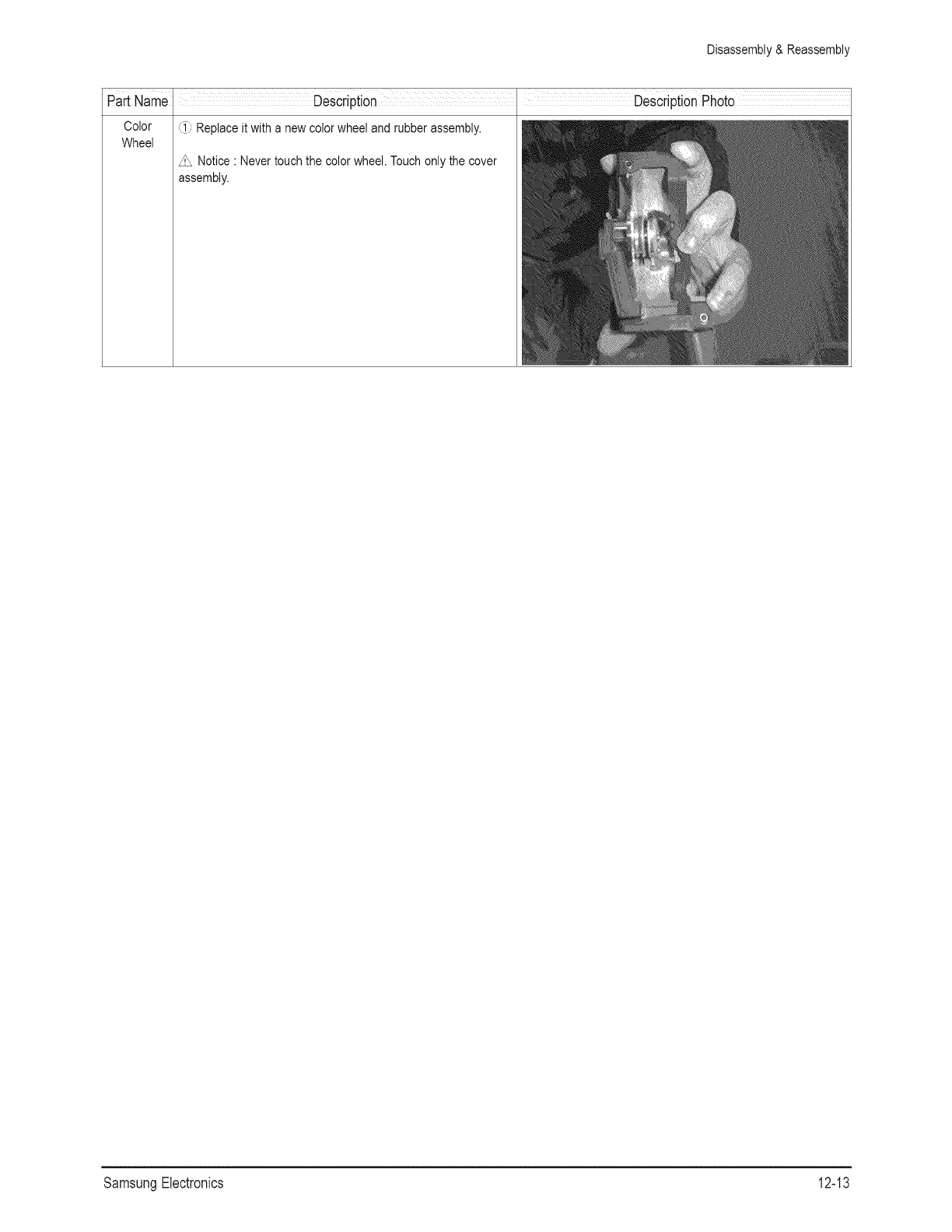

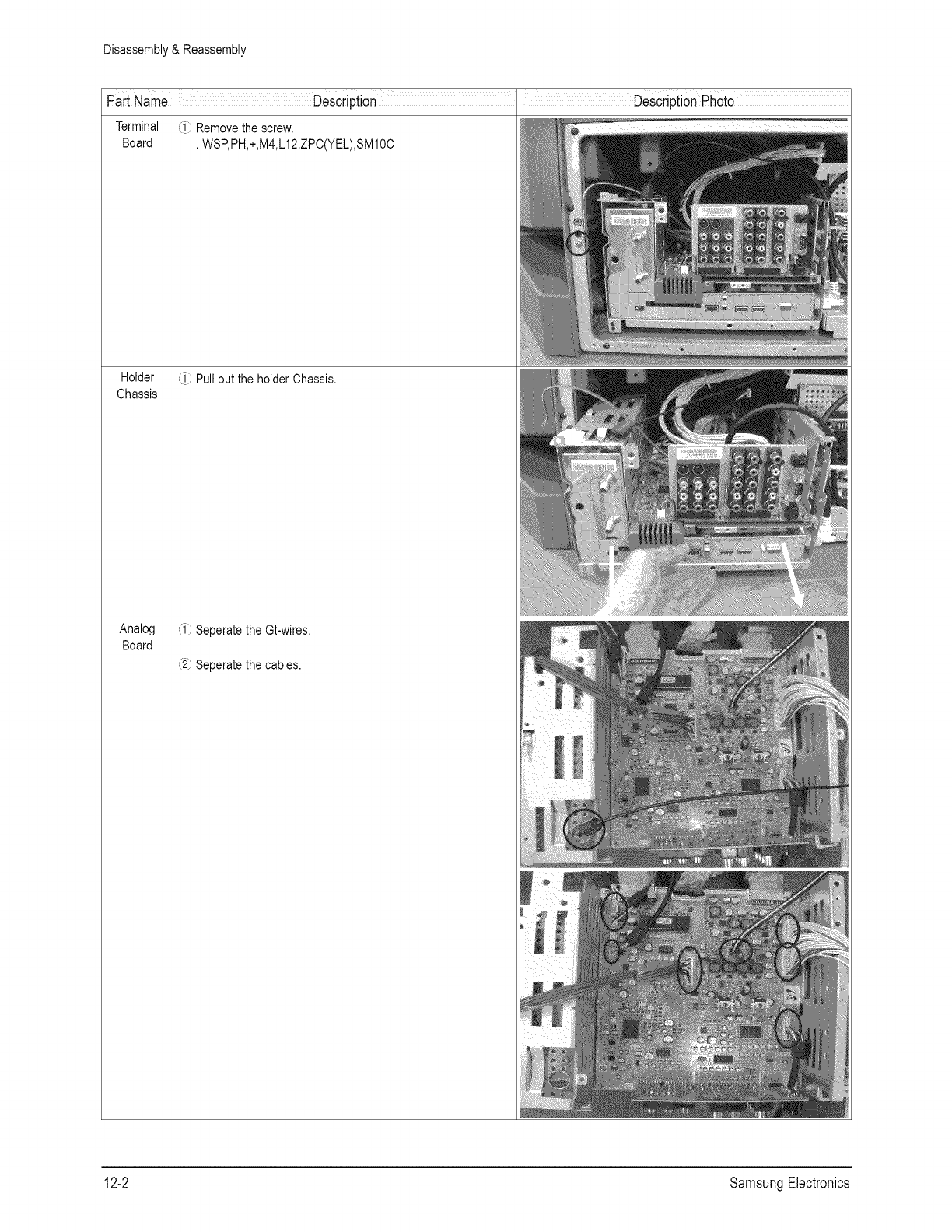

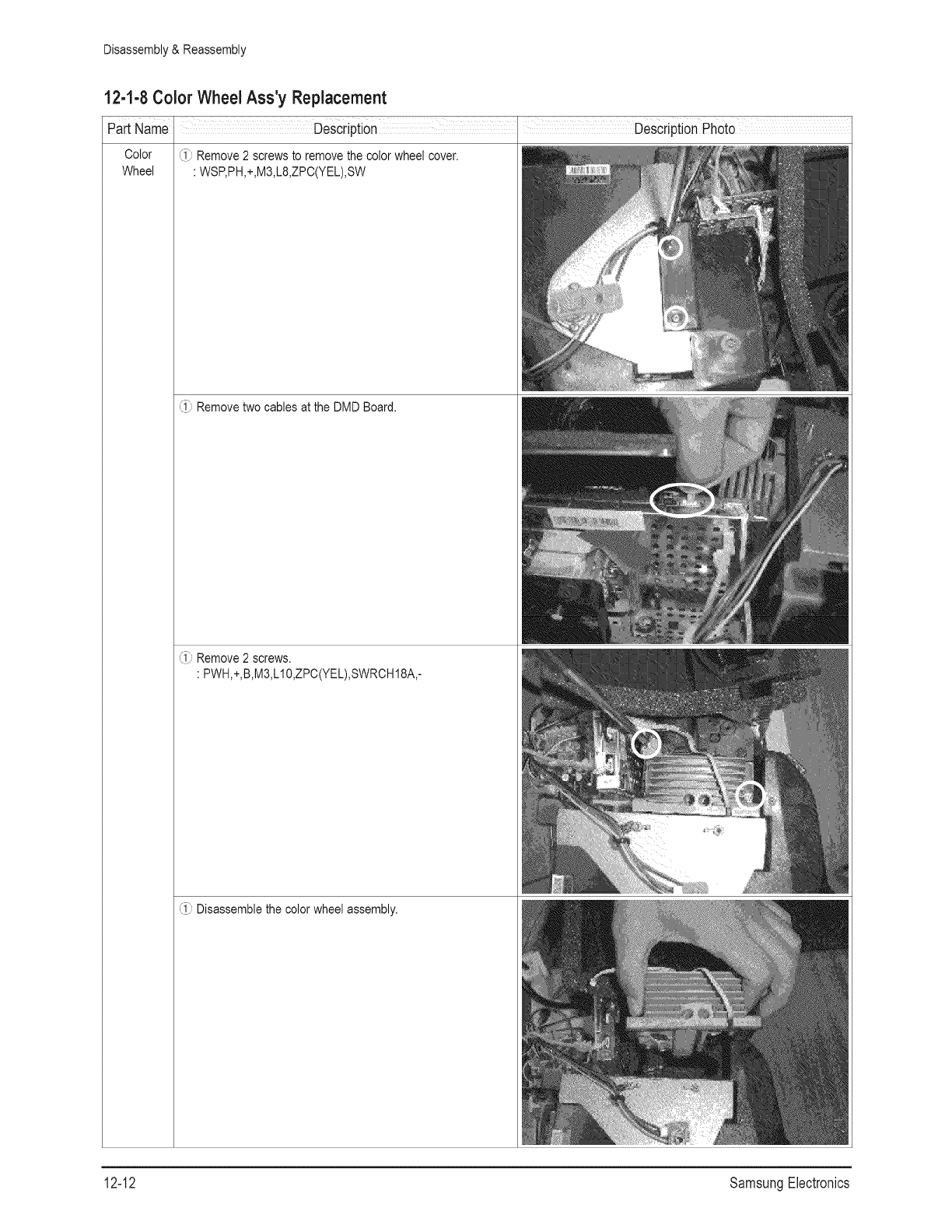

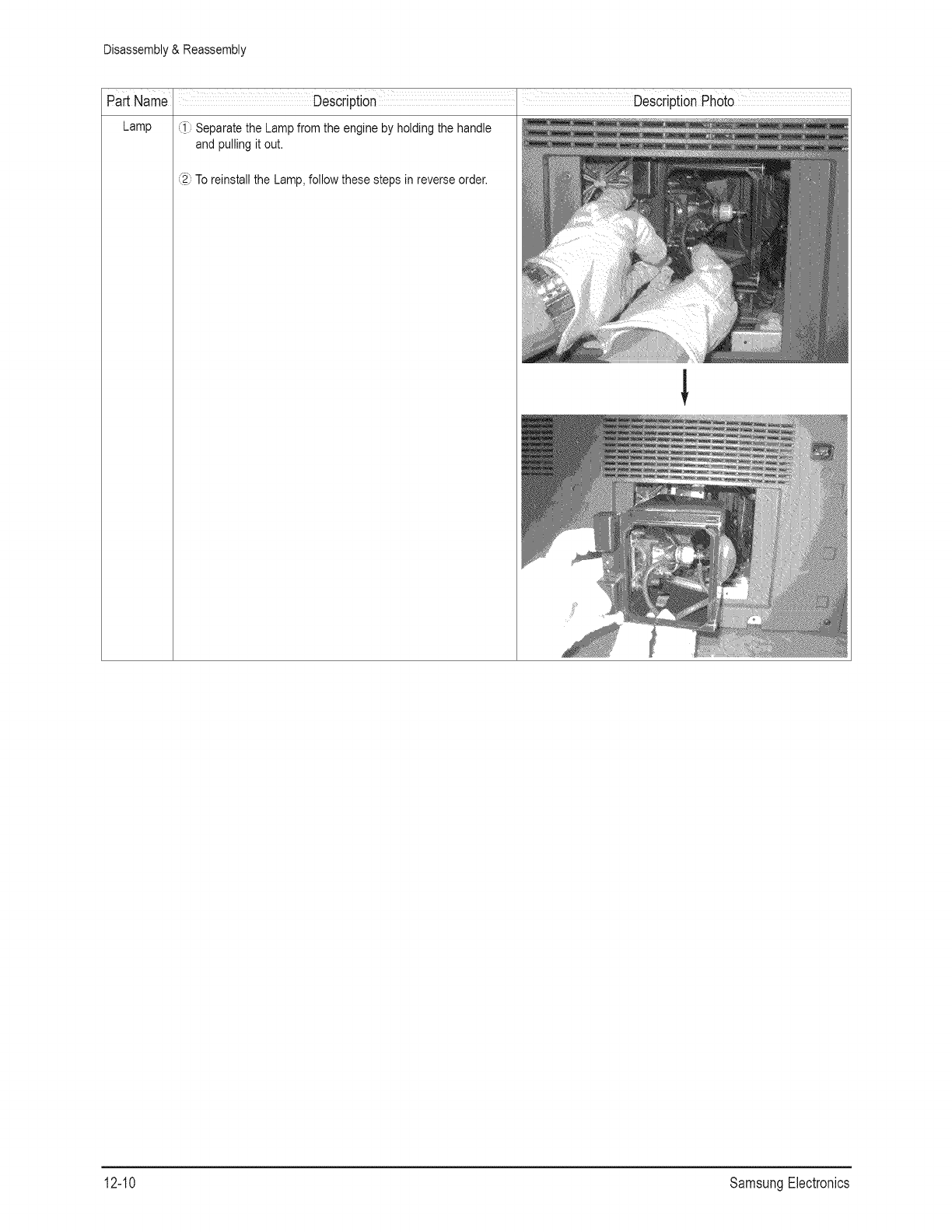

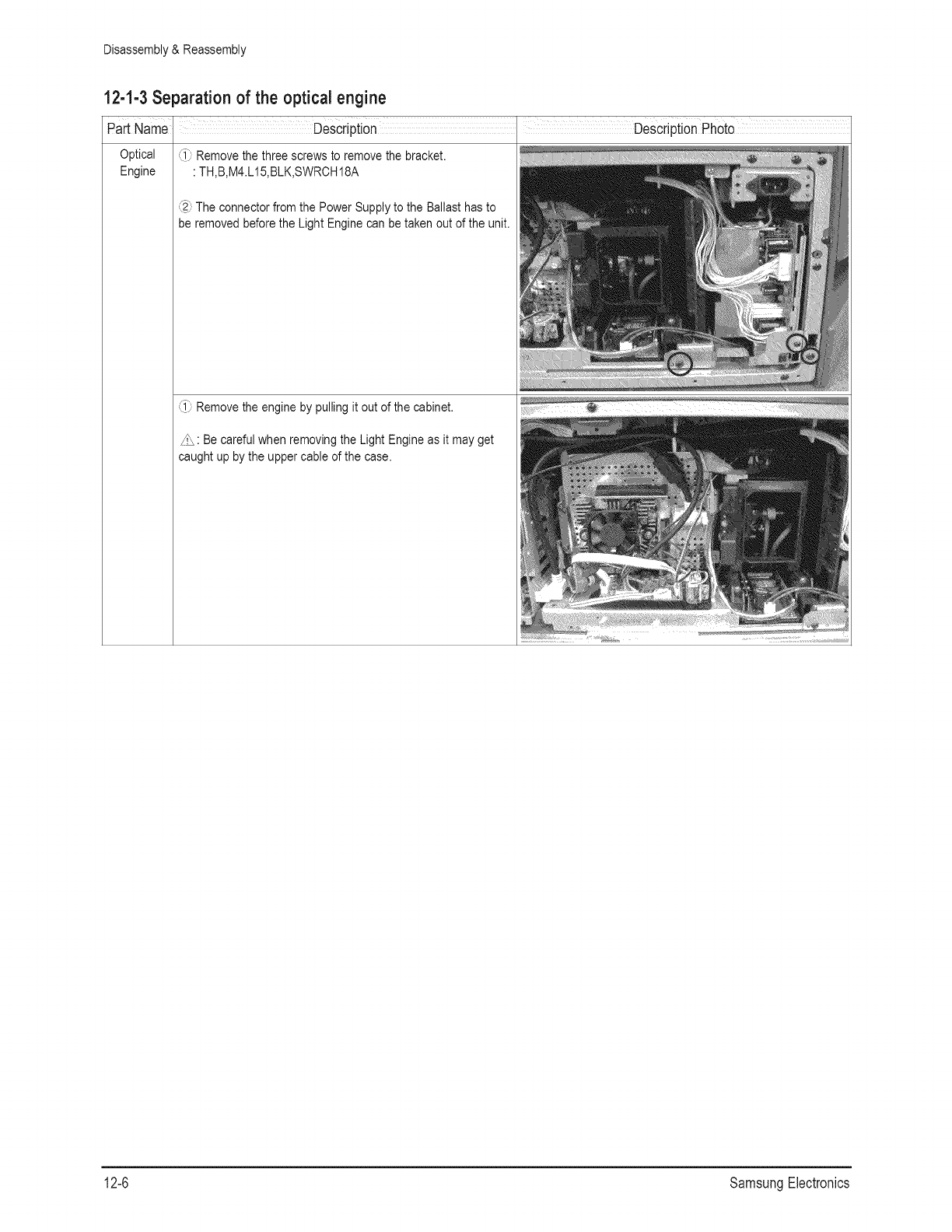

m 12-1OverallDisassembly& Reassembiy …………………………………….. 12-1

Chapter 13 Circuit Description

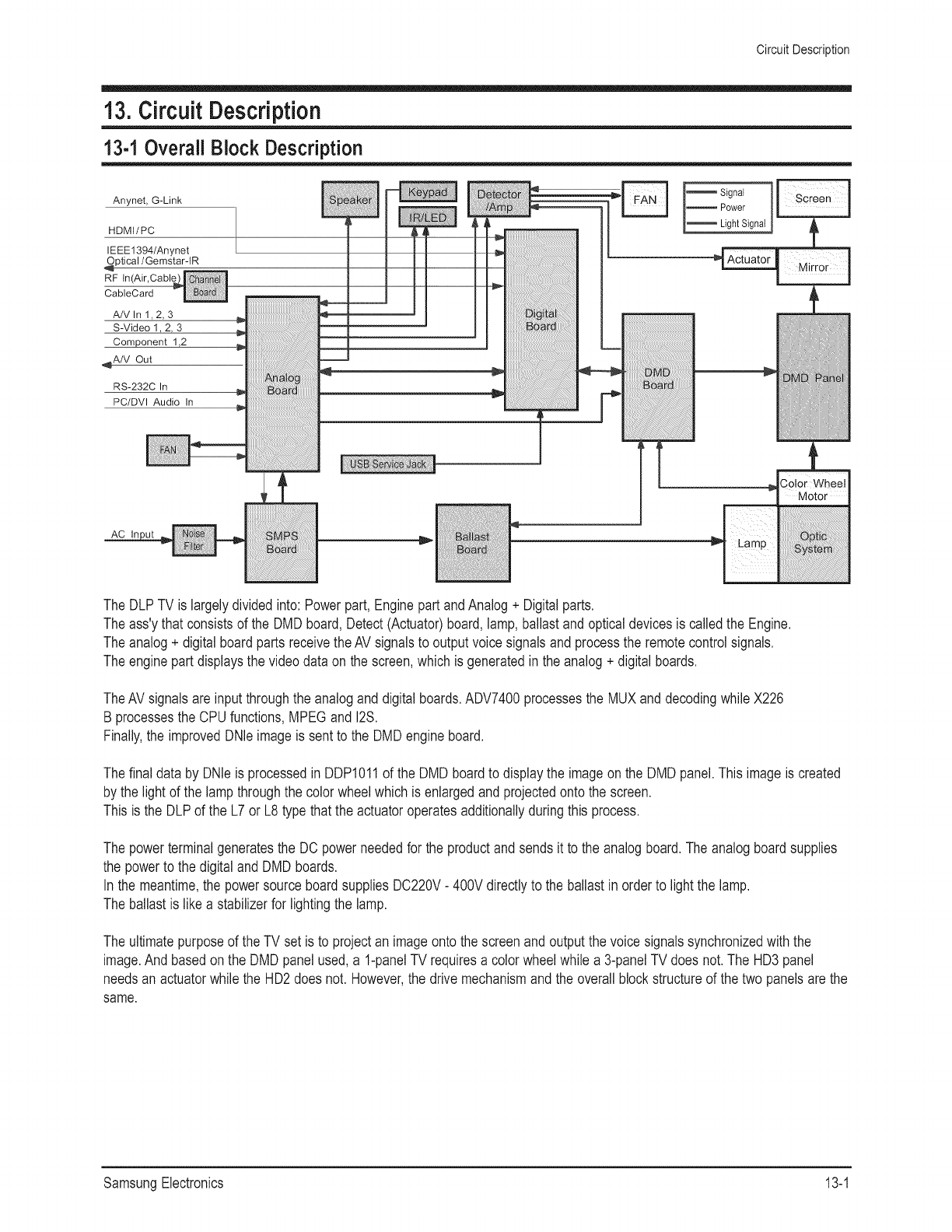

m 13-I OverallBlockDescription…………………………………………….. 13-1

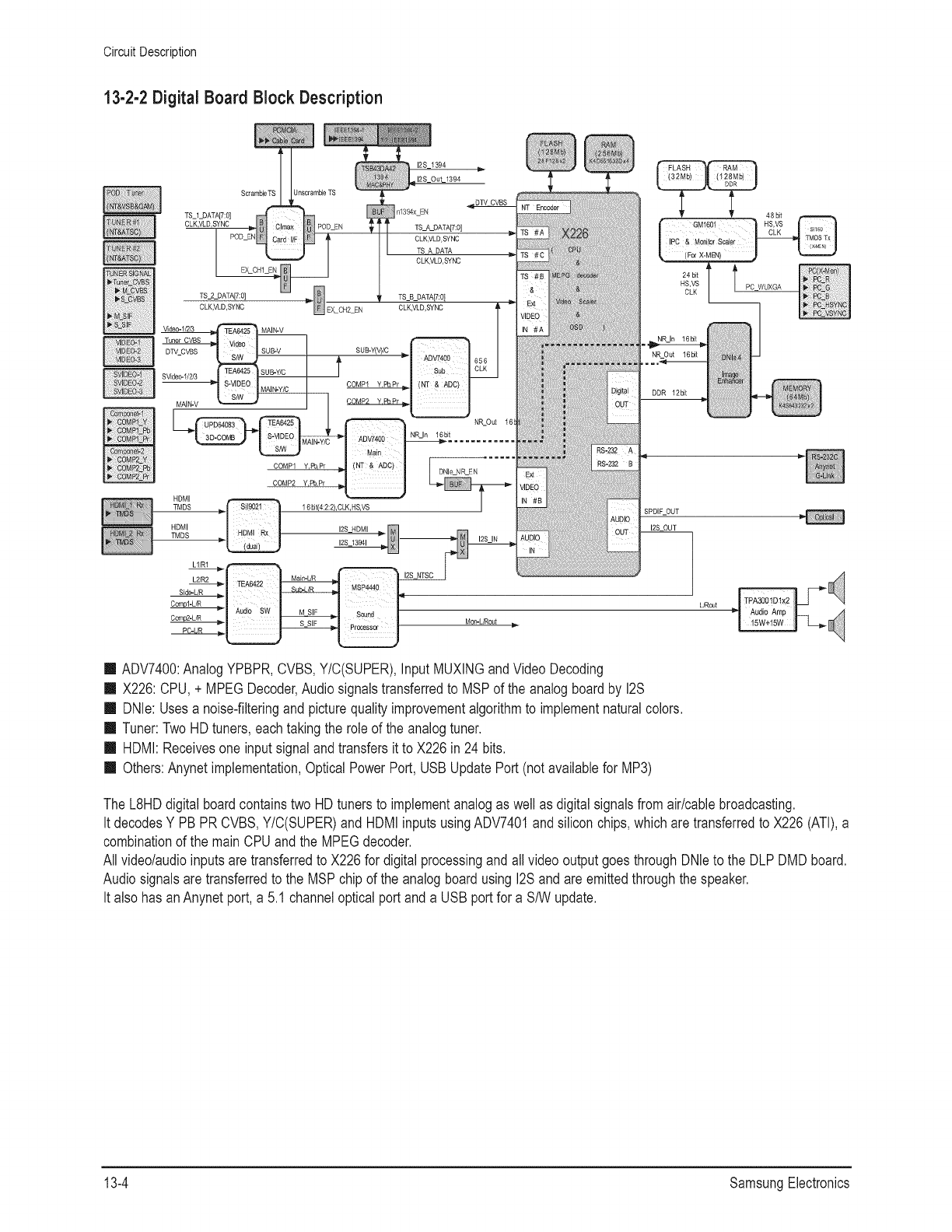

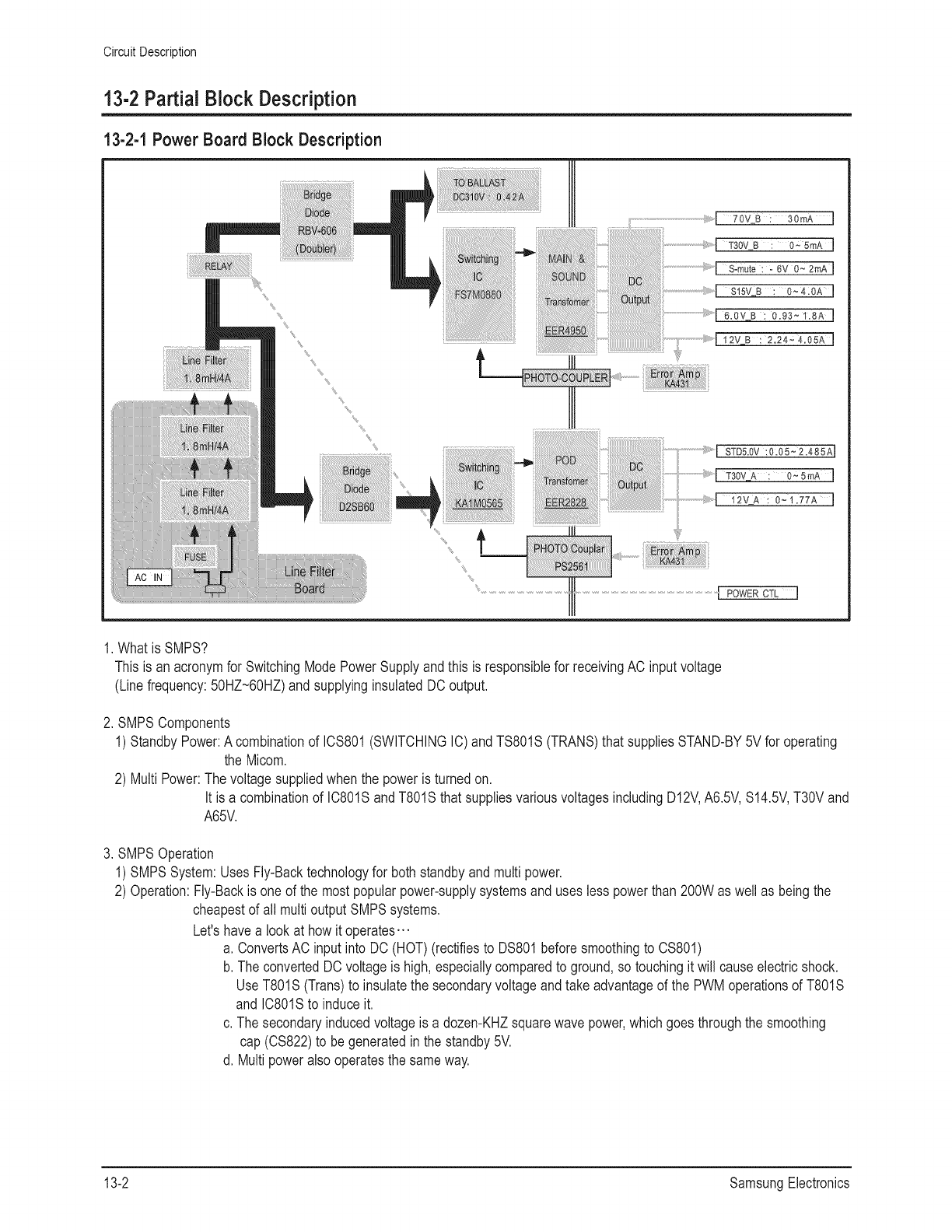

m 13-2PartialBlockDescription …………………………………………….. 13-2

m 13-3NewCircuitDescription ……………………………………………… 13-7

Chapter 14 Reference information

m 14-I Otherissuesrelatedto other products……………………………………. 14-I

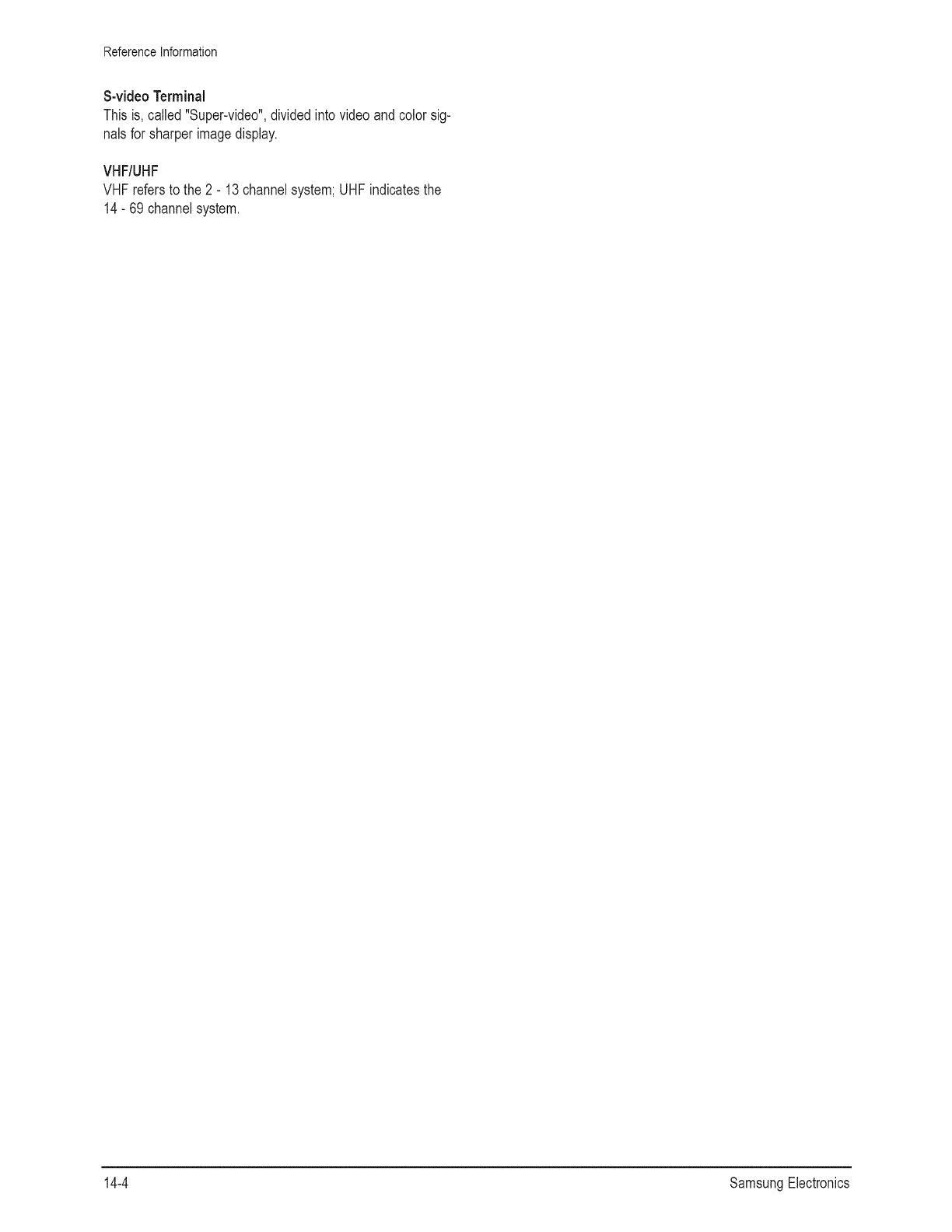

m 14-2TechnicalTerms …………………………………………………… 14-3

Precaution

1. Precaution

Toavoidpossibledamagesor electricshocksor exposureto radiation,followthe instructionsbelowwith regardto safety,

installation,serviceand ESD.

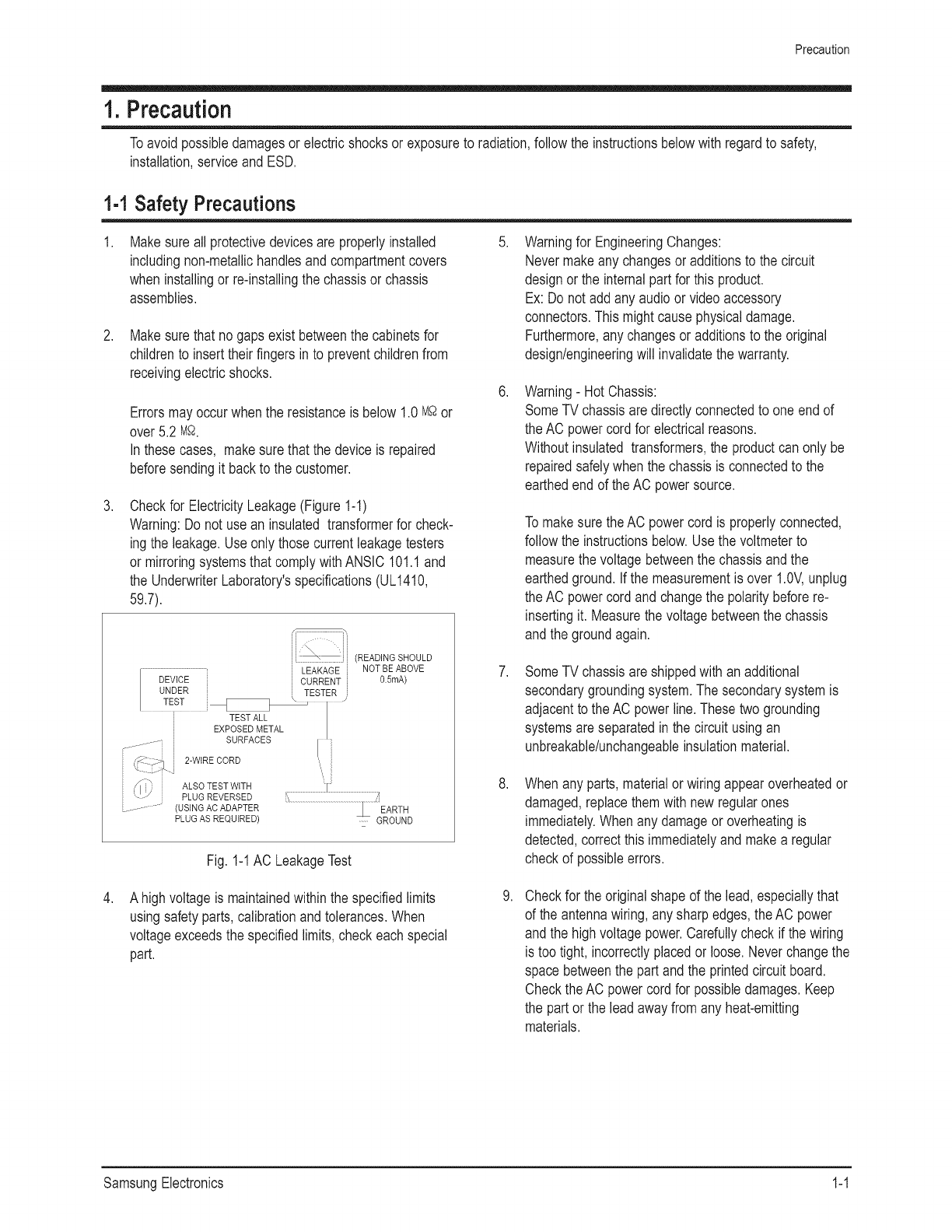

1-1Safety Precautions

,

,

Makesureall protectivedevicesare properlyinstalled

includingnon-metallichandlesandcompartmentcovers

wheninstallingor re-installingthe chassisor chassis

assemblies.

Makesurethatno gapsexist betweenthe cabinetsfor

childrento inserttheirfingersin to preventchildrenfrom

receivingelectricshocks.

Errorsmayoccurwhenthe resistanceis below1.0 M_or

over 5.2 M_.

Inthesecases, makesure thatthe deviceis repaired

beforesendingit backto the customer.

Checkfor ElectricityLeakage(Figure 1-1)

Warning:Donot use an insulatedtransformerfor check-

ingthe leakage.Useonly thosecurrentleakagetesters

or mirroringsystemsthatcomplywithANSIC 101.1and

the UnderwriterLaboratory’sspecifications(UL1410,

59.7).

LEAKAGE

DEVICE CURRENT

UNDER TESTER

i TEST ALL I

i EXPOSED METAL

…………..i SURFACESi

2-WIRE CORD

ALSO TEST WtTH

PLUG REVERSED

…… — ‘ (USING AC ADAPTER

PLUG AS REQUIRED)

(READING SHOULD

NOT BE ABOVE

0.5mA)

……..GROUND

Fig.1-1AC LeakageTest

,

,

Warningfor EngineeringChanges:

Nevermakeany changesor additionsto the circuit

designorthe internalpartfor this product.

Ex: Do notaddany audioor videoaccessory

connectors.Thismightcausephysicaldamage.

Furthermore,anychangesor additionsto theoriginal

design/engineeringwill invalidatethe warranty.

Warning— HotChassis:

SomeTV chassisaredirectlyconnectedto oneendof

theAC powercordfor electricalreasons.

Withoutinsulated transformers,the productcanonly be

repairedsafelywhen thechassisis connectedto the

earthedend of theAC powersource.

TomakesuretheAC powercord is properlyconnected,

followthe instructionsbelow.Usethe voltmeterto

measurethe voltagebetweenthe chassisandthe

earthedground.If the measurementis over 1.0V,unplug

theAC powercord andchangethe polaritybeforere-

insertingit. Measurethe voltagebetweenthe chassis

andthe groundagain.

SomeTV chassisareshippedwithan additional

secondarygroundingsystem.Thesecondarysystemis

adjacentto theAC powerline.Thesetwogrounding

systemsareseparatedin the circuitusingan

unbreakable/unchangeableinsulationmaterial.

Whenany parts,materialor wiringappearoverheatedor

damaged,replacethemwithnew regularones

immediately.Whenany damageor overheatingis

detected,correctthisimmediatelyand makea regular

checkof possibleerrors.

,A highvoltageis maintainedwithinthe specifiedlimits

usingsafetyparts,calibrationand tolerances.When

voltageexceedsthe specifiedlimits,checkeachspecial

part.

,Checkfor the originalshapeof the lead,especiallythat

of the antennawiring,anysharpedges,the AC power

andthe highvoltagepower.Carefullycheck if the wiring

is too tight, incorrectlyplacedor loose.Neverchangethe

spacebetweenthe partand the printedcircuitboard.

ChecktheAC powercordfor possibledamages.Keep

the partor the leadawayfromany heat-emitting

materials.

SamsungElectronics 1-1

Precaution

10.

11.

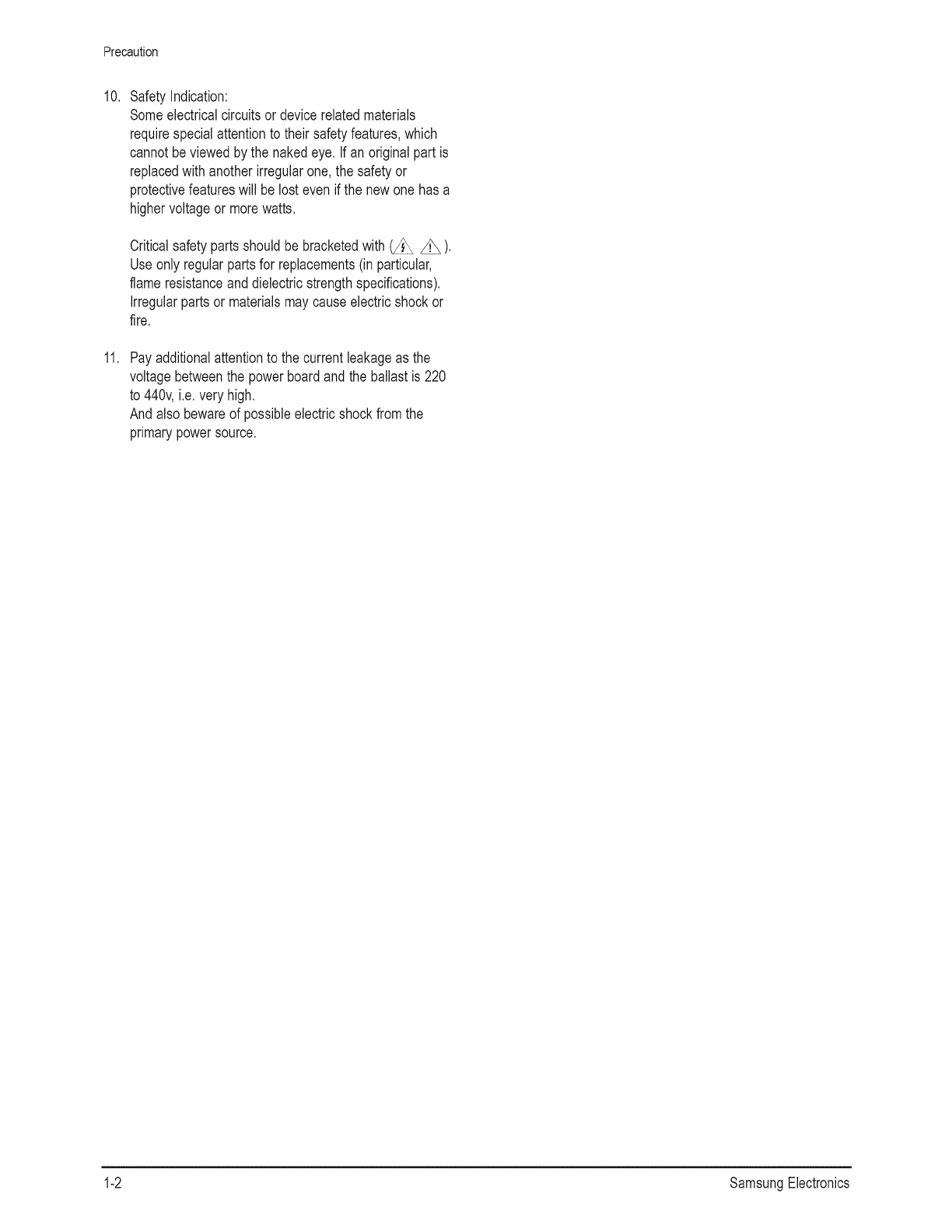

SafetyIndication:

Someelectricalcircuitsor devicerelatedmaterials

requirespecialattentionto their safetyfeatures,which

cannotbe viewedby the nakedeye.If anoriginalpart is

replacedwithanotherirregularone,the safetyor

protectivefeatureswill be losteven if the newone hasa

highervoltageor morewatts.

Criticalsafetypartsshouldbebracketedwith _ Z_ ).

Useonly regularpartsfor replacements(in particular,

flameresistanceand dielectricstrengthspecifications).

Irregularpartsor materialsmaycauseelectricshockor

fire.

Payadditionalattentionto the currentleakageas the

voltagebetweenthe powerboardandthe ballastis 220

to 440v,i.e. veryhigh.

Andalso bewareof possibleelectricshockfromthe

primarypowersource.

1-2 SamsungElectronics

Precaution

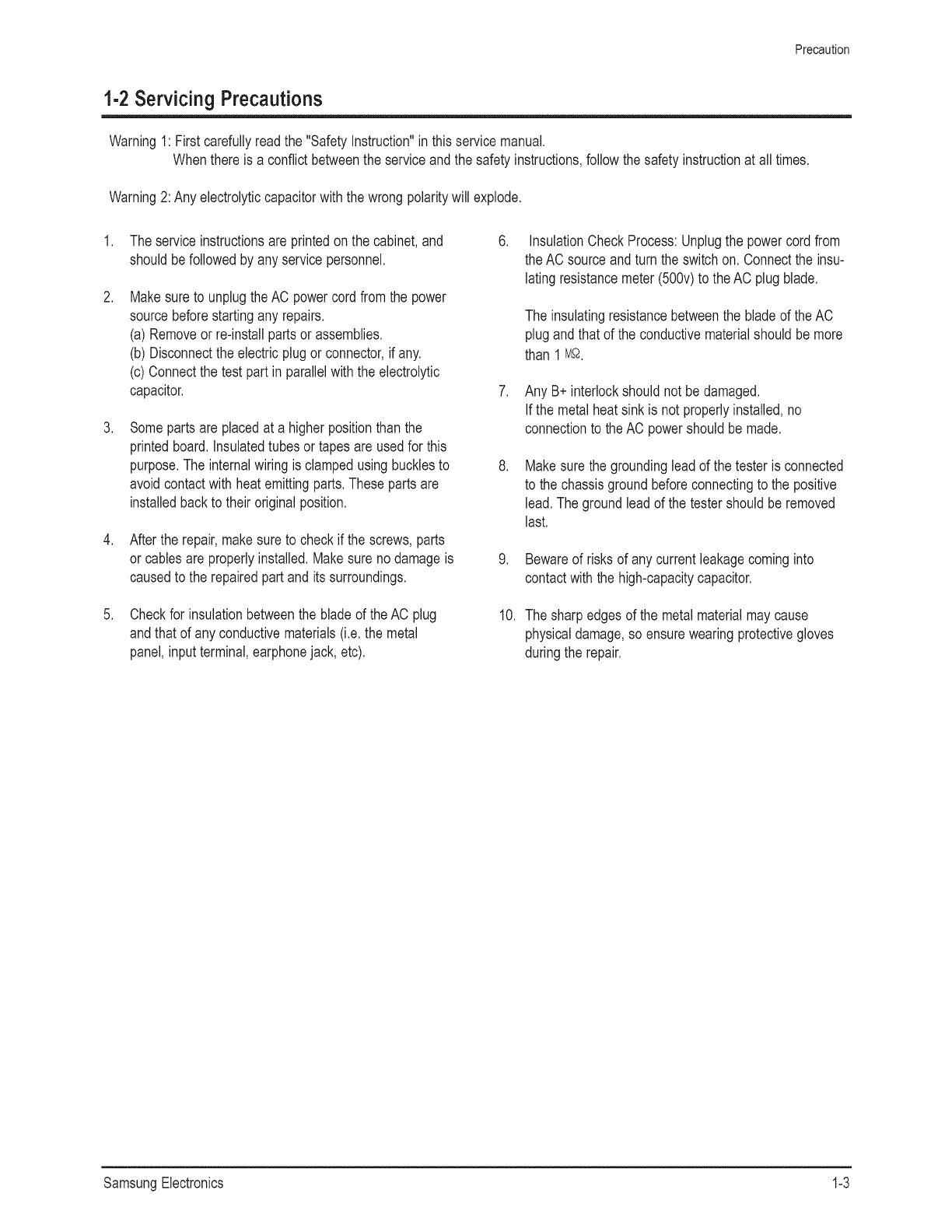

1-2Servicing Precautions

Warning1: Firstcarefullyreadthe «Safety Instruction»inthisservicemanual,

Whenthereis a conflictbetweenthe serviceandthe safetyinstructions,followthe safetyinstructionat all times,

Warning2:Any electrolyticcapacitorwiththe wrongpolaritywill explode,

,

,

,

,

The serviceinstructionsare printedon the cabinet,and

shouldbefollowedby any servicepersonnel,

Makesureto unplugtheAC powercordfromthe power

sourcebeforestartingany repairs,

(a) Removeorre-installpartsor assemblies,

(b) Disconnectthe electricplugor connector,if any,

(c) Connectthe test partin parallelwiththe electrolytic

capacitor.

Somepartsareplacedat a higherpositionthan the

printedboard.Insulatedtubesortapesare usedfor this

purpose.The internalwiringis clampedusing bucklesto

avoidcontactwithheat emittingparts,Thesepartsare

installedbackto theiroriginalposition.

Afterthe repair,makesureto checkif the screws,parts

or cablesare properlyinstalled.Makesure nodamageis

causedto the repairedpartand itssurroundings,

Checkfor insulationbetweenthe bladeof the AC plug

andthatof anyconductivematerials(i,e,the metal

panel,inputterminal,earphonejack, etc),

6, InsulationCheckProcess:Unplugthe powercord from

theAC sourceand turnthe switchon. Connectthe insu-

latingresistancemeter(500v)to the AC plugblade,

The insulatingresistancebetweenthe bladeof theAC

plugandthatof the conductivematerialshouldbemore

than 1 M_,

7, Any B+interlockshouldnot be damaged,

If the metalheatsinkis not properlyinstalled,no

connectionto theAC powershouldbemade,

,Makesurethe groundingleadof the testeris connected

to the chassisgroundbeforeconnectingto the positive

lead.The groundleadof the testershouldberemoved

last.

9, Bewareof risksof any currentleakagecominginto

contactwiththe high-capacitycapacitor,

10, The sharpedgesof the metalmaterialmaycause

physicaldamage,so ensurewearingprotectivegloves

duringthe repair.

SamsungElectronics 1-3

Precaution

1-3Static Electricity Precautions

,

,

,

Somesemi-conductive(«solidstate»)devicesare

vulnerableto staticelectricity.Thesedevicesare known

as ESD.ESDincludesthe integratedcircuitandthefield

effecttransistor.To avoidanymaterialsdamagefrom

electrostaticshock,followthe instructionsdescribed

below.

Removeany staticelectricityfromyour bodyby

connectingthe earthgroundbeforehandlingany

semi-conductivepartsor ass’ys.Alternatively,weara

dischargeablewrist-belt.

(Makesure to removeany staticelectricitybefore

connectingthe powersource- this is a safetyinstruction

for avoidingelectricshock)

Removethe ESDass’yand placeit on a conductive

surfacesuchas aluminumfoil to preventaccumulating

staticelectricity.

,

,

g,

Useonly anti-staticsolderremovaldevices.

Mostsolderremovaldevicesdo not supportan

anti-staticfeature.A solderremovaldevicewithoutan

anti-staticfeaturecan storeenoughstaticelectricityto

causedamageto the ESD.

Do not removethe ESDfromthe protectivebox untilthe

replacementis ready.MostESD replacementsare

coveredwith lead,whichwill causea shortto the entire

unit dueto the conductivefoam,aluminumfoil or other

conductivematerials.

Removethe protectivematerialfrom the ESD

replacementleadimmediatelyafterconnectingit to the

chassisor circuitass’y.

Takeextremecautionin handlingany uncoveredESD

replacements.Actionssuchas brushingclothesor lifting

Donot use any Freon-basedchemicals.

Suchchemicalswill generatestaticelectricitythat

causesdamageto the ESD.

5. Useonly grounded-tipironsfor solderingpurposes.

your legfromthe carpetfloorcan generateenoughstatic

electricityto damagethe ESD.

CAUTION

Theseservicinginstructionsarefor use by

qualifiedservicepersonnelonly.

Toreducethe riskof electricshockdo not

performany servicingotherthanthatcontainedinthe

operatinginstructionsunlessyou arequalifiedto do so.

1-4 SamsungElectronics

Precaution

1-4 Installation Precautions

,

,

,

Forsafetyreasons,morethan twopeopleare required

for carryingthe product.

Keepthe powercord awayfromany heat emitting

devices,as a meltedcoveringmaycausefire orelectric

shock.

Wheninstallingthe product,makesureto keepit away

fromthewall (morethan 10cm/4inches)for ventilation

purposes.

Poorventilationmaycausean increasein the internal

temperatureof the product,resultingin ashortened

componentlife anddegradedperformance.

,

,

Makesureto turn the poweroffand unplugthe power

cordfromthe outletbeforerepositioningthe product.

Alsocheckthe antennacable orthe externalconnectors

if theyare fullyunplugged.Damageto the cordmay

causefire or electricshock.

Keeptheantennafar awayfromany high-voltagecables

andinstallit firmly.Contactwiththe high-voltagecableor

the antennafallingover maycausefire or electricshock.

Whenconnectingthe RFantenna,checkfor a DTV

receivingsystemandinstalla separateDTVreception

antennafor areaswithno DTVsignal.

Checkthe basicsof the screentest.

— Imageposition/size,Tilt adjustment,Actuatoractivation

Bendthe externalantennacablewhen connectingit to

the product.Thisis a measureto protectit frombeing

exposedto moisture.Otherwise,it maycausea fire or

electricshock.

SamsungElectronics 1-5

Product Specification

2. ProductSpecification

2-1 Product Features

Block I SpeCfication I Major tC I Remark

DMD- PanelResolution‘ 1920×1080

-Integrated HDTVTuner

RE (NTSC/ATSC/QAMTUNEREmbedded)

Power ‘- InputVoltageAC120V

— Stand-By under25W

— DNle4-NTSC,ATSC-HDMI,PC

Video — 3D Combfilter

sOUnd- speaker’ 20Wx 2

— TrusurroundXT,DolbyDigital

Cabinet L6Design

xHD3DMD Panel

ATINXT2004,QAMLink

Stand-by(KA1M0565)

ADV7401,ATIX226B,

uD64083

MSP4440

ChipDescription

— ATIx226B: Xilleon226is the most advancedand highlyintegratedcomponentfor digitalset-topboxes,informationappliances,

andtelevisions.Xilleon226 providesdual-streamhigh-definitiondecodeanddisplay,anassortmentof peripheral

devicecontrollers,andan embeddedmicroprocessor.

— ADV7401: The ADV7402is an integratedvideodecoderthatautomaticallyindicatesandconvertsHigh Definitionor Standard

Definitionanalogbasebandtelevisionsignal intoa 4:2:2componentdigitalvideodata streamcompatiblewith20/16-

bit or 10/8-BitCCIR601/CCIR656outputsfor standarddefinition& SMPTE293M/296M/274M& ITU-R.BT1358for

Highdefinition.All RGBgraphicssignalsareoutputas 30-bit4:4:4 RGBor 20-bit4:2:2YCrCb.

— MSP4440: The MSP44x0Gfamilyof single-chipMultistandardSoundProcessorscoversthe soundprocessingof all analog

TV-Standardsworldwide,as well as the NICAMdigitalsoundstandards.

— ATINXT2004: The NXT2004is a VSB/QAMreceiverdesignedto operatein boththe ATSCterrestrialandcableTV environ

ments.Thedeviceis intendedfor use inset-topapplications,PCbasedapplicationsandDTVsystems.ForVSB

or QAMchannelsthe NXT2004samplesa 44 MHz IFsignal,andpresentsMPEGdata packetsat the output.

— QAMLink: The BCM3125combinesan in-band256-QAMreceiver,an out-of-bandQPSKreceiver,a 4/16-QAMtransmitterand

tunerinterfacefunctions.

— uPD64083: uPD64083realizesa highprecisionY/Cseparationanda noise reductionby the three-dimensionsignal

processingfor NTSCsignal.

SamsungElectronics 2-1

Product Specification

2-2 Key Features

Model HL-R5668W HL-R6168W HL-R6768W

Voltage AC 110- 120V~ AC 110- 120V~ AC 110- 120V~

Frequencyof operation 60mz 60mz 60mz

Powerconsumption 230watts 230watts 230watts

Dimensions 52.36x 15.30x 37.86inches 56.93x 18.37x 41.59 inches 62.36x 19.76x 45.06inches

(WxDXH) 1330x 388.5x 961.7mm 1446x 466.5x 1056.5mm 1584x 502x 1144.5mm

Weight 38.5 Kg/84.77 Ibs 45 Kg/99.21 Ibs 49.8 Kg/109.79 Ibs

II H/WConfiguration

— DMDPanel: 0.85″(1920x1080p,TI)

— 1 OpticalEnginefor the Panel: Slimand Cost-effective

— ColorWheel : R/G/BColorImplementation

— Lamp: 120W: 56″,61″,67″

— 2 NTSC/ATSC/QAMTuners: NTSC/DTVReception,GemstarEPG& IRTransmitter

— SupportHDMIInterface:Adopts DVI/HDMIsystemsfor digitalHDsincludingSTB.

— DNle4: Highqualityimageimplementation

— AnyNetFeature: An enhancedinterfacefor variousexternaldevices

— USBInterface: Usethe USBinterfacefor servicepurposes(S/WUpgrade)

II S/WConfiguration

— MCU: Built-in300MHz MIPSX226BCPU

— 4-LayeredArchitecture: DeviceDriver/OS/HardwareAbstraction/Application

— OSD : 32BitTrue ColorGraphicsOSD

— Enhancedsystemstabilityby separatingthe DTVcontrolandthe applicationcontrolsystemsintomulti-processes.

II Picture

— DMDPanel

* PanelSize:0.85″

* PanelResolution: 1920x 1080

— Tuner: IntegratedHDTVTuner(NTSC/ATSC/QAMTUNEREmbbeded)

— DisplayFormat: 1920x 1080

II Sound

— SoundSystem: TruSurroundXT,DolbyDigital

— Amp/Channel: 2 ChannelDigitalAmp

— SpeakerSystem& Output(RMS)

* Main L/R: 15W+ 15W

* Sound(RMS): 15W+ 15W

II In/OutTerminals

— Rear: 2 RFIn, 3 CVBSIn,3 S-VHSIn,2 ComponentIn, I PC D-SUBIn,

2 HDMIIn(DVlComportableWithAdaptiveJackOnly),1Anynetport,2 IEEE1394,1 GemstarIRout, 1 Opticalaudio,

1 PODCardslot, 1 RS-232Cport

2-2 SamsungElectronics

Product Specification

II Feature

— ComponentInterface(480i/480p/720p/1080i,Y/Pb/Pr)

— DigitalInterface: HDMI

— GraphicInterface: PC

— Language: English/French/Spanish

— PiP: HD/SDPiP

— PictureSize : 4:3/16:9/Zoom1/Zoom2/Panorama

— V-CHIP

— ClosedCaption

— SleepTimer: 180Min,

— AnynetInterface

-IEEE1394

— Opticalsoundoutput

— GemstarIRoutput

— POD

— RS-232C

m Remocon

— TM76A

II PowerSupply

— 120V

II PIPSettings(X : PIPdoesn’toperate,_: PIPoperateandswapdoesn’toperate,__: PIPandswapoperate)

ATSC X X X X X X X X X X X X X ,_

QAM X X X X X X X X X X X X X ,_

NTSC A A OOOOOOO O O A X,_

A A O X O O O O O O O A X A

AV2 A A O O X O O O O O O A X A

AV3 ,_. ,_. OOOXOOO O O ,_ X,_

S-Video1 A, A, O O O O X O O O O ,_ X,_

S-Video2 A, A, O O O O O X O O O A X ,_

S-Video3 ,_. ,_. OOOOOO X O O ,_ X,_

Component1 A, A, O O O O O O O X O ,_ X X

Component2 ,_. ,_. OOOOOOO O X ,_ X X

SamsungElectronics 2-3

Product Specification

2-3 Specifications Analysis

Model HL-R5078W HL-R5668W HL-R6168W HL-R6768W HL-R5087W HL-R5688W

N!

Design

DisplayDevice DLP DLP DLP DLP DLP DLP

Built-tnTuner ATSC, NTSC ATSC, NTSC ATSC,NTSC ATSC,NTSC ATSC,NTSC ATSC,NTSC

1080i,720p, 480p, 1080i,720p, 480p, 1080i,720p, 480p, 1080i,720p, 480p, 1080i,720p, 480p, 1080p,1080i,720p,

DisplayFormat 480i 480i 480i 480i 480i 480p,480i

Screen Size 50 inch 56 inch 61 inch 67 inch 50 inch 56 inch

Aspect ratio 16:9 16:9 16:9 16:9 16:9 16:9

Progressivescan Yes Yes Yes Yes Yes Yes

Digital Comb Filter 3D Comb 3D Comb 3D Comb 3D Comb 3D Comb 3D Comb

Picture FirstSurface Mirror Yes Yes Yes Yes Yes Yes

Brightness 800cd/T; 600cd/r; 500cd/,: 500cd/, 800cd/r; 800cd/T;

Contrast 10000:1 10000:1 10000:1 10000:1 2500:1 10000:1

ColorWheel Size/Bearing 7segment/65¢, 7segment/65¢, 7segment/65¢, 7segment/65¢, 7segment/65¢, 7segment/65¢,

Air Bearing Air Bearing Air Bearing Air Bearing Air Bearing Air Bearing

Anti-glare Sun Screen Yes Yes Yes Yes Yes Yes

Screen Pitch 0.098mm 0.098mm 0.098mm 0.098mm 0.098mm 0.098mm

Image enhancer DNle4 DNle4 DNle4 DNle4 DNle3 DNle4

DMD xHD3 xHD3 xHD3 xHD3 xHD2 xHD3

Base/Tremble/Balance No No No No No No

Equalizer 5 Band 5Band 5 Band 5 Band 5 Band 5 Band

Auto VolumeLeveler Yes Yes Yes Yes Yes Yes

Audio TruSurroundXT TruSurroundXT TruSurroundXT TruSurroundXT TruSurroundXT TruSurroundXT

SurroundSound Dolby Digital DolbyDigital DolbyDigital DolbyDigital DolbyDigital DolbyDigital

Speakersystem 2 Way 4 Speaker 2 Way 4 Speaker 2 Way4 Speaker 2Way 4 Speaker 2 Way4 Speaker 2 Way4 Speaker

Output Power 15Wx2 15Wx2 15Wx2 15Wx2 15Wx2 15Wx2

2-Tuner Split-ScreenPIP Yes(HD/SD/QAM) Yes(HD/SD/QAM Yes(HD/SD/QAM) Yes(HD/SD/QAM) Yes(HD/SD) Yes(HD/SD/QAM)

Split-screen Side-by-Side Yes Yes Yes Yes Yes Yes

Features MTS with dbx Noise Yes Yes Yes Yes Yes Yes

Reduction/SAP

Still Picture Yes Yes Yes Yes Yes Yes

Plug & Play Yes Yes Yes Yes Yes Yes

EPG Gemstar EPG Gemstar EPG Gemstar EPG Gemstar EPG Gemstar EPG Gemstar EPG

Yes Yes Yes Yes Yes Yes

S-VideoIn Rear 2/Side 1 Rear 2/Side 1 Rear 2/Side 1 Rear 2/Side 1 Rear 2 Rear 2

Connections HDTV Component

Video Input (Y, Pb, Pr) Rear 2 Rear 2 Rear 2 Rear 2 Rear 2 Rear 2

1080i/480P/480i

PC Yes Yes Yes Yes No No

HDM] Yes Yes Yes Yes Yes Yes

DigitalSound Optical 1 Optical 1 Optical 1 Optical 1 Optical 1 Optical1

2-4 SamsungElectronics

Product Specification

2-4Accessories

Accessories

oa

_ooOi

?

i ¸

iii _ i

il i

i ii

Item I ttem€ode IRemark

Remocon

AlkalineBattery

Manuai

ANYNETcable

G-LinkCable

VideoCable/

AudioCable

AntennaCable

ComponentCable

OpticalCable

BP59-00071B

4301-000103

BP68-00520A

BN39-00518B

MD96-00036A

SamsungServicecenter

Internalshoppingmall

SamsungElectronics 2-5

Alignment & Adjustment

3. Alignment&Adjustment

3-1 Service Instruction

Checkitemslistedafterchangingeach

_::- _. Check !terns L;Actuator

….::: _/vv versionI PromLUU imaex uelay I ^ ‘

Rep aced terns £5.aln

V-Positi0n’

H-Position CCA Board T’!tFOCUS

Digital Board • • • • •

Analog Board • •

PowerBoard • • •

optical Engine • • • • • •

DMD Board • •

Lamp •

Color Wheel • •

Front LEDAssy •

Actuator

SubdetectorBoard •

1. Softwareversioncheck:

After Enteringthe Servicemode,Checkthe list below

* S/W Notation

«T_EXCAAUSO_00XX»indicates«EXCALIBURBASICMODELUSA,ver.0001″.

2. FrontInformationWindowcheck : Seepage6-7.

3. IndexDelayadjustment: Seepage3-15.

4. ActuatorGainadjustment:Seepage3-17.

5. Vertical/HorizontalPositionadjustment: Seepage3-15.

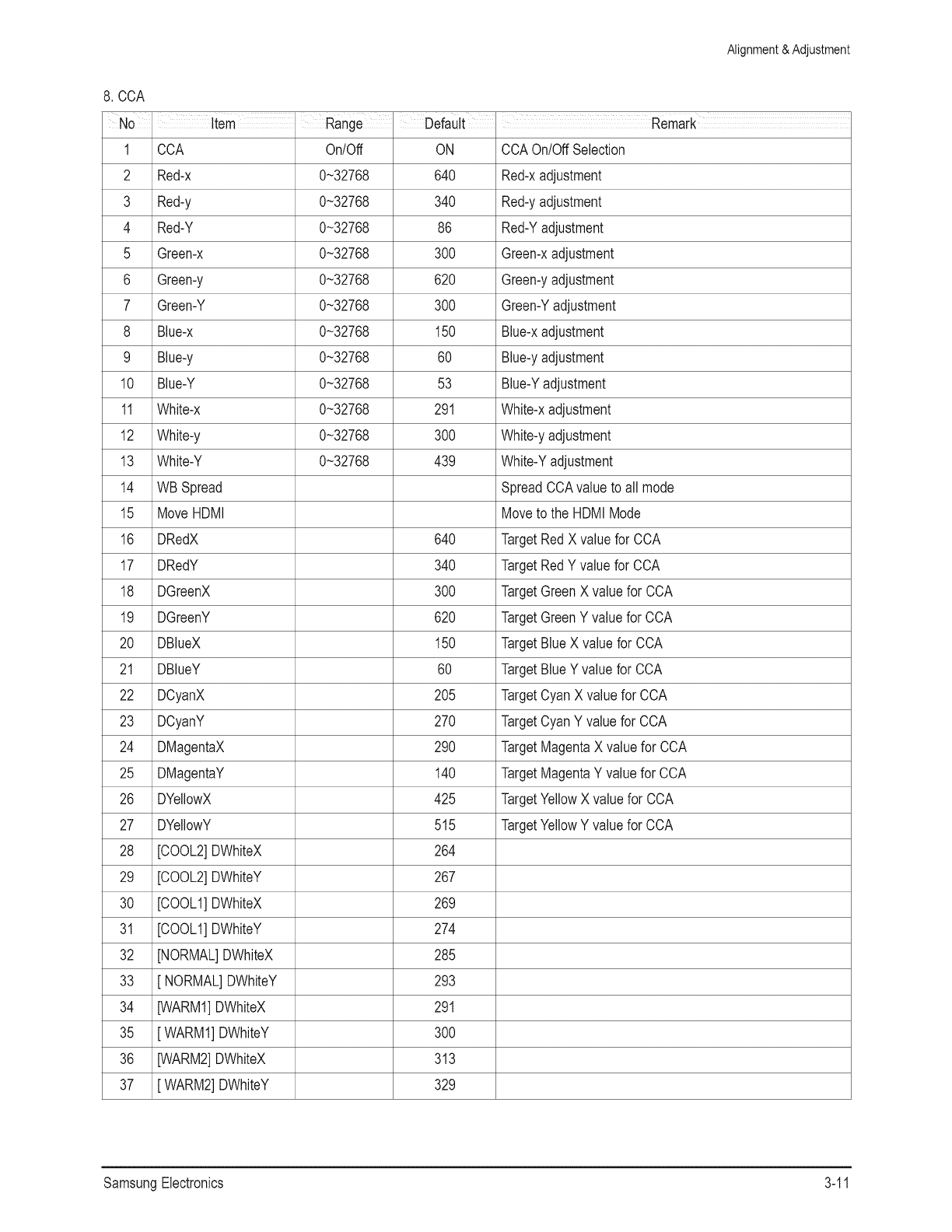

6. CCA: Seepage3-16.

7. BoardLEDcheck : Checkallthe LEDareturnedon.

(in the Analog,DetectBoard)

8. Tilt/Focusadjustment Seepage3-19.

5VA 5,7VB

R7 .R6

3

1.2Kohm

1K

J 1/10W

0P1 0P2

b

PowerCheckIndicatorLED

(AnalogBoard)

12VB

T_EXCAAUSO_00XX

2005 XX XX

T-DTVUCOM5-00XX

T-XMENAUS0_00XX

R8

2K

0Ps

5VA 12VB

P1 (i I

PowerCheckIndicatorLED

(DetectBoard)

SamsungElectronics 3-1

Alignment & Adjustment

3-2 Howto Access ServiceMode

1,Turnoff the powerto put the unit intothe STAND-BYmode,

2, In orderto enterthe ServiceMode,Press«Mute»—> «1» _ «8» _ «2» _ «POWER»buttonon the RemoteControl,

Incaseentryinto SERVICEMODEis unsuccessful,repeatthe proceduresabove,

3, InitialDISPLAYStatein timesof ServiceModeSwitchovers

DDPlOll(LS)

DNle

ADV7401(M)

ADV7401(S)

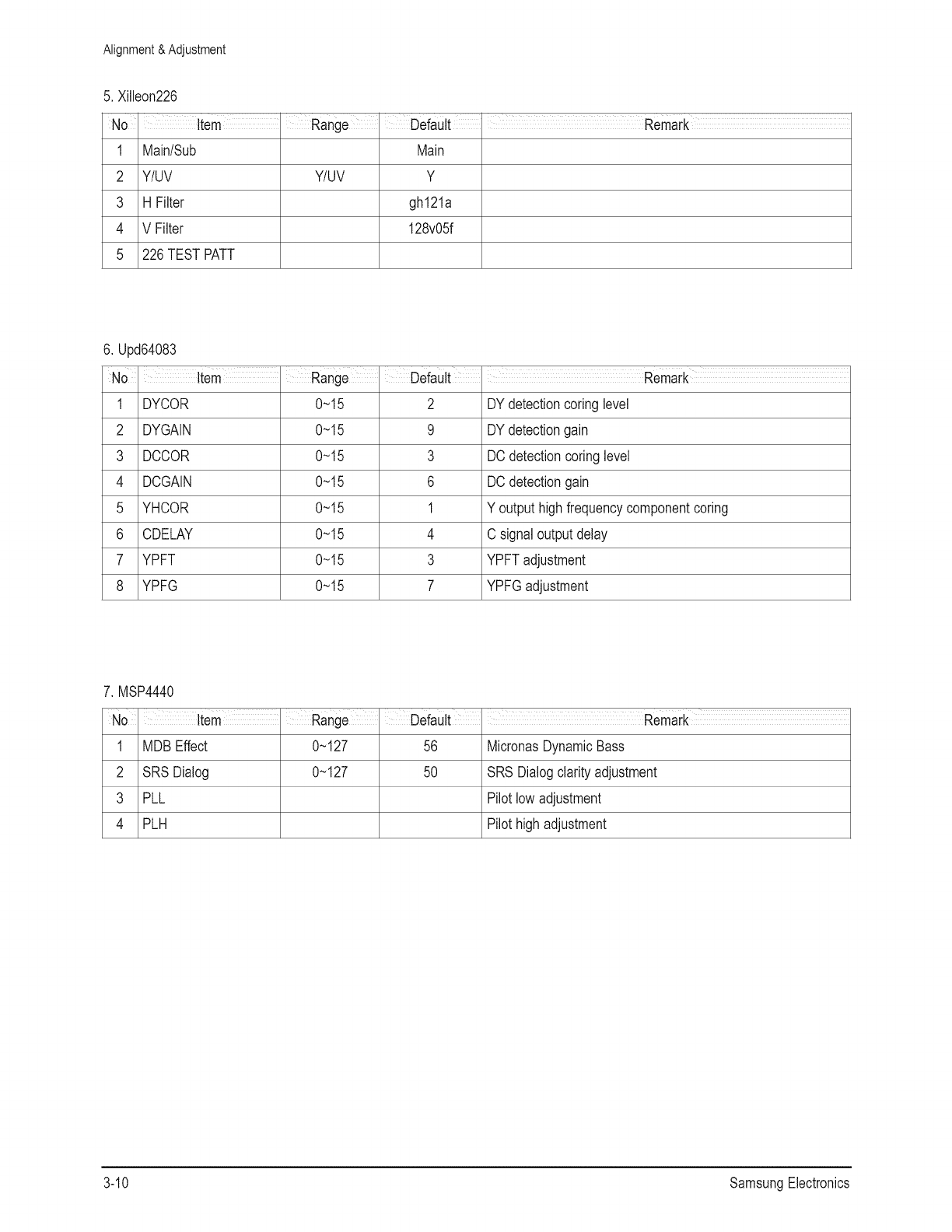

Xilleon226

uPD64083

MSP4440

CCA(ON)

CinemaCCA

SPActuator

ESP

GM1601

CHECKSUM

OPTION

SERVICE

T_EXCAAUSO_00XX

2005 XX XX

T-DTVUCOM5-00XX

T-XMENAUS0_00XX

4, ButtonsoperationswithinServiceMode

MENU Full MenuDisplay/Moveto ParentMenu

Directionkeys v ItemSelectionby Movingthe Cursor

Directionkeys 41 DataIncrease/Decreasefor the SelectedItem

source Cyclesthroughthe activeinputsourcethatareconnectedto the unit

3-2 SamsungElectronics

Alignment & Adjustment

3-3 Factory Data . The underlined are items applied during the service adjustment. None of the others should be adjusted.

1. DDP1011

1 V-Position 0 ~ 60 30

2 H-Position 0 ~ 120 60

3 LAMPSyncType Pulse/Pass Pulse

INDEXDELAY 0 ~ 1023 166

5 SEQSELECT 0X05

6 V-FLIP Normal/Flip Flip

7 H-FLIP Normal/Flip Flip

8 Gamma 0 ~ 15 2

9 SLR 0 ~ 1 OFF

10 DMD_BIAS 0 ~4 E

11 LampBoost 0 ~ 63 20

12 LampSyncDelay 0 ~ 4095 0/120

13 FPGA xHD3

14 LampWatt 132W

15 LampSelect Phiiips

16 TestPattern 0

Screenupperandloweradjustment

Screenleft andrightadjustments

Pulse(P),Pass(T)

Synchronizesthe basepositionof the colorwheelwith the

correspondingcolorsignal.

Thisis criticalto the naturalcolordisplay.If the indexdelay

is not properlyset, eventhe correctCCAcordinateswill not

helpwhen displayingnaturalcolors.

SequenceSelection

VerticalFlipOperation

HorizontalFlip Operation

GammaTableSelection

SLR FuncionOn/Off

DMDBiaspin voltageselection

LampBoostvalueselection

LampSyncdelay valueselection

xHD3/xHD4selection

120W/132W

Philips,Osram,Ushio

Thisdisplaysthe built-inpatternof the DDP1011chip.

DDP1011drivesthe DMDpanel,so displayingthis pattern

meansthereis noerrorin the DDP1011projectionfunction

andthe panelitself.

SamsungElectronics 3-3

Alignment & Adjustment

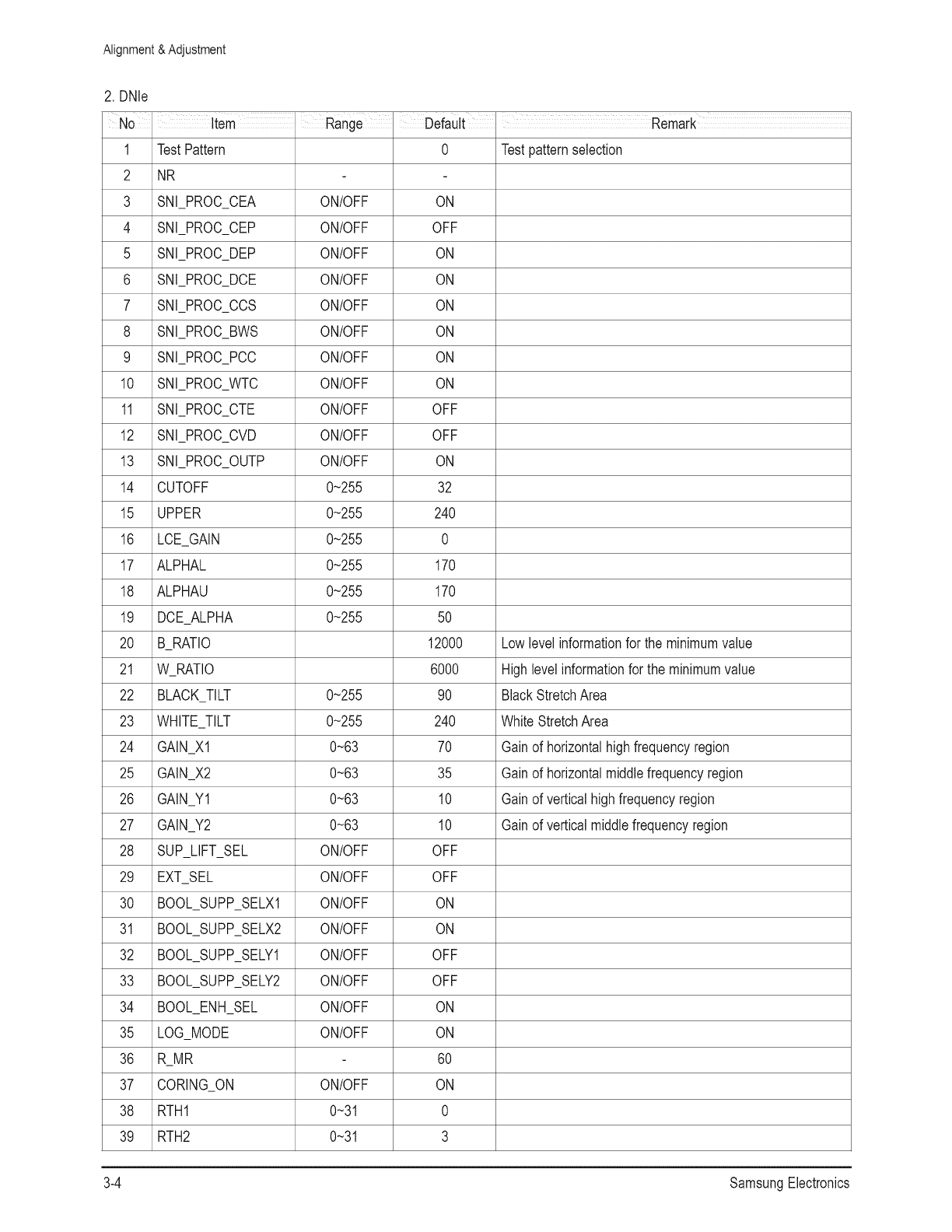

2. DNle

1 TestPattern 0 Testpatternselection

2 NR

3 SNI_PROC_CEA ON/OFF ON

4 SNI_PROC_CEP ON/OFF OFF

5 SNI_PROC_DEP ON/OFF ON

6 SNI_PROC_DCE ON/OFF ON

7 SNI_PROC_CCS ON/OFF ON

8 SNI_PROC_BWS ON/OFF ON

9 SNI_PROC_PCC ON/OFF ON

10 SNI_PROC_WTC ON/OFF ON

11 SNI_PROC_CTE ON/OFF OFF

12 SNI_PROC_CVD ON/OFF OFF

13 SNI_PROC_OUTP ON/OFF ON

14 CUTOFF 0~255 32

15 UPPER 0~255 240

16 LCE_GAIN 0~255 0

17 ALPHAL 0~255 170

18 ALPHAU 0~255 170

19 DCE_ALPHA 0~255 50

20 B_RATIO 12000 Lowlevel informationfor the minimumvalue

21 W_RATIO 6000 Highlevelinformationfor the minimumvalue

22 BLACK_TILT 0~255 90 BlackStretchArea

23 WHITE_TILT 0~255 240 WhiteStretchArea

24 GAIN_X1 0~63 70 Gainof horizontalhighfrequencyregion

25 GAIN_X2 0~63 35 Gainof horizontalmiddlefrequencyregion

26 GAIN_Y1 0~63 10 Gainof verticalhighfrequencyregion

27 GAIN_Y2 0~63 10 Gainof verticalmiddlefrequencyregion

28 SUP_LIFT_SEL ON/OFF OFF

29 EXT_SEL ON/OFF OFF

30 BOOL_SUPP_SELXl ON/OFF ON

31 BOOL_SUPP_SELX2 ON/OFF ON

32 BOOL_SUPP_SELY1 ON/OFF OFF

33 BOOL_SUPP_SELY2 ON/OFF OFF

34 BOOL_ENH_SEL ON/OFF ON

35 LOG_MODE ON/OFF ON

36 R_MR 60

37 CORING_ON ON/OFF ON

38 RTHI 0~31 0

39 RTH2 0~31 3

3-4 SamsungElectronics

Alignment & Adjustment

4O

41

42

43

44

45

46

47

48

49

5O

51

52

53

54

55

56

57

58

59

60

61

NDON

M_CCT_FAC

SCALE_ALPHA

WB RED C COEFF

WB_GRN C COEFF

WB BLU C COEFF

WB RED B COEFF

WB_GRN B COEFF

WB BLU B COEFF

R_Coring_TH1

R_Coring_TH2

R_Coring_TH3

R_Coring_TH4

ON/OFF

0~1022

0~255

0~255

0~255

0~255

0~1023

0~1023

0~1023

ON

75

224

128

128

128

512

512

512

3

3

3

3

H_FILTER1 0~11 0

H_FILTER2 0~10 0

V_FILTERI 0~4 0

V_FILTER2 0~3 0

SubColor 53

DNleOn/Off OFF

SubContrast 50~150 105 Brightnessadjustmentfor the high-lightpartsof the screen

ContrastOffset 5

SubBrightness 235 Brightnessadjustmentfor the low-light partsof thescreen

SamsungElectronics 3-5

Alignment & Adjustment

3.ADV7401(M)

1 AUTOCOLOR

2 SOG_SYNC_LEV

3 AGC_TIM

4 GAIN_MAN

5 A_GAIN

6 B_GAIN

7 C_GAIN

8 A_OFFSET

9 B_OFFSET

10 C_OFFSET

11 YPM 64

12 YSFM 1

13 WYSFM 19

14 CSFM 0

15 Contrast 128

16 Brightness 128

17 Hue 128

18 CKILLTHR 3

19 SD_OFF_Cb 128

20 SD_OFF_Cr 128

21 SD_SAT_Cb 125

22 SD_SAT_Cr 125

23 IFFILTSEL 3

24 LTA 0

25 CTA 2

26 DNR_THI 0

27 DCT 0

28 LAGC 0

29 LAGT 3

30 LMG 1184

31 CAGC 2

32 CAGT 3

33 CMG 2458

34 CTI AB EN ON

35 CTI_AB 3

Auto Colorfunctionexecution

EmbeddedSyncTriggerLevel

AGC TimeConstantSelection

ON,OFFManualGainControlEnable

ManualGainValuefor ChannelA

ManualGainValuefor ChannelB

ManualGainValuefor ChannelC

ChannelA Offset

ChannelB Offset

ChannelC Offset

Y PeakingFilterMode

Y ShapingFilterMode

WideBandTY ShapingFilterMode

C ShapingFilterMode

ContrastAdjust

BrightnessAdjust

HueAdjust

ColourKillThreshold

SD OffsetCb Channel

SD OffsetCr Channel

SaturationCr Channel

SaturationCb Channel

IF FilterSelect

LumaTimingAdjust

ChromaTimingAdjust

DNRNoiseThreshold

DigitalClampTiming

LumaAutomaticGainControl

LumaAutomaticGainTiming

LumaManualGain

ChromaAutomaticGainControl

ChromaAutomaticGainTiming

ChromaManualGain

ON,OFFChromaTransientImprovementAlphaBlend

Enable

ChromaTransientImprovementAlphaBlend

3-6 SamsungElectronics

Alignment & Adjustment

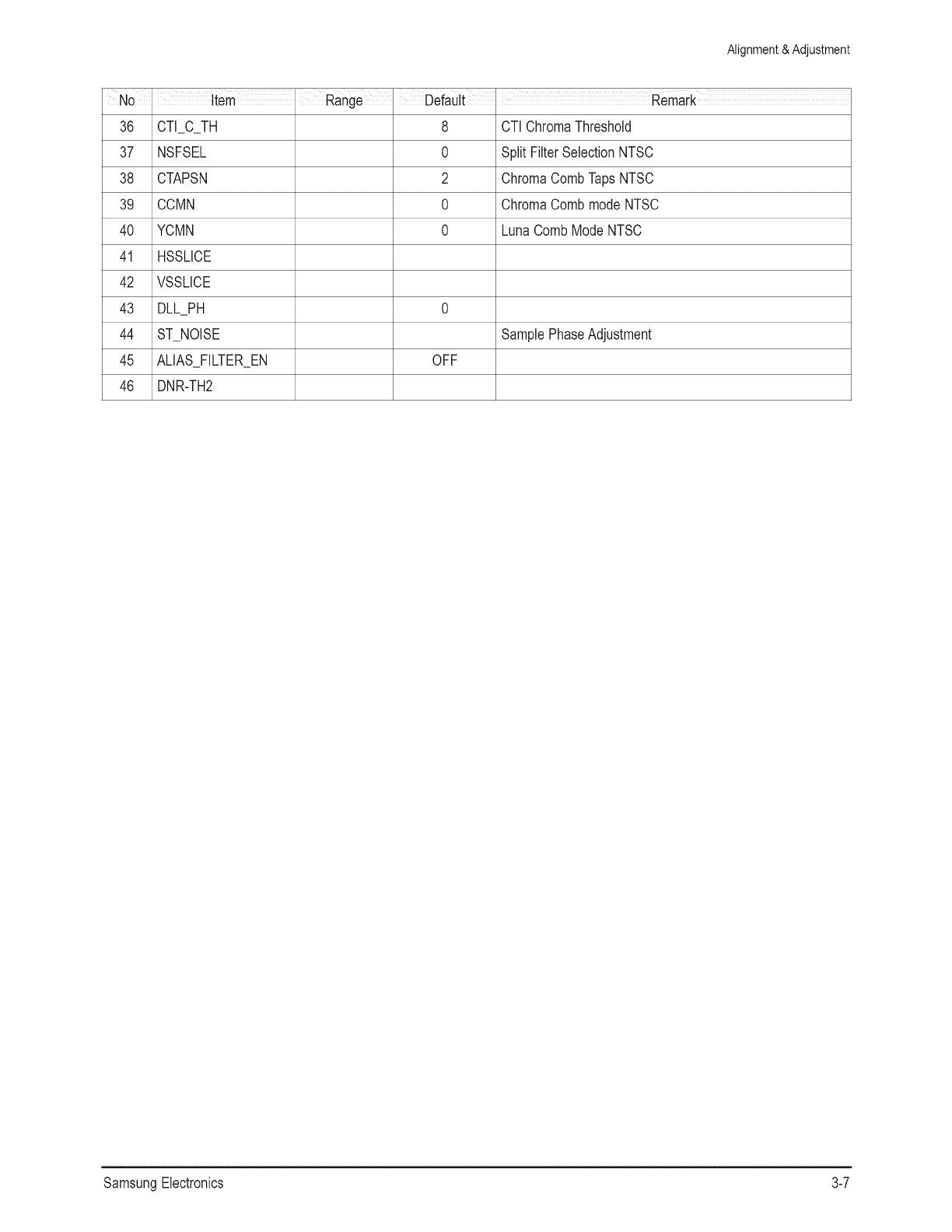

36 CTI C TH

37 NSFSEL

38 CTAPSN

39 CCMN

40 YCMN

41 HSSLICE

42 VSSLICE

43 DLL_PH

44 ST_NOISE

45 ALIAS_FILTER_EN

46 DNR-TH2

8

0

2

0

0

CTI ChromaThreshold

Split FilterSelectionNTSC

ChromaCombTapsNTSC

ChromaCombmodeNTSC

LunaCombModeNTSC

0

SamplePhaseAdjustment

OFF

SamsungElectronics 3-7

Alignment & Adjustment

4. ADV7401(S)

1 AUTOCOLOR

2 SOG_SYNC_LEV 0~31 11

3 AGC_TIM 0~7 0

4 GAIN_MAN ON

5 A_GAIN 0~1024 275

6 B_GAIN 0~1024 287

7 G_GAIN 0~1024 287

8 A_OFFSET 0~1024 0

9 B_OFFSET 0~1024 512

10 C_OFFSET 0~1024 512

11 YPM 0~255 64

12 YSFM 0~32 1

13 WYSFM 0~32 19

14 CSFM 0~7 0

15 Contrast 0~255 128

16 Brightness 0~255 128

17 Hue 0~255 128

18 CKILLTHR 0~7 5

19 SD_OFF_Cb 0~255 128

20 SD_OFF_Cr 0~255 128

21 SD_SAT_Cb 0~255 125

22 SD_SAT_Cr 0~255 125

23 IFFILTSEL 0~7 3

24 LTA 0~3 0

25 CTA 0~7 3

26 DNR_THI 0~255 0

27 DCT 0~3 0

28 LAGC 0~7 0

29 LAGT 0~3 3

30 LMG 0~4096 1064

31 CAGC 0~7 2

32 CAGT 0~3 3

33 CMG 0~4096 2458

34 CTI AB EN ON

35 CTI_AB 0~3 3

Auto Colorfunctionexecution

EmbeddedSyncTriggerLevel

AGC TimeConstantSelection

ON,OFFManualGainControlEnable

ManualGainValuefor ChannelA

ManualGainValuefor ChannelB

ManualGainValuefor ChannelC

ChannelA Offset

ChannelB Offset

ChannelC Offset

Y PeakingFilterMode

Y ShapingFilterMode

WideBandTY ShapingFilterMode

C ShapingFilterMode

ContrastAdjust

BrightnessAdjust

HueAdjust

ColourKillThreshold

SD OffsetCb Channel

SD OffsetCr Channel

SaturationCr Channel

SaturationCb Channel

IF FilterSelect

LumaTimingAdjust

ChromaTimingAdjust

DNRNoiseThreshold

DigitalClampTiming

LumaAutomaticGainControl

LumaAutomaticGainTiming

LumaManualGain

ChromaAutomaticGainControl

ChromaAutomaticGainTiming

ChromaManualGain

ON,OFFChromaTransientImprovementAlphaBlend

Enable

ChromaTransientImprovementAlphaBlend

3-8 SamsungElectronics

Alignment & Adjustment

36 CTI C TH

37 NSFSEL

38 CTAPSN

39 CCMN

40 YCMN

41 HSSLICE

42 VSSLICE

43 DLL_PH

44 ST_NOISE

45 ALIAS_FILTER_EN

46 DNR-TH2

0~255

0~3

0~3

0~7

0~7

8

0

2

0

0

CTI ChromaThreshold

Split FilterSelectionNTSC

ChromaCombTapsNTSC

ChromaCombmodeNTSC

LunaCombModeNTSC

0xFFFF SamplePhaseAdjustment

OFF

SamsungElectronics 3-9

Alignment & Adjustment

5, Xilieon226

1 Main/Sub Main

2 Y/UV Y/UV Y

3 H Filter gh121a

4 V Filter 128v05f

5 226TESTPATT

6, Upd64083

1 DYCOR 0~15 2 DYdetectioncoringlevel

2 DYGAIN 0~15 9 DYdetectiongain

3 DCCOR 0~15 3 DCdetectioncoringlevel

4 DCGAIN 0~15 6 DCdetectiongain

5 YHCOR 0~15 1 Y outputhighfrequencycomponentcoring

6 CDELAY 0~15 4 C signaloutputdelay

7 YPFT 0~15 3 YPFTadjustment

8 YPFG 0~15 7 YPFGadjustment

7, MSP4440

1 MDBEffect 0~127 56 MicronasDynamicBass

2 SRS Dialog 0~127 50 SRSDialogclarityadjustment

3 PLL Pilotlow adjustment

4 PLH Pilothighadjustment

3-10 SamsungElectronics

8,CCA

Alignment & Adjustment

1 CCA On/Off ON CCAOn/OffSelection

2 Red-x 0~32768 640 Red-xadjustment

3 Red-y 0~32768 340 Red-yadjustment

4 Red-Y 0~32768 86 Red-Yadjustment

5 Green-x 0~32768 300 Green-xadjustment

6 Green-y 0~32768 620 Green-yadjustment

7 Green-Y 0~32768 300 Green-Yadjustment

8 Blue-x 0~32768 150 Blue-xadjustment

9 Blue-y 0~32768 60 Blue-yadjustment

10 Blue-Y 0~32768 53 Blue-Yadjustment

11 White-x 0~32768 291 White-xadjustment

12 White-y 0~32768 300 White-yadjustment

13 White-Y 0~32768 439 White-Yadjustment

14 WBSpread SpreadCCAvalueto all mode

15 MoveHDMI Moveto the HDMIMode

16 DRedX 640 TargetRed Xvaluefor CCA

17 DRedY 340 TargetRedY valuefor CCA

18 DGreenX 300 TargetGreenX valuefor CCA

19 DGreenY 620 TargetGreenY valuefor CCA

20 DBlueX 150 TargetBlueX valuefor CCA

21 DBlueY 60 TargetBlueYvalue for CCA

22 DCyanX 205 TargetCyanX valuefor CCA

23 DCyanY 270 TargetCyanY valuefor CCA

24 DMagentaX 290 TargetMagentaX valuefor CCA

25 DMagentaY 140 TargetMagentaY valuefor CCA

26 DYellowX 425 TargetYellowX valuefor CCA

27 DYellowY 515 TargetYellowY valuefor CCA

28 [COOL2]DWhiteX 264

29 [COOL2]DWhiteY 267

30 [COOL1]DWhiteX 269

31 [COOL1]DWhiteY 274

32 [NORMAL]DWhiteX 285

33 [ NORMAL]DWhiteY 293

34 [WARM1]DWhiteX 291

35 [ WARM1]DWhiteY 300

36 [WARM2]DWhiteX 313

37 [ WARM2]DWhiteY 329

SamsungElectronics 3-11

Alignment & Adjustment

9, CinemaCCA

1 DRedX 640 TargetRed Xvaluefor CCA

2 DRedY 340 TargetRedY valuefor CCA

3 DGreenX 300 TargetGreenX valuefor CCA

4 DGreenY 620 TargetGreenY valuefor CCA

5 DBlueX 150 TargetBlueX valuefor CCA

6 DBlueY 60 TargetBlueYvalue for CCA

7 DCyanX 205 TargetCyanX valuefor CCA

8 DCyanY 270 TargetCyanY valuefor CCA

9 DMagentaX 290 TargetMagentaX valuefor CCA

10 DMagentaY 140 TargetMagentaY valuefor CCA

11 DYellowX 425 TargetYellowX valuefor CCA

12 DYellowY 515 TargetYellowY valuefor CCA

13 D-White-X 313 TargetWhiteX valuefor CCA

14 D-White-Y 329 TargetWhiteY valuefor CCA

10,SPActuator

1 ActuatorGain[Pattl] 0~175 95 ActuatorGainadjustment

2 ActuatorGain[Patt2] 0~175 95 ActuatorGainadjustment

3 ActuatorON/OFF ON ActuatorOn/Offselection

4 DBON/OFF ON/OFF ON

5 DBGain 0~3 1

6 DBAperture MINIMAX

7 DBGain 0~255 0

11,ESP(EnhanceSmoothPicture)

xHD3/xHD4Option(Thismodelis notused,)

3-12 SamsungElectronics

12,GM1601

Alignment & Adjustment

1 ADC_RED_GAIN 128

2 ADC_GRN_GAIN 128

3 ADC_BLU_GAIN 128

4 ADC_RED_OFFSET 50

5 ADC_GRN_OFFSET 50

6 ADC_BLU_OFFSET 50

7 MADI_QUANT_TH0 4

8 MADI_QUANT_THI 7

9 MADI_QUANT_TH2 64

10 GAMMA_CONTROL OFF

11 AUTO_COLOR OFF

12 TEST_PATTERN 0

13 SP_AMP 0

14 SP_PERIOD 0

13,OPTION

1 LampClear Initializelampusagetime, LampLife is set to zero

2 UserReset All user settingsaresetto default

3 WB Reset OFF Initializethe WhiteBalancevalue

4 EERReset Clearthe EEPROM

5 LampLife Lampontimecounter

Thesets turnsonautomaticallywhen the powercord is

6 AUTOPOWER ON pluggedin

7 DNleDemo ON/OFF ON DNIeDemofunctionselection

8 LampControl DynamidNormal Dynamic Dynamic,Always

Timewhichthescreenwill beblackwhileswitching

9 MUTETIME 400ms channels

10 EDIDWRITE

11 DDCProtection ON/OFF OFF DDCwriteON/OFFselection

12 LNADefault Auto!OFF Auto LNAsettingOFF/Autoselection

13 PROTECT ON ProtectionON/OFFselection

14 WATCHDOG OFF WatchDog ON/OFFselection

15 WDCOUNT 0 Countfor WatchDogevent

16 DEBUGMODE ATI226/GM1601 ATI226

17 DSUBMODE RS232

18 BUSSTOP OFF

19 DIGITAL—>DMD Totransthe CCAdataformDIGITALto DMD

20 DMD—>DGITIAL Totransthe CCAdataformDMDto DIGITAL

SamsungElectronics 3-13

Alignment & Adjustment

14,SERVICE

1 V-Position

2 H-Position

3 LAMPSYNC

4 ActuatorGain[_

5 ActuatorGain[_

6 INDEXDELAY

7 FPGA

8 LampWatt

9 LampSelect

10 AUTOCOLOR

11 CCA

12 LampClear

13 UserReset

0 ~ 60

0 ~ 120

0~175

0~175

0 ~ 1023

30

60

95

95

173

xHD3

132W

Phiiips

OFF

Screenupperandloweradjustment

Screenleft andrightadjustments

ActuatorGainadjustment

ActuatorGainadjustment

Indexdelayadjustment

xHD3/xHD4selection

Auto Colorfunctionexecution

CCAmenu

InitializeLampusagetime

All user settingsaresetto default

3-14 SamsungElectronics

Alignment & Adjustment

3-4 ServiceAdjustment

3-4-1 Vertical /Horizontal PositionAdjustment

1.Turnoff the powerto put the unit intothe STAND-BYmode.

2. In orderto enterthe ServiceMode,Press«Mute»_ «1» _ «8» _ «2» _ «POWER»buttonson the RemoteControl.

3. Select»Service»on the first displayof the Servicemodemenu.

4. SelecttheV-positionfor verticalpositioningand H-positionfor horizontalpositioningby usingthe A ‘v’ (Up& Down)buttons.

Pressthe _ i_ (Leftor Right)buttonsto adjustthe screenposition.

Do notset theV-positionvalueto 34or 35. (Settingto thesevalueswill causehorizontallines onthe right sideof the screen.)

3-4-2 INDEX DELAYAdjustment

1.Turnoff the powerto put the unit intothe STAND-BYmode.

2. In orderto enterthe ServiceMode,Press«Mute»_ «1» _ «8» _ «2» _ «POWER»buttonson the RemoteControl.

3. Select»Service»on the first displayof the Servicemodemenu.

4. Pressthe A v’ (Up or Down)buttonto moveto INDEXDELAY,then pressENTERto select.

5. The INDEXDELAYsetupscreen(witha redbarat the bottomof the screen)will be displayed.

6. Pressthe _ _ (Leftof Right)buttonsto adjust.Checkthe redcolor at the bottomof the screenat its minimumandmaximum

valuesof changingfrom redto magenta,thenadjustto the meanvalue.

SamsungElectronics 3-15

Alignment & Adjustment

3-4-3 CCA Adjustment Service Methods

: CCAAdjustmentis neededafterchanginga light engine,digital boardor ColorWheel.

II CCA: In DLPTV,eventhe sameRGBcolormaydifferdependingon the light engine.CCA(ColorCoordinateAdjustment)

correctsthe colorto achievethe coloraccuracy.CCAperformscolor correctionaftermeasuringandinputtingthe current

light engine’sdata onactualcolorcoordinatesfor displayedRed,Green,Blue,andWhitecolor patterns,usingcolor

coordinatemeasuringequipment.

At this moment,colorcorrectionis performedon the basisof previouslyinputtedDesiredColorCoordinatesand

MeasuredColorCoordinates.

1. Conditionof the ServiceEngine

2. CCAServiceProcedures

ToexecuteCCAadjustment,performthe followingsteps :

1)Turnoff the powerto put the unit intothe STAND-BYmode.

2) In orderto enterthe ServiceMode,Press«Mute»_ «1»_ «8» _ «2» _ «POWER»buttonson the RemoteControl.

3) Fromthe FactoryServiceModeMenu,selectOPTION> DMD_ DIGITAL.(Thisis for gettingthe ccadataof newengine.)

3-1)AfterLight Engineis changed

— selectOPTION> DMD_ DIGITAL

3-2)AfterDigitalPCBis changed

— selectOPTION> DMD_ DIGITAL

3-3)AfterDMD PCBis changed

— selectOPTION> DIGITAL_ DMD

3-4)Aftercolorwheelis changed

— selectDDP1011> INDEXDELAY

(Youcanonly adjustthe INDEXDELAY.Youcan’t adjustthe CCAwithoutCCAequipment(CA210).)

3-16 SamsungElectronics

Alignment & Adjustment

3-4-4 ACTUATOR GAIN Adjustment

1. BeforeAdjustment

1)Turnoff the powerto put the unit intothe STAND-BYmode.

2) In orderto enterthe ServiceMode,Press»Mute»_ «I» _ «8» _ «2» _ «POWER»buttonon theRemoteControl.

3) Select»Service»on thefirst displayof the Servicemodemenu.

4) Pressthe A ‘v (Upor Down)buttonto moveto ACTUATORGAIN1,2,then pressENTERto select.

—ActuatorGain1‘In caseof controllingwith CrossPattern.

J_

BeforeAdjusting AfterAdjusting

—ActuatorGain2‘In caseof controllingwith CrosshatchPattern.

CROSSHATCHPATTERN

………….

……………..

÷

…………………bl …..

……._………..+,_,_,,

……………

……4 ……..

CAUSTION:GAIN2 isjust controlledbyyour

eye becausecontrol valuedoesn’t

appear In picture.

2. MakingAdjustments

1)As shownin the pictureabove,changetheactuatorvaluesto eliminatesaw toothshapes.

— Tofine tune,increasethe data valueensuringthatyou getthe centerbetweenthe startingandendingpointsof the

disappearingsaw toothshape.

SamsungElectronics 3-17

Alignment & Adjustment

3-5 Software Upgrade

1. Preparethe USBmemorystickwiththe built-infirmware.

2. Whilethe TV is off, insertthe USBstickinto the SERVICEterminal.

3. Whenturningonthe TV,thereshouldbea longbeepingtoneand thefirmwaredownloadprocessshouldstart.If thereis no

soundfromthe TV,turn it offandthen on again.

4. Whenthe downloadis complete,therewill beanotherlongbeepingtoneand theTV will go into standbymode.

Checkfor the FirmwareVersion

1)Turnoff the powerto put the unit intothe STAND-BYmode.

2) In orderto enterthe ServiceMode,Press»Mute»—> «1» _ «8» _ «2»_ «POWER»buttonson the RemoteControl.

3) In caseentryinto SERVICEMODEis unsuccessful,repeatsteps 1and2 directlyabove.

4) Youcancheckthe firmwareversionat the bottomof the Factorymenu, T_EXCAAUSO_00XX

2005XX XX

T-DTVUCOM5-00XX

T-XMENAUS0_00XX

3-18 SamsungElectronics

Alignment & Adjustment

3-6 Replacements & Calibration

3-6-1 Tilt the Screen

1. Removethe 12pointscrews.Removethe Bottomcover.

Fixthesafetyswitchon the rightwithtape so thatthe set

can beturnedon afterremovingthe bottomcover.

: TH,B,M4.L15,BLK,SWRCH18A

2. Removethe 3 pointsscrews.

* Left2 pointsscrews

: PWH,S,M3,L8,ZPC(YEL),SWRCH18A

* Right1 pointsscrew

: PWH,S,M3,L7,ZPC(YEL),SWROH18A

3. Turnoffthe powerto put the unit intothe STAND-BYmode.

Inorderto enter the ServiceMode,Press»Mute»_ «1» _ «8» _ «2» _ «POWER»buttonson the RemoteControl.

Select«DDP1011(L8)»on thefirst displayof the ServiceModemenu.Pressthe A ‘v (Upor Down)buttons,then press

ENTERto select.Pressthe !_ (Right)buttonuntil yousee the CROSSHATCHPATTERN.

Then,adjustthe screenposition,by holdingbothof the uppercornersof the DMD board.

CROSSHATCHPATTERN

l

…….#==

Fixthe safetyswitchon the rightwithtape so thatthe ]

set can beturnedonafter removingthe bottomcover.J

-_ Evenwhen thosescrewsare removed,the boarddoesnot separateit can be movedwithinthe adjustablerangebecausethere

are springscrewsat the centerholdingit.

-_ Whenadjustingthe screen,it is betterfor twopeopleto worktogether.

Onepersonshouldadjustthe picturepositionwhile the otherpersonlooksat the screen.

-_ The movementdirectionof the boardandthe pictureare opposite.

— Whenthe boardis liftedupward,the screendescendsdown.

— Whenit is tiltedto the left,the screentilts to the right.

-_ Whenthe pictureadjustmentis completed:

First,tightenthe twoscrewson the leftof the DMDboardandthen slowlytightenthe onescrewonthe bottomright.

Becarefulnot to touchthe boardwhiletighteningthe screws.

(Whenusingan electric-poweredscrewdriver,becarefulthatthe torqueis not too high.)

SamsungElectronics 3-19

Alignment & Adjustment

3-6-2 Align the Focus

1. Removethe 7 screws.

: TH,B,M4.L15,BLK,SWRCH18A

2. Pullout the holderChassis

3. Adjustthe Lens Focus

1) Inputa Crosshatchpatternor enterservicemodeanduse the

internalgeneratedpatterns.

2)Adjustthe focusalignmentdialof the ProjectionLens

Clockwiseor CounterClockwise(Seepicturein step4) until

the pictureis clear.

3)Sincethe alignmentis donefromthe rear usea mirroror a

secondpersonto confirmthe adjustmentis complete.

4. Adjustthe Lensfocus. 5. InsertEngineAss’ywithaccuracy.

3-20 SamsungElectronics

Exploded View & Part List

4. Exploded View & Part List

4-1 HLR6768WX/XAA

Yoncan searchfor the updatedpart codethroughITSELFwebsite,

URL:http://itself.sec.samsung.co.kr

/

MO006i

iT0852

r

T0i58j

Loc.Nol Code N01 I Description Specification Q’ty SA/SNA Remark

DIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A

M0006 BP63-00431A COVER-REAR 67L6,HIPS,HB,GRAY,TOP 1 S.A

M0006 BP63-00401A COVER-REARBOTTOM 50L6,HIPS,V0,GRAY 1 S.N.A

M0013 BP96-009380 ASSY COVERP-REARBOTTOM L6,HIPSV0,GR50 1 S.A

M0107 BP61-00892A BRACKET-PCB 50L3,SECC,TI.O,NTR,TOP(BUILT 1 S.N.A

M0107 BP61-00893A BRACKET-PCB 50L3,SECC,T1.0,NTR,BOT(BUILT 1 S.N.A

M0112 BP63-00429D COVER-FRONT 67L6,HIPS,HB,BLK,BKM1326R1,S 1 S.N.A

M0119 BP41-00124B PCBCONTROL HLP5063W,FR-4,2L,A,1.6T,245 1 S.N.A

M0256 BP96-00849F ASSY BRACKETP-MAIN PCB L3,L6,L7,SECC,T1 1 S.A

T0002 BP96-01024A ASSY COVERP-FRONTBOTTOM 67L6,HIPS,HB,G 1 S.A

T0003 BP96-0103OD ASSY COVER P-FRONT 67L6,SEA(L65A),HIPS,H 1 S.A

T0024 BP64-00384B KNOB-FAMILY L6,ABS,HB,GRAY,SVM-3012 1 S.N.A

T003O BP96-01027B ASSY COVER P-SIDE 67L6,HIPS,HB,GR503,LEF 1 S.N.A

T003O BP96-01028B ASSY COVER P-SIDE 67L6,HIPS,HB,GR503,RIG 1 S.N.A

T0053 BP67-00187A SCREEN FRESNEL 67W,1524*875,T2.0 1 S.A

T0054 BP67-00186A SCREEN LENTI 67W,1524*875,T2.1 1 S.A

T0057 BP64-00179A BADGE-BRAND ALL,ALT1.5,83,14,,BLK,SILIV 1 S.N.A

T0061 BP64-00385A WlNDOW-REMOCON 50L3,PC,VlOLET 1 S.N.A

T0062 BP61-00530A HOLDER-POWER 50L3,HIPS HB,GRAY 1 S.N.A

T0066 BP96-00535E ASSY COVER P-DUCT L6,HIPS HB,GRY 1 S.N.A

T0071 BP64-00382A INDICATOR-LED 50L3,ABS CLEAR (LG) 1 S.N.A

T0074 BP59-00071B REMOCON HURRICANE,TM76A,2OO*54*3O,ZlLOG 1 S.A

T0082 BP64-00309B WINDOWLED 50L3,ACRYL,2.0,half-mirror,SE 1 S.N.A

T0091 BP94-01713A ASSY PCBMISC-A/V SIDE HLR6768WX/XAA,L65 1 S.N.A

T0120 BP94-02215B ASSY PCB POWER HLR5067,HURRICANE,L64B,11 1 S.A

T0129 BP96-01198D ASSY ENGINE P-DLP 67L8,PHILIPS 132W,E22, 1 S.A

T0130 BP96-01061A ASSY COVERP-TERMINALBOARD 50L8,HIPSV0 1 S.N.A

T0132 BP94-02229A ASSY PCB MISC-DIGITAL HLR5078(L8),L65A,E 1 S.A

T0138 BP64-00383B KNOB-HOLDER L6,ABS,HB,GRAY,SVM3012 1 S.N.A

T0145 BP94-02228A ASSY PCB MISC-ANALOG HLR5078(L),L65A,EXC 1 S.A

T0158 BP96-009370 ASSY COVER P-MAIN L6ALL,HIPS, V0,GR503 1 S.A

T0175 BP96-01278A ASSY SPEAKERP 8ohm,L6(DLP)_VE,15W 2 S.A

T0186 BP96-01025B ASSY COVER P-GRILLE 67L6,HIPS,HB,GR503,S 1 S.N.A

T0245 BP94-01714A ASSY PCBMISC-KEYCONTROL HLR6768WX/XAA, 1 S.N.A

T0260 BP67-00215A MIRROR-FRONT Front mirror67″,glass,1510 1 S.A

T0267 BP61-00938A BRACKET-MIRRORTOP 67L6,AL6063EXTR 1 S.N.A

T0268 BP94-01758D ASSY PCB MISC-RMCLED HLR6768WX/XAA,L65A 1 S.N.A

T0268 3903-000144 CBF-POWERCORD DT,US,BP3/Y,U(IEC013-RA) 1 S.A

T0514 BP61-00916A BRACKET-SUPPORT 67L6,SECC-1,T1.2,NTR,BAC 2 S.N.A

T0514 BP61-00918A BRACKET-SUPPORT 61L6,SECC-1,T1.6,NTR 2 S.N.A

T0524 BP63-00433A COVER-GRILLE 67L6,HIPS,HB,GR503,SV012P 1 S.N.A

T0527 BP61-01045A BRACKET-COVER L6,SECC-1,T1.2,NTR,BOTTOM 1 S.N.A

T0852 BP96-01026B ASSY COVER P-MIDDLE 67L6,HIPS,HB,GR503,S 1 S.N.A

T0903 BP61-00528A HOLDER-DUST 50L3,HIPS HB,GRAY 2 S.N.A

T0952 BP63-00294B COVERDUST-ASSY L6,HIPS,HB,GRAY 2 S.N.A

SamsungElectronics 4-I

Exploded View & Part List

4-2 L680EngineAss’y

\

,

L680EngineExplodedViewList

No. Loc:No. CodeNo., Description SpeCification ‘ Q’ty’ SA!SNA

1 T0129 BP96-01198A ASSY ENGINE P-DLP 50L8,PHILIPS 120W,E22 1 S.A

2 BP63-00522A COVER-P-J LENS L680,ABS,T2.5 1 S.N.A

3 BP67-00222A LENS-P/J-ASSY Excalibur, GLASS,NTR,FOV=93 1 S.N.A

3-1 BP64-00548A GLASS-ACTUATOR EXCALIBUR,MIRROR,39,34,VC 1 S.N.A

3-2 BP96-00984A ASSY DYNAMIC BLACK P-SEM Dynamic Black,S 1 S.N.A

4 BP63-00520A COVER-MIRROR L680,PC GIF20,T2.5 1 S.N.A

5 BP61-01033A BASE-ENGINE L680,PPS GtF30,T3.0 1 S.N.A

5-1 BP61-01037A BASE-ENGINE L680,MG D/C,T3.0,TOP 1 S.N.A

6 BP96-01103A ASSY COLOR WHEEL P L6,SERVICE 1 S.A

6-1 T0593 BP64-00475A GLASS-COLOR WHEEL 65mm NDF,FLOAT GLASS,T 1 S.N.A

7 T0530 BP63-00510A COVER-LAMP SVP-50L6HR,PPS GtF30,T2.5 1 S.N.A

7-1 BP63-00517A COVER-DUCT DOT SVP-50L6HR,PC GtF20,T3.0 1 S.N.A

8 BP61-00726A HOUSING-LAMP, BOTTOM 23 SVP-50L3HR,AL D/ 1 S.N.A

9 T0049 BP47-00021A LAMP-BALLAST EUC 120 P/H11,120W,130mm ca 1 S.A

9-1 BP61-00728A HOLDER-BALLAST 23 SVP-50L3HR,PC GtF20 1 S.N.A

10 T0530 BP63-00537A COVER-LAMP HURRICANE 720P,PC 1 S.N.A

11 BP61-01014A BRACKET-ENGINE BASE SVP-50L6HR,SECC,T1.6 1 S.N.A

12 BP96-01073A ASSY LAMP P L6,L8(L620,L680),- 61″,Philips 120W 1 S.A

12-1 BP47-00018A LAMP UHP 100W/120W 1.0,E22,65″70 1 S.N.A

13 BP91-00775A ASSY MISC-DETECTOR S/W HLP5063WX/XAA,L62 1 S.N.A

14 BP61-01116A HOLDERqNTERFACE L680,ABS,T2.5,BLACK 1 S.N.A

15 BP94-02230B ASSY POD S-DETECTOR-BID HLR5078(L8),EXCA 1 S.N.A

16 T0286 BP31-00011A FAN-DC AD0612LB-D72GL,RB.T UL94-Vo,Wire 1 S.A

17 T0027 BP94-02230A ASSY POD S-DMD HLR5078(L8),EXCALIBUR,L65 1 S.N.A

17-1 BP61-01043A BRACKET-COOLER L680,AL D/C,T4.0 1 S.N.A

18 T0134 BP67-00218A MIRROR-LIGHT TUNNEL Excalibur, GLASS,5.7* 1 S.N.A

19 BP67-00219A LENSqLL-E1 Excalibur,NBFD13,NTR,R1:INF, 1 S.N.A

20 BP67-00220A LENSqLL E21E3 Excalibur, FD60,BACED5,NTR 1 S.N.A

21 BP67-00221A LENSqLL E4 Excalibur,BACED5,NTR,R1:57.6 1 S.N.A

4-2 SamsungElectronics

Electrical Part List

5. Electrical PartList

5-1 HLR6768WX/XAAService item

Yoncan searchfor theupdatedpart codethroughITSELFwebsite.

URL:http://itself.sec.samsung.co.kr

Loc. No. Code No. Description I specification Q’ty SA!SNA Remark

M0003 BP96-00990A ASSY COVER P-STAND 61L6,HIPS,HB,GR503,SV 1 S.A

M0013 BP96-00938C ASSY COVER P-REAR BOTTOM L6,HIPS V0,GR50 1 S.A

M0018 BP97-00954A ASSY MICOM L65A,29DL32,T_SCALER_0083,050 1 S.A

M0114 BP39-00205A CBF SIGNAL X-MEN,24/24P,UL20276,400mm,UL 1 S.A

T0002 BP96-01024A ASSY COVER P-FRONT BOTTOM 67L6,HIPS,HB,G 1 S.A

T0003 BP96-01030D ASSY COVER P-FRONT 67L6,SEA(L65A),HIPS,H 1 S.A

T0049 BP47-00022A LAMP-BALLAST EUC 132d P/31,132W,130mm ca 1 S.A

T0053 BP67-00187A SCREEN FRESNEL 67W,1524″875,T2.0 1 S.A

T0054 BP67-00186A SCREEN LENTI 67W,1524*875,T2.1 1 S.A

T0074 BP59-00071B REMOCON HURRICANE,TM76A,200*54*30,ZILOG 1 S.A

T0120 BP94-02215B ASSY PCB POWER HLR5067,HURRICANE,L64B,11 1 S.A

T0128 BN39-00518B CBF SIGNAL-STEREO SVP-50L3HR, 1P,UL2464#2 1 S.A

T0129 BP96-01198D ASSY ENGINE P-DLP 67L8,PHILIPS 132W, E22, 1 S.A

T0132 BP94-02229A ASSY PCB MISC-DIGITAL HLR5078(L8),L65A, E 1 S.A

T0145 BP94-02228A ASSY PCB MISC-ANALOG HLR5078(L),L65A, EXC 1 S.A

T0175 BP96-01278A ASSY SPEAKER P 8ohm,L6(DLP)_VE,15W 2 S.A

T0703 BP96-01315A ASSY DMD BOARD P L8 Philips,DMD BOARD,SE 1 S.A

T0888 BP96-01099A ASSY LAMP P L6,L8 (L620,L680),67 INCH -, 1 S.A

T0889 BP96-01103A ASSY COLOR WHEEL P L6,SERVICE 1 S.A

SamsungElectronics 5-1

Troubleshooting

6. Troubleshooting

6-1 Checkpoints by Error Node

1, PowerLight:Checkthe masterswitch(ON/OFF)andthe fuseto see if theyareoperating,

2, LEDBlinking:Seethe basicLEDchecklistin6-2-1,

< BlinkingTemp& TimerLED>

Yes

Yes

No

Yes

< Blinking Lamp and Temp LEDs >

No

Yes

No

No

SamsungElectronics 6-1

Troubleshooting

< BlinkingTempLED>

Yes

A blinkinglampLED is the mostcommonfailureindication.Itcan be causedby no lamp,no colorwheel,no fan(s),orother

defectivecomponents.

Yes

_e1 1_obs _o

6-2 SamsungElectronics

Troubleshooting

3, Noise:

Internalnoisemaybe causedby aforeignsubstanceon the fan or drivingdevice.

For a DLPTV,the lampfan,DMDboardfan and colorwheelarevulnerableto noise.Sometimesthe connectorwire aroundthe

lampor DMDfan makescontactwith thefan, whilethe colorwheelis protectedinsidethe moduleandcannotmakecontactwith

any nearbywires. Howeverthe colorwheelsensoror the drive motormaycausenoiseby makingcontactwiththe colorwheel.

As the colorwheelusesan air bearingsystem,it hasa veryslightpossibilityof creatinginternalnoise.

Whenirregularnoiseoccursfor noparticularreason,checkthe insideof the TV for anyforeignsubstances.

The DLPprojectionTV maycausenoiseas the physicalscreenis emptyinside,causinga resonanceto a particularfrequency.

Thusa lowvibrationis nota malfunction.

Any ‘creaking’noiseis mostlyfromthe structureof the deviceitself.Ashort, harshnoisemayoccurfroma distortionor

malformationdueto thermalexpansionbetweenthe metaljoints,screwsandloadedparts,respectively.Any intermittent‘creaking’

noisecan be removedby looseningthescrews.

4. A blackscreenwiththe lampon: Replacethe DMDboard.

5. LinePattern:Regularlinepatternsoccurverticallyor horizontally:Replacethe DMDboard.

6. VoiceDistortion:Replacethe analogboard.

7. OutsideLight:This is not a productmalfunction,buta possibleinstallationor humanerror.Thisoccurswhen the projectedlight

fromthe surroundingilluminationreflectsontothe screen.Thisdisappearsas the TV startsoperatingandtheTV lampgets

brighter.However,youcan avoidoutsidelight by changingthe positionof the TV orthe installationangle.

Decreasingthe illuminationor changingthe indoorlightingmaywork.

8. ScreenFlip-over:

Enter Factorymodein DDP1011and performH-Flip(flip horizontally)andV-Flip(flipvertically).

The screenwill flip overhorizontallyor vertically.

SamsungElectronics 6-3

Troubleshooting

9, OtherScreenErrors:

i_ 40Verticallines 16pixelswide:

DDP1011or BGA,DMDpanelinterference,

Replacethe DMDboard

i_ HorizontalBaror No Raster:

Errorin DDP1011or the DMPpanel,

Replacethe DMDboard

i_ DottedVerticalBar:

Errorin RambusDram(IC403)or the soldering

Replacethe DMDboard

i_ Beehivemosaicpatternsallover the screen:

Errorin the LVDSReceiver(IC601)or the soldering

The H syncsignalsare nottransferredto DDP1011,

Replacethe DMDboard,

6-4 SamsungElectronics

Troubleshooting

6-1-1 Video Circuit Error Checking

m Basics:

— The DDP1011on the DMDboardhasa featureto displayinternaltest patterns.

— DNle,whichis an endport inthe digital board,has a featureto displayinternaltest patterns.

— The analogboardsendssignalsto ADV7401on the digitalboard.

— The analogboardis thefirst outputandthe digitalboardis the secondone,followedby DMD,whichis the final one.

[] DiagnosisBy Module

1.AccessServiceMode

(In Standbymode,press»Mute»,»1″,«8», «2» and«Power»to turn the screenon andenterservicemode)

2. Checkif thereis an errorin the DMDboard

DDP1011—>TESTPATTERN_ Pressthe rightarrowkey:

Optionsof FULLWHITE,BLACK,RED,GREENand BLUEPATTERNaredisplayedon the screen.

If«Pattern»doesnot appear,thisis a DMDboarderror.

3. Checkif thereis an errorin the digitalboardbeforethe DMD.

Whenthe DMDboardhasbeendeterminedto beerrorfree basedonthe test patterns:

FACTORYMODE_ DNle_ TESTPATTERNnormaldisplay:noerrorin the digitalboard.

If«Pattern»doesnot appear,you haveto checka Analogboardfirst,andchecka DMDBoardsecond,nextchecka Digital

Board.

4. Checkif thereis an errorin theAnalogBoard.

Checkfor a powersignalfrom the analogto the digitalboards.(Seethe circuitdiagrambelow).

_A

33VB

i

I _ii _

57_/R 70VB

Iltl] — —

CN4 I

,_ «‘-ta_’—-‘1’ 7’27Z1_uF

t ‘X

SamsungElectronics 6-5

Troubleshooting

6-1-2 Flow Chart for Malfunction

Yes

No

No

Yes

No

Yes

No

No

Yes

No

1) DVI Cable

Yes

2) Analog Board

No

OP1 ‘ Stand-by5V

OP2 :5VB

OP3: 12VB

6-6 SamsungElectronics

Troubleshooting

6-2 Troubleshooting Procedures by Error Modes

6-2-1 Installation & Connection

•‘Lightis On

(D ‘ Lightis Blinking

‘ Lightis Off

POWER

Pressto turnthe TV on andoff.

Remote Control Sensor

Aimthe remotecontroltowardsthisspoton the TV.

TIMER LAMP: STANDBY/TEMP:’ indication

( b ( b • Standbystate.

(b (D (b The picturewill automaticallyappearinabout 15seconds.

AutoTimerON/OFFhasbeensetandthe setwill automaticallybe turnedon in about25

• (D ( _ seconds.

(D (:) (D A coolingfan insidethe set is not operatingnormally.

( _ (D (D Lampcoveron rearof the set is not properlyshut.

Checkif the ventilationholeon the rearof the set is blocked,becauseif the inner

temperatureis too high,the powerwill shutoff.

(D (D (D Lampmaybedefective.

* Ittakesabout 30secondsfor the TV to warmup, so normalbrightnessmaynot appearimmediately.

* The TV hasa fan to keepthe insidelampfromoverheating.You’lloccasionallyhearit working.

6-2-2 Protect Status

1.Whenthe rearcoveris opened

Asensordetectswhen the rearcoveris openedandturnsthe set offand theninto Standbymode.

If you closethe coverorfix the switch,you canturn the seton by pressingthe Powerbuttononthe unit or the remotecontrol.

The setwill thenoperatenormally.

2. Whenthe temperaturesensoroperates

Whenthe set is overheated,the internaltemperaturesensorturnsthe set offandthe set goesto Standbymode.

Whenthe internaltemperatureof the set returnsto a normalrange(95°C), turn the poweron by pressingthe Powerbuttononthe

unit orthe remotecontrol.Thesetwill thenoperatenormally.

3. Attemptingto turn the lamponfails repeatedly

If turningthe lamponfails, the setautomaticallytriesturningthe lampon 3 times.Ifall attemptsfail,all LED’son thefront panel

will blink.Checkthe lamp andthe ballastandreplacethem, if necessary.

SamsungElectronics 6-7

Troubleshooting

6-3 Troubleshooting Procedures by ASS’Y

6-3-1 Check Lamp & Ballast

1.Whenthe lamp is not on, checkif there is anythingwrongwiththe ballast.

Removethe lamp.Fixthe safetyswitchon the rightwith tapeandturn on the power.

Checkto see if a blueflamestartsignitingin the arc gapinsidethe ballastmomentarilyduringstart-up.

Thereis no problemwiththe ballastif thereis a flame.Whenthe ballasthasno error,replacethe lamp.

A blueflame

occurs

momentariiy

duringstart-

up.

,/,, cf _, Ja,

6-8 SamsungElectronics

Troubleshooting

6-3-2 When the lamp and the ballast are normal but the lamp does not turn on or turns off right after

quickly lighting up

1. Checkthe colorwheel

Checkif the colorwheel is running.+ Checkthe DMDboardandthe ballastfor the signals.

Checkthe secondCN503pinfor inputsignals.When3.5V,180Hzis output,the colorwheelis operatingnormally.

DGT3.3V DGT5V

FT750

CN750 ACN2012-900-2P_

R760

10Kohm

_» DDP CW_NDEX

IC75I

LM393D

L750

1 5uH

C755 C756

100nF 10uF

File _di Vetical Hodzlbcq !ri_ Disr,la_

3.5V 180Hz

11n_GFi417 04 _7

cu_sl Pos

C_2 Pes

/2 168ms

i_ , u-vl,

-_ DMDBoardCheckDiagram

CN752

53398-0590

7_ T

DGT5V

R775 _AA_

LAMPEN _

[_L_R778 _L R779 i

I<_1 t 0Kohm

i 10W I 3 3Kohn, OB LAMPLITZ

R780 (LAMPENSCI)

LAMP_RX

C767

10nF

72

SamsungElectronics 6-9

Block Diagram

7. Block Diagram

7-1 Overall Block Diagram

Anynet, G-Link

HDMI/PC

IEEE1394/Anynet

Optical/Gemstar-IR

RF In(Air,Cabl_

CableCard

AlVIn 1 2 3

S-Video 1 2 3

Component 1,2

,,_ A/V Out

RS-232C In

PC/DVI Audio In

AC

SamsungElectronics 7-1

Block Diagram

7-2 Partia{ Block Diagram

7-2-1 Power Board Block Diagram

70VB : 30mA 1

T30VB : 0~SmA]

S-mute : — 6V 0~ 2mA ]

S15VB : 0-o4:0A ]

6.0V_B : 0.93~1:8A J

POWER CTL ]

7-2 SamsungElectronics

Block Diagram

7-2-2 Digital Board Block Diagram

TS_I_OATA[/:0]

CLK,VLD,SYNC

HDMI

TMDS

HDMI

TMDS

MAIN-V

L1/R1

L2?R2

Side-L/R

ScrambleTS Unscramble TS

MAIN-V

TS_2_DATA[7:0]

CLK,VLD,SYNC

COMP1

COMP2

12S_1394

12S_OUL1394

TS_A_DATA[7:0]

CLK,VLD,SYNC

CLK,VLD,SYNC

TS_B_DATA[7:0]

CLK,VLD,SYNC

suB-Y(V)/C

COMP1

NROut 161

NR In 16bit

bNle NR EN

1 6bit(4:2: 2/,CLK,HS,VS

12S 13941

NR_Out 16bit

DDR 12bit

PDIF_OUT

12S OUT

SamsungElectronics 7-3

Block Diagram

7-2-3 Analog Board Block Diagram

$1/$2/$3-Y

S1/$2/S3-C

Comb-Y-Out

Comb-C-Out

MTNR-CVBS

STNR-CVBS

DTV-CVBS

V1N2

Side-V

Main-Y-Out

Main-C-Out

Sub-YOut

Sub-COut

Side-Y/C

Main-V-Out

Sub-V-Out

Cap-V-Out

Mon-V-Out

Main-Y(V)-Out

Sub-Y-Out

Sub-C-Out

CaD-Y-Out

Mort-Mixed-V-Out

Main-Y(V)

Main-C

Sub-Y(V)

Sub-C

_ Cap-CVBS

7L__ Mon-Vout

L1/R1

L2/R2

Side-L/R

Compl-L/R

Comp2-L/R

PC-L/R

Main-L/R

MTNR-StF

STNR-StF

DVt(HDMI2)-L/R

Mon-L/Rout

Amp-ln-L/R

Gain0/Gain1

7-4 SamsungElectronics

Block Diagram

7-2-4 DMD Board Block Diagram

Lam

Power Good

Reset M

CLKRX

DATRX TMDS

RGB ODD

DMD Ctrl

Lvds Bus Master A/B

Lvds Bus Slave A/B

100Mhz

Lamp En

— Lamp Litz

— CW Index

_et

3.3 V output ]

>l VCM Actuator

=_l DB Actuator

_l Detector Circuit

[ 24 P con

SamsungElectronics 7-5

03

3

O3

[77

0

O3

,oo

KEY CONTROL

FRONT LED

FAN

ANALOG

DIGITAL

DMD

DETECT

FAN1 FAN2

POWER

SIGNAL

Dynamic Black

ACTUATOR

COLOR WHEEL

TEMP SENSOR

BALLAST

POWER

0

3

ED

r_

Go

3

CQ

m

r_

C_

o

c_

O

_D

_D

CD

O

€_

C1R

c_

€_

U_J

O

Cll

PCB Diagram

9. PCB Diagram

9-1 Power Board

9-1-1 Assy Power Board

m DCPowerSupply

(SuppliesDCpowerto the analogPCB,Theanalogboardis responsiblefor the powersupplyto the digital/DMDboard,)

9-1-2 Names & Roles of Key Parts

* CN801′ Suppliespower(DC220-400v)to the ballast

* GT801‘ Anti-lightningwire connectedto the digital board.The anti-lightningwire shouldbe installedfor safetypurposes.

* PD802S‘ Inlettypeof terminalthat is connectedto theAC powercable.

SamsungElectronics 9-1

PCB Diagram

9-1-3 Power Board Connector Pin

CN805

Connecting Power to Analog Board

Pin No…… Pin Name

1 STD5V

2 GND

3 STD5V

4 GND

5 12VA

6 GND

7 12VA

8 GND

9 33VA

10 POD-SW

CN804

Connecting Power to Analog Board

Pin Name , PIN Nol Pin Name

STD 5V

GND

33V

GND

POWER-SW

5.5VB

GND

12VB

GND

12VB

GND

GND

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

S-MUTE

S14.5V

GND

S14.5V

GND

5.5VB

GND

12VB

GND

12VB

GND

80VB

9-2 SamsungElectronics

PCB Diagram

9-2 Digital Board

9-2-1 Assy Digital Board

III All DigitalVideoProcessing

II OSD/Menu

II ResetSwitch(Resetto the CPU)

II Connectedwith PODchannelBoard.

9-2-2 Names & Roles of Key Parts

* CableCard:

CableCARDis a nationwidestandardsystemthatallowsyourlocalcable TV providerto supplyyou withan accesscard

customizedto your account.Thiscard allowsthe TV to receive,decodeandunscramblethe premiumdigitalchannelsincludedin

yourcableTV subscriptionwithoutthe use of a cable box.

* HighDefinitionMultimediaInterface:

The HDMITM (High DefinitionMultimediaInterface)supportsuncompressedstandardandhighdefinitiondigitalvideoformatsand

existingdigitalmulti-channelaudioformats.

* G-Link:

Thisjackis usedby the TV GuideOnscreensystemof the TV to controlexternalanalogdevicessuchas VCRs,cableboxes,

satellitereceivers.

* D-Net(IEEE1394):

Thesejacks allowtheTV to connectto externalIEEE 1394digitalproductsby meansof asinglecable.

SamsungElectronics 9-3

PCB Diagram

9-2-3 Digital Board Connector Pin

CN17

Pin Name ‘ I Pin Name

(Buit,ln)N N0- (Built’In)

MD2.3V

GND

MD2.3V

GND

D2.5V

GND

D4.7V

GND

D4.7V

GND

MD5.7V

GND

5VA

GND

D5.7V

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

B33V

GND

MD2.3V

GND

D2.5V

GND

D2.5V

GND

D4.7V

GND

MD5.7V

GND

5VA

GND

MD9V

CN500

Pin Name I Pin Name

(Built-In) N NO (Built-In)

MAIN_Y

MAIN_C

SUB_Y_V

SUB_C

COMPI_Y

COMPI_Pb

COMPI_Pr

COMP2_Y

COMP2_Pb

COMP2_Pr

MTNR_CVBS

MTNR_SIF

STNR_CVBS

STNR_SIF

DTV_CVBS

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

CN29

Pin Narne i [:: I Pin Name

(Built-In) EI1’_r_o (Built-In)

RS232_TxD

RS232_RxD

GND

ANYNET_TxD

ANYNET_RxD

GND

SPDIF_ATI

GND

12SCLK NTSC

GND

12S_DATA_NTSC

12SWS NTSC

12S_CLK_ATI

GND

12S_DATA_ATI

12SWS ATI

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

MICOM_TxD

MICOM_RxD

GND

SDA_A

SCL_A

GND

nRESET_S

nRESET_ANALOG

LAMP_ERROR

DDP_READY

PWRGOOD

GND

nDEBUG_EN

nRESET_CPU

nRESET_DRV

DLP_SYNCVAL

9-4 SamsungElectronics

CN26

PiNNo. PinName PiNNo.‘Pin Name PiN Nol ‘ PinName

1

2

3

4

5

6

7

8

TMDS_TX0+ 9 TMDS_TXI+ 17 TMDS_TX2+

TMDS_TX0- 10 TMDS_TX1- 18 TMDS_TX2-

GND 11 GND 19 GND

TMDS_TXC+ 12 NO 20 SYNOVAL

TMDS_TXC- 13 NO 21 nRESET_DRV

SOL_PANEL 14 NO 22 GND

SDA_PANEL 15 LAMP TXn 1 23 DDP_READY

NO 16 LAMP_RX 24 POWERGOOD

PCB Diagram

SamsungElectronics 9-5

PCB Diagram

9-3Ana(og Board

9-3-1 Assy Analog Board

Distributessupplyvoltagefromthe PowerBoardto DigitalBoardand DMDBoard.

m TransfersTurn-onCommand to Digitaland PowerBoard.

m Encompassesthe majorityof theAudioCircuit

m AnalogVideoSwitching/Processing

m AnalogAudioSwitching/Processing

m 3D CombProcessing

9-3-2 Names & Roles of Key Parts

* CN260: Connectedto the detectboard

* CN4,CN5: Connectedto the powerboard- receivesthe secondpowersourcegeneratedonthe powerboard.

* CN259: Sendsthe powersourcefromthe analogto the digitalboard.

* CN20: Thisis a controlsignalterminalthatconnectsbetweenthe analoganddigitalboards.

* CN257: Thisis an AVsignalterminalthatconnectsbetweenthe analoganddigital boards.

9-6 SamsungElectronics

9-3-3 Analog Board Connector Pin

CN259

Pin Name ‘ I Pin Name

(Buit,ln)N N0. (Built’In)

MD2.3V

GND

MD2.3V

GND

D2.5V

GND

D4.7V

GND

D4.7V

GND

MD5.7V

GND

5VA

GND

D5.7V

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

B33V

GND

MD2.3V

GND

D2.5V

GND

D2.5V

GND

D4.7V

GND

MD5.7V

GND

5VA

GND

MD9V

PCB Diagram

CN257

Pin Name IPin Name

(auittqn) NN0. (Built-In)

MAIN_Y

MAIN_C

SUB Y V

SUB_C

COMPI_Y

COMPI_Pb

COMPI_Pr

COMP2_Y

COMP2_Pb

COMP2_Pr

MTNR_CVBS

MTNR_SIF

STNR_CVBS

STNR_SIF

DTV_CVBS

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

GND

CN20

Pin Name ‘ I Pin Name

(Buit’ln)N N0. (Built’In)

RS232_TxD

RS232_RxD

GND

ANYNET_TxD

ANYNET_RxD

GND

SPDIF_ATI

GND

12S CLK NTSC

GND

12S_DATA_NTSC

12S WS NTSC

12S_CLK_ATI

GND

12S_DATA_ATI

12S WS ATI

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

MICOM_TxD

MICOM_RxD

GND

SDA_A

SCL_A

GND

nRESET_S

nRESET_ANALOG

LAMP_ERROR

DDP_READY

PWRGOOD

GND

nDEBUG_EN

nRESET_CPU

nRESET_DRV

DLP_SYNCVAL

CN4

Pin Name, PIN Nol Pin Name

5VA

GND

33VB

GND

POWER_SW

5.7VB

GND

12VB

GND

12VB

GND

GND

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

POWER_MUTE

S16VB

GND

S16VB

GND

5.7VB

GND

12VB

GND

12VB

GND

70VB

SamsungElectronics 9-7
