HARMONY-SINGER-2 QSG WW

Quick Start Guide

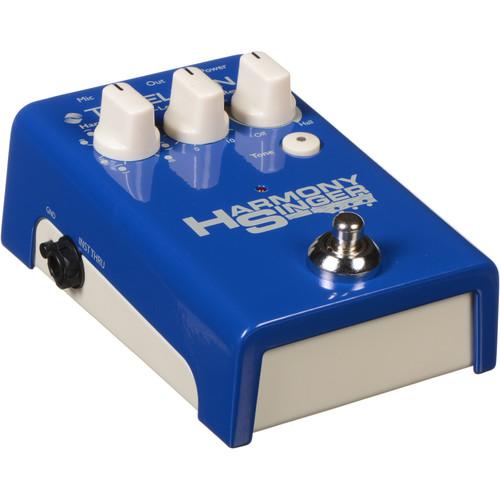

HARMONY SINGER 2
V 1.0

(1) (7)
(2) (8) (9)
(3)
(4)
(10)

(5)

(11)

(12)

(6)

(13)

Visit musictribe.com to download the full manual

2 HARMONY SINGER 2
(EN) Controls
(1) Key Selector ­ Selects a major key for pitch correction. CH setting is Harmony ­ Selects the harmonies that will be blended with your voice.
(2) Ground lift ­ If you experience buzz or hum, try pressing the ground lift button in or out.
(3) Guitar thru
(4) Level ­ Adjusts the volume of the harmonies.
(5) USB ­ Accepts micro-USB cables for firmware updates.
(6) On/Off
(7) Reverb ­ Selects the type and amount of reverb effect.
(8) Guitar input
(9) Tone ­ Engages `Adaptive Tone' for EQ, compression, de-essing and gating.
(10) Footswitch ­ Bypass the harmony effect with a single press. Holding for a few seconds bypasses harmony and reverb effects.
(11) Out ­ Connect to a mixer or powered speaker. (12) Mic ­ Connect your microphone. (13) Power ­ Connect a 9V / >300 mA power supply, such as the
PowerPlug 9 (not included). The pedal also accepts4 x AA batteries.

(ES) Controles
(1) Armonía ­ Selecciona las armonías que se mezclarán con su voz. (2) Elevación de suelo ­ Si experimenta un zumbido o zumbido, intente
presionar el botón de elevación del suelo hacia adentro o hacia afuera.
(3) Guitarra a través
(4) Nivel ­ Ajusta el volumen de las armonías.
(5) USB ­ Acepta cables micro-USB para actualizaciones de firmware.
(6) Encendido apagado
(7) Reverberación ­ Selecciona el tipo y la cantidad de efecto de reverberación.
(8) Entrada de guitarra
(9) Tono ­ Activa `Adaptive Tone' para EQ, compresión, eliminación de eses y puerta.
(10) Interruptor de pie ­ Omita el efecto de armonía con una sola pulsación. Si se mantiene pulsado durante unos segundos, se anulan los efectos de armonía y reverberación.
(11) Afuera ­ Conectar a un mezclador o altavoz autoamplificado. (12) Micrófono ­ Conecte su micrófono. (13) Poder ­ Conecte una fuente de alimentación de 9V /> 300 mA, como
el PowerPlug 9 (no incluido). El pedal también acepta 4 pilas AA.

3 HARMONY SINGER 2
(FR) Réglages
(1) Harmonie ­ Sélectionne les harmonies qui seront mélangées avec votre voix.
(2) Ascenseur au sol ­ Si vous ressentez un bourdonnement ou un bourdonnement, essayez d'appuyer sur le bouton de levage du sol.
(3) Guitare à travers
(4) Niveau ­ Règle le volume des harmonies.
(5) USB ­ Accepte les câbles micro-USB pour les mises à jour du firmware.
(6) Allumé éteint
(7) Réverbération ­ Sélectionne le type et la quantité d'effet de réverbération.
(8) Entrée guitare
(9) Ton ­ Engage `Adaptive Tone' pour l'égalisation, la compression, le de-essing et le gate
(10) Interrupteur au pied ­ Contourner l'effect d'harmonie d'une simple pression. Maintenir pendant quelques secondes contourne les effets d'harmonie et de réverbération.
(11) En dehors ­ Connectez-vous à une table de mixage ou à un hautparleur amplifié.
(12) Micro ­ Connectez votre microphone. (13) Puissance ­ Connectez une alimentation 9V /> 300 mA, telle que le
PowerPlug 9 (non inclus). La pédale accepte également 4 piles AA.

(DE) Bedienelemente
(1) Harmonie ­ Wählt die Harmonien aus, die mit Ihrer Stimme gemischt werden.
(2) Bodenlift ­ Wenn Sie ein Summen oder Brummen bemerken, versuchen Sie, den Bodenliftknopf hinein oder heraus zu drücken.
(3) Gitarre durch
(4) Niveau ­ Stellt die Lautstärke der Harmonien ein.
(5) USB ­ Akzeptiert Micro-USB-Kabel für Firmware-Updates.
(6) An aus
(7) Reverb ­ Wählt die Art und Stärke des Hall-Effekts aus.
(8) Gitarreneingang
(9) Ton ­ Aktiviert `Adaptive Tone' für EQ, Komprimierung, Deessing und Gating.
(10) Fußschalter ­ Umgehen Sie den Harmony effect mit einem einzigen Druck. Wenn Sie einige Sekunden lang gedrückt halten, werden Harmonie- und Hall-Effekte umgangen.
(11) Aus ­ Schließen Sie ein Mischpult oder einen Aktivlautsprecher an. (12) Mic ­ Schließen Sie Ihr Mikrofon an. (13) Leistung ­ Schließen Sie ein 9V /> 300 mA-Netzteil an, z. B. den
PowerPlug 9 (nicht im Lieferumfang enthalten). Das Pedal akzeptiert auch 4 x AA-Batterien.

4 HARMONY SINGER 2
(PT) Controles
(1) Harmonia ­ Seleciona as harmonias que serão combinadas com sua voz.
(2) Ground lift ­ Se sentir zumbido ou zumbido, tente pressionar o botão de levantamento do solo para dentro ou para fora.
(3) Guitar thru (4) Nível ­ Ajusta o volume das harmonias. (5) USB ­ Aceita cabos micro-USB para atualizações de firmware. (6) Ligado desligado (7) Ressonância ­ Seleciona o tipo e a quantidade de efeito
de reverberação.
(8) Entrada de guitarra (9) Tom ­ Ativa `Adaptive Tone' para EQ, compressão, de-essing e gating. (10) Pedal ­ Ignore o efeito de harmonia com um único toque. Segurar por
alguns segundos ignora os efeitos de harmonia e reverberação.
(11) Fora ­ Conecte a um mixer ou alto-falante amplificado. (12) Microfone ­ Conecte seu microfone.
(13) Poder ­ Conecte uma fonte de alimentação de 9 V /> 300 mA, como o PowerPlug 9 (não incluído). O pedal também aceita 4 pilhas AA.

(IT) Controlli
(1) Armonia ­ Seleziona le armonie che verranno miscelate con la tua voce.
(2) Ground lift ­ In caso di ronzio o ronzio, provare a premere il pulsante di sollevamento a terra dentro o fuori.
(3) Guitar thru
(4) Livello - Regola il volume delle armonie.
(5) USB ­ Accetta cavi micro-USB per gli aggiornamenti del firmware.
(6) Acceso spento
(7) Riverbero ­ Seleziona il tipo e la quantità di effetto di riverbero.
(8) Ingresso chitarra
(9) Tono ­ Attiva "Adaptive Tone" per EQ, compressione, de-essing e gating.
(10) Pedale ­ Bypassa l'effetto armonia con una singola pressione. Tenendo premuto per alcuni secondi si bypassano gli effetti di armonia e riverbero.
(11) Su ­ Collega a un mixer o un altoparlante amplificato. (12) Mic ­ Collega il tuo microfono. (13) Energia ­ Collegare un alimentatore da 9 V /> 300 mA, come
PowerPlug 9 (non incluso). Il pedale accetta anche 4 batterie AA.

5 HARMONY SINGER 2
(NL) Bediening
(1) Harmonie ­ Selecteert de harmonieën die met uw stem zullen worden gemengd.
(2) Grondlift ­ Als u zoemt of bromt, probeer dan de grondliftknop in of uit te drukken.
(3) Gitaar thru (4) Niveau ­ Past het volume van de harmonieën aan. (5) USB ­ Accepteert micro-USB-kabels voor firmware-updates. (6) Aan uit (7) Reverb ­ Selecteert het type en de hoeveelheid nagalmeffect. (8) Gitaar ingang (9) Toon ­ Activeert `Adaptive Tone' voor EQ, compressie, de-essing
en gating.
(10) Voetschakelaar ­ Omzeil het harmonie-effect met een enkele druk. Door een paar seconden ingedrukt te houden, worden harmonieen nagalmeffecten omzeild.
(11) Uit ­ Maak verbinding met een mixer of actieve luidspreker. (12) Mic ­ Sluit uw microfoon aan. (13) Vermogen ­ Sluit een 9V /> 300 mA voeding aan, zoals de PowerPlug
9 (niet inbegrepen). Het pedaal accepteert ook 4 x AA-batterijen.

(SE) Kontroller
(1) Harmoni ­ Väljer de harmonier som ska blandas med din röst. (2) Marklyft ­ Om du upplever surr eller brum, försök att trycka in eller
ut marklyftknappen.
(3) Gitarr genom (4) Nivå ­ Justerar volymen på harmonierna. (5) USB ­ Accepterar mikro-USB-kablar för firmwareuppdateringar. (6) På av (7) Reverb ­ Väljer typ och mängd reverb-effekt. (8) Gitarringång (9) Tona ­ Engagerar `Adaptive Tone' för EQ, kompression, av-essing
och gating.
(10) Pedal ­ Bypassera harmonin effect med ett enda tryck. Håller i några sekunder kringgår harmoni och reverb e_ects.
(11) Ut ­ Anslut till en mixer eller driven högtalare. (12) Mic ­ Anslut din mikrofon. (13) Kraft ­ Anslut en 9V /> 300 mA strömförsörjning, till exempel
PowerPlug 9 (ingår ej). Pedalen tar också emot 4 x AA-batterier.

6 HARMONY SINGER 2
(PL) Sterownica
(1) Harmonia ­ Wybiera harmonie, które bd mieszane z Twoim glosem.
(2) Podnonik naziemny ­ Jeli poczujesz brzczenie lub buczenie, spróbuj nacisn przycisk podnoszenia naziemnego do wewntrz lub na zewntrz.
(3) Guitar thru (4) Poziom ­ Reguluje glono harmonii. (5) USB ­ Akceptuje kable micro-USB do aktualizacji oprogramowania. (6) On / Off (7) Reverb ­ Wybiera rodzaj i ilo efektu poglosu. (8) Wejcie gitarowe (9) Ton ­ Wlcza ,,Adaptive Tone" do korekcji, kompresji, de-essingu i
bramkowania.
(10) Przelcznik nony ­ Omi efekt harmonii jednym naciniciem. Przytrzymanie przez kilka sekund omija efekty harmonii i poglosu.
(11) Na zewntrz ­ Podlcz do miksera lub zasilanego glonika.
(12) Mic ­ Podlcz mikrofon.
(13) Moc ­ Podlcz zasilacz 9 V /> 300 mA, taki jak PowerPlug 9 (brak w zestawie). Pedal obsluguje równie 4 baterie AA.

7 HARMONY SINGER 2
FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

TC Helicon
HARMONY SINGER 2

Responsible Party Name: Address:
Phone Number:

Music Tribe Commercial NV Inc.
5270 Procyon Street, Las Vegas NV 89118, United States
+1 702 800 8290

HARMONY SINGER 2
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
· Increase the separation between the equipment and receiver. · Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
· Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Important information:
Changes or modifications to the equipment not expressly approved by Music Tribe can void the user's authority to use the equipment.
Operation Ambient Temperature up to 45°C.

Hereby, Music Tribe declares that this product is in compliance with Directive 2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC.
Full text of EU DoC is available at https://community.musictribe.com/
EU Representative: Music Tribe Brands DK A/S Address: Ib Spang Olsens Gade 17, DK - 8200 Aarhus N, Denmark


